01 / PRODUCT DETAILS

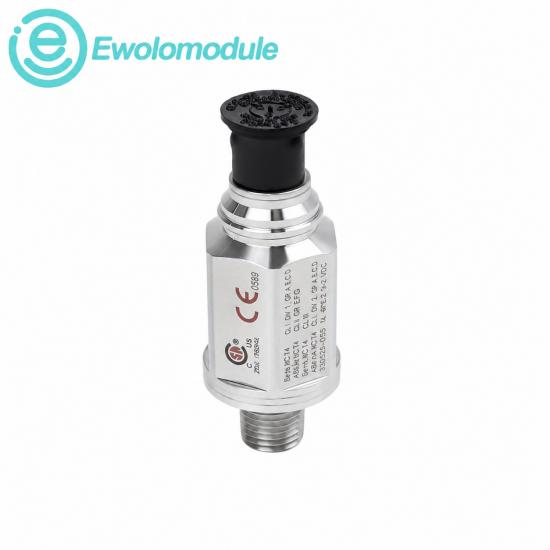

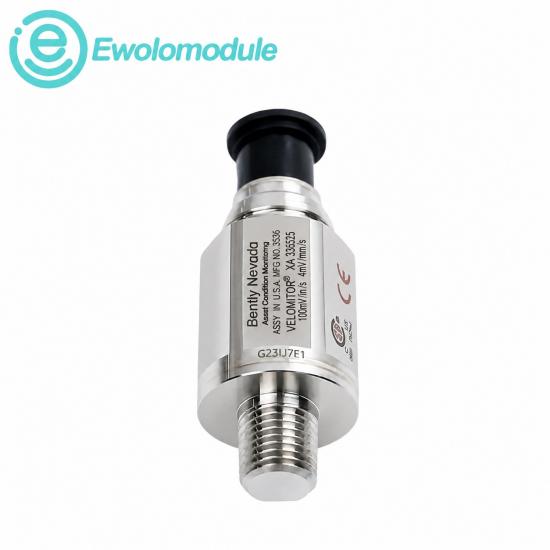

330525-00 Velomitor XA Sensor
Robust piezo-velocity sensing for demanding machinery environments.
PRODUCT IDENTITY
Bently Nevada 330525-00
The 330525-00 is a robust Velomitor XA integrating piezoelectric velocity sensor for measuring absolute vibration on bearing housings, machine casings and structures. The 00 suffix specifies that agency approval is not required.
PRODUCT SERIES
330525 Velomitor XA
OFFICIAL NAME
Velomitor XA Piezo-velocity Sensor
PRODUCT ROLE
Casing vibration sensor
Condition
New Original
Warranty
One year
In stock
2 pcs
Official source
Baker Hughes Datasheet 141633 Rev. M
02A / PRODUCT DESCRIPTION
Weather-ready velocity measurement without a separate housing
The 330525-00 is an integrating piezoelectric accelerometer with embedded electronics. It measures absolute bearing-housing, casing and structural vibration while providing an output proportional to vibration velocity.
◇━━━━◎━━━━◆━━━━◎━━━━◇
Product positioning
Rugged casing-mounted velocity sensing for demanding environments.
Suffix meaning
00 = agency approval not required.
System connection
2-pin MIL-C-26482 connector; compatible field cable runs up to 305m.
THREE PRODUCT FEATURES
316L stainless-steel case
Robust construction for harsh machinery environments.
Weatherproof connection
Connector and cable assembly support mounting without a housing.
Hermetically sealed
Supports 100% relative humidity when not submerged.
02B / DATA
Official technical register
Model
330525-00
Product family
330525 Velomitor XA
Approval option
None required
Sensor type
Integrating piezoelectric accelerometer
Sensitivity
3.94mV/mm/s ±5%
Frequency response
4.5Hz–2kHz ±3.0dB
Velocity range
1270mm/s peak
Power requirement
-22 to -30VDC; 2.5–6.0mA
Output bias
-12±3.0VDC
Operating range
-55°C to +121°C
03A / INDUSTRY APPLICATIONS
Casing-velocity data for machinery condition decisions
Bearing housings
Absolute vibration monitoring at bearing supports.
Machine casings
Velocity measurement of transmitted rotor vibration.
Harsh environments
Weather-ready installations without a separate housing.
Protection systems
Compatible signal input for machinery monitoring.
