// Basic information

// 330878-50-00

Measuring range: 0–50 mm (50 mm sensing range)

Rated power supply voltage: 10–30 V DC (low-voltage industrial power supply)

Output signal: 4–20 mA (industrial standard analog output)

Resistance: ≈ 50 Ω (output impedance)

Typical capacitance: ~69.9 pF/m (typical per meter)

Accuracy: ±0.5 % (typical)

Operating temperature: Approximately −40 °C … +85 °C (industrial range)

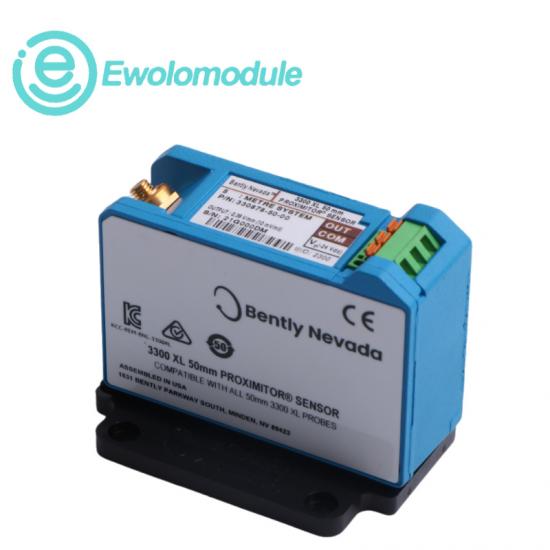

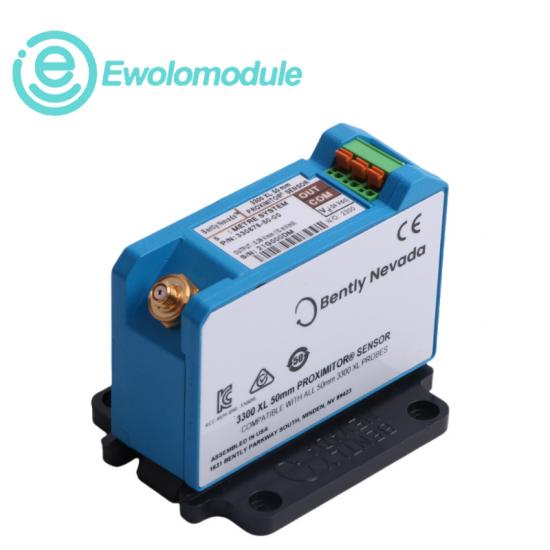

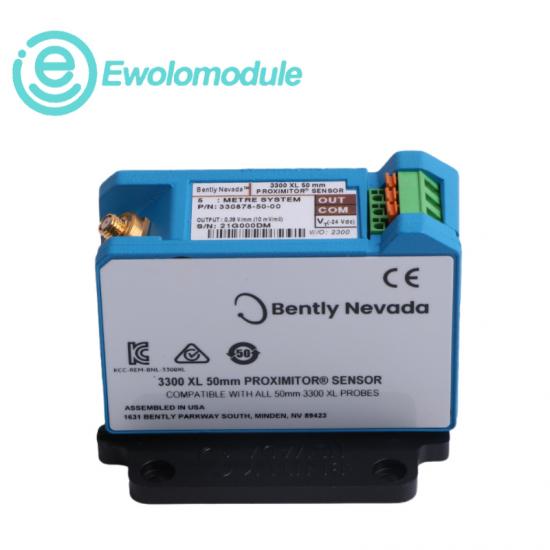

// 3300 XL 50 mm Proximity Transducer System

The 3300 XL 50 mm Transducer System consists of a separate 50 mm probe, an extension cable, and a 3300 XL 50 mm Proximitor Sensor. The large diameter coil gives this system a maximum linear range of 27.9 mm (1100 mils), the longest linear range of our eddy current transducer line. This linear range makes the 3300 XL 50 mm Transducer System ideal for measuring the differential expansion (DE) or rotor expansion (RX) of large steam turbine generators that results from the difference in growth rates between the turbine rotor and the machine stator (casing).
