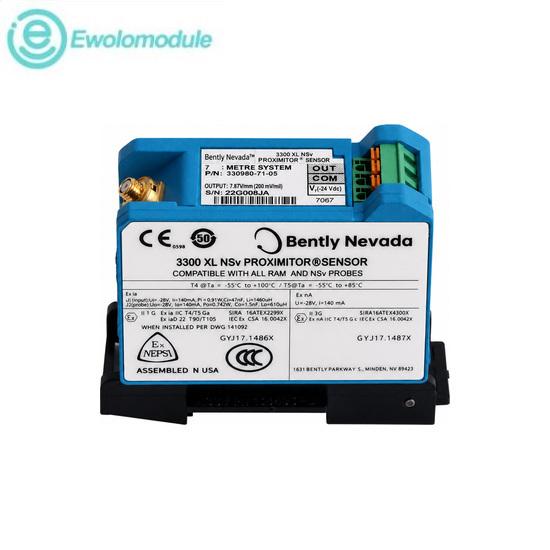

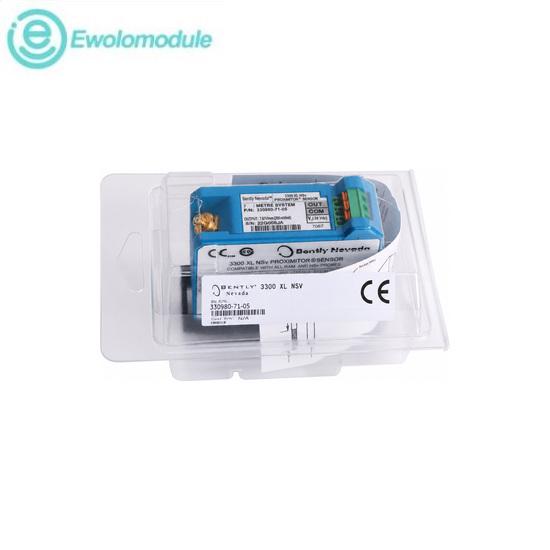

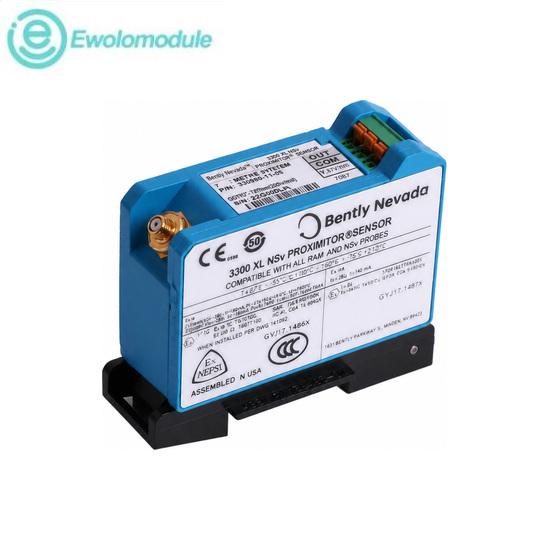

The 330980-71-BR is a 3300 XL NSv Proximitor Sensor configured for a 7.0 m system and DIN-rail mounting. The -BR country-specific approval option provides ATEX/IECEx and Brazilian INMETRO hazardous-area marking for installations in Brazil.
| System length 7.0 m |
Mounting DIN rail |
Scale factor 7.87 V/mm |
Linear range 1.5 mm |
The thin Proximitor Sensor design supports high-density DIN-rail installations. It accepts one non-contacting 3300 RAM or 3300 NSv proximity probe and extension cable. The complete probe-plus-extension-cable length must match the 7.0 m Proximitor configuration.
| AA position: 71 | BB position: BR |
| 7.0 m · DIN mount | Brazil approval option |
In the Bently Nevada ordering code, AA and BB are option fields; they are replaced by the characters that define the required configuration.
| Position | Meaning | Available codes |
|---|---|---|
| AA | Total system length and mounting option | 50 — 5.0 m, panel mount 51 — 5.0 m, DIN mount 52 — 5.0 m, no mounting hardware 70 — 7.0 m, panel mount 71 — 7.0 m, DIN mount 72 — 7.0 m, no mounting hardware |
| BB | Agency or country-specific approval option | 00 — approval not required 05 — multiple approvals BR — Brazil-specific hazardous-area marking option |
Ordering note: options 52 and 72 are supplied without a mounting pad and are intended only for spare use. Refer to the official Bently Nevada 3300 XL NSv datasheet for current ordering information.
| Part number | 330980-71-BR |
| Product | 3300 XL NSv Proximitor Sensor |
| System / mounting option 71 | 7.0 m system length, DIN mount |
| Country approval option BR | ATEX/IECEx plus Brazilian INMETRO hazardous-area marking |
| Input | One non-contacting 3300 RAM or 3300 NSv probe and extension cable |
| Power | -17.5 to -26 Vdc without barriers, 12 mA maximum; -23 to -26 Vdc with barriers |
| Incremental scale factor | 7.87 V/mm (200 mV/mil), +12.5%/-20% |
| Linear range / gap | 1.5 mm (60 mils); recommended gap 1.0 mm (40 mils) |
| Frequency response | 0 to 10 kHz, +0/-3 dB typical, with up to 305 m field wiring |
| Sensor temperature | Operating -52°C to +100°C; storage -52°C to +105°C |
| Material / typical weight | A380 aluminum / 0.255 kg |
A: No. Option 05 is the multi-approval label, while BR is the Brazil country-specific approval option. Bently Nevada’s marking guidance states that products installed in Brazilian hazardous areas must be ordered with -BR. Confirm the destination and certification requirement before substituting.
A: No. The probe length plus extension-cable length must equal the Proximitor Sensor’s total system length. Option 71 is a 7.0 m system, so the connected components must total 7.0 m.
A: Without barriers the official range is -17.5 to -26 Vdc at 12 mA maximum. With barriers it is -23 to -26 Vdc; operating at a voltage more positive than -23.5 Vdc can reduce linear range.
A: Not automatically. Standard units are calibrated to the manufacturer’s AISI 4140 steel target. System accuracy and interchangeability specifications do not apply to a different target material unless that calibration was ordered.
A: Provide the complete probe part number, extension-cable part number and length, monitor type, target material, required hazardous-area marking, and whether the installation uses zener barriers or galvanic isolators.
