Product category: Bently Nevada 3500 Series Machinery Protection System

Product status: New and Original

Tariff code: 85371091

Product description:

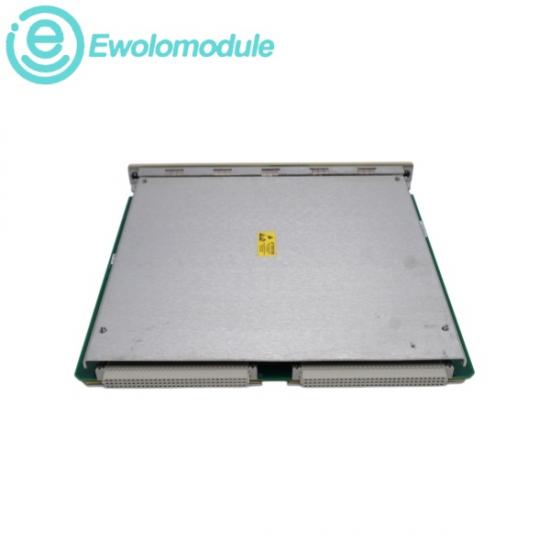

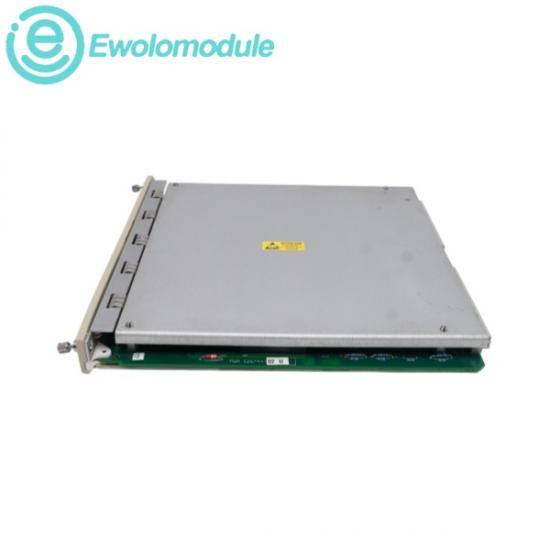

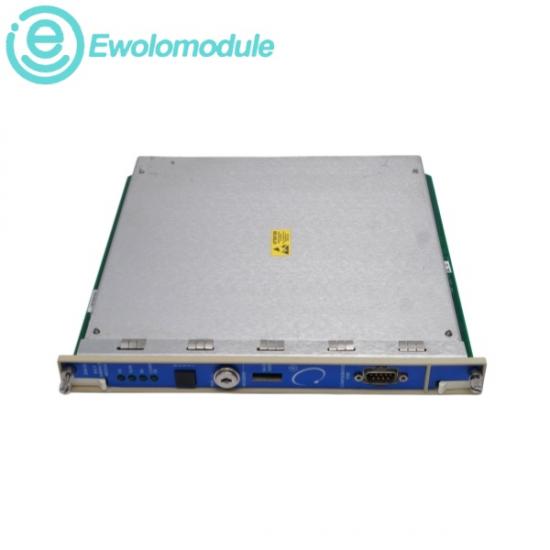

Bently Nevada 3500/20 125744-02 Rack Interface Module

The Bently Nevada 3500/20 125744-02 is a vital machinery protection rack interface module. Coordinating system configurations, this Bently Nevada 3500/20 125744-02 delivers real-time data diagnostics and clock synchronization across the framework.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

>>>Product Overview

The Bently Nevada 3500/20 125744-02 is a Standard Rack Interface Module (RIM) that serves as the central communication hub and primary interface for the 3500 Series machinery protection system. Installed in rack Slot 1 (next to the power supplies), it supports the proprietary Bently Nevada protocol for rack configuration and machinery data retrieval. It gathers static and dynamic configuration parameters, coordinates rack-wide clock synchronization, manages the system event list, and drives the central OK relays to ensure continuous, fail-safe machinery protection across high-speed rotating assets.

➟ Power Supply Inputs: Accepting regulated +5V DC, +24V DC, and -24V DC

➟ Current & Power Consumption: Draws approximately 0.87 A (870 mA) typical continuous current

➟ Electrical Isolation: Features full 500V DC galvanic isolation

➟ Operating Ambient Temperature: Formulated for continuous high-load machine environments spanning -30 °C to +65 °C

➟ Storage Temperature Envelope: Endures non-operational transport and warehouse environments from -40 °C to +85 °C

➟ Relative Humidity Limits: Operates safely within a 5% to 95% non-condensing atmosphere

>>>Product Applications

Central Rack Coordination:	Serves as the master processing bridge that continuously updates and manages configuration parameters for all adjacent vibration or position monitoring modules.
System 1 Asset Integration:	Establishes the real-time data streaming path to pipe continuous machine status logs into Bently Nevada System 1 diagnostic software.
Master Clock Synchronization:	Automatically matches timestamps across all channels within the chassis to ensure millisecond-accurate fault-sequence and trip recording.
Emergency Safety Tripping:	Controls the global Rack OK circuit, providing a dry contact connection to immediately alert the plant's DCS if an internal system fault is detected.

>>>Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
