BENTLY

40M

3500

FRONT MACHINERY MONITOR

176449-01

Proximitor Monitor

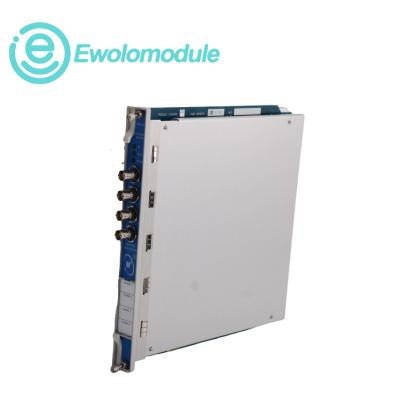

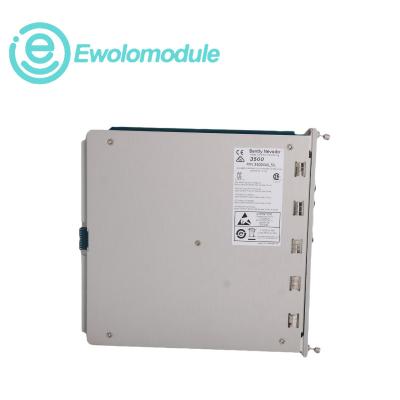

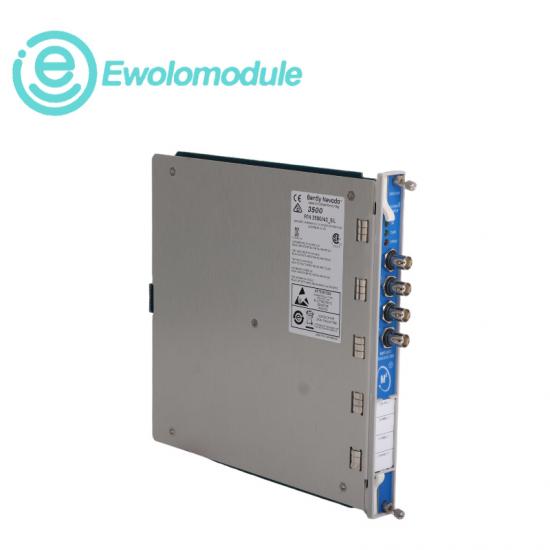

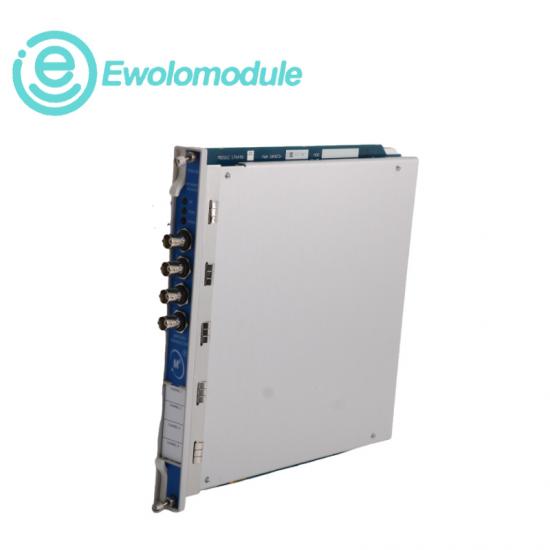

Bently Nevada 3500/40M · New Original

SYSTEM ROLE

Front machinery monitor

CHANNELS

Four monitoring channels

ORDER CHECK

Match the I/O termination option

SYSTEM DECISION CANVAS

How this part fits the rack

INPUT FIELD

Sensor channels

The paired I/O module routes transducer signals into the front monitor.

MEASUREMENT FIELD

Signal conditioning

The monitor calculates configured machinery-protection measurements.

ALARM FIELD

Setpoint evaluation

Alert and Danger logic is applied through Rack Configuration Software.

RACK FIELD

System response

Results are shared with the 3500 rack for indication, logic and protection.

Identification rule: quote the complete model 3500/40M 176449-01 and the paired front or rear module number.

FIELD NOTE

40M

Official technical profile

DATASHEET 141535 REV. R

3500/40M 176449-01

Official spare description	3500/40M Proximitor Monitor
Channels	Four channels
Supported measurements	Radial vibration, thrust, differential expansion, eccentricity and REBAM
Accuracy	±0.33% of full scale typical; ±1% maximum
Alarm setpoints	Alert for each value; Danger for any two values
Operating temperature	−30 to +65 °C with standard I/O
Physical	241.3 × 24.4 × 241.8 mm; 0.91 kg
Rack location	One full-height front slot

BUYER ALERTMatch the front monitor with the correct internal, external or barrier I/O module.

RACK-SIDE DIRECTORY

Twenty Bently Nevada parts worth cross-checking

A compact sourcing index for relay, monitor and I/O requirements.

01	149986-02	02	125720-02
03	149986-01	04	149992-01
05	125680-01	06	126615-01
07	140734-01	08	176449-01
09	128229-01	10	128240-01
11	135489-01	12	135489-03
13	176449-02	14	176449-03
15	140072-04	16	176449-04
17	133442-01	18	176449-06
19	125744-02	20	138607-01

Send the installed part number and nameplate photo so termination type and approval option can be checked before quotation.

PROCUREMENT DESK NOTES

Six checks for 176449-01

Is 176449-01 the front monitor? Yes. It is the official 3500/40M Proximitor Monitor spare.		Which rear I/O options can be paired? Internal, external or internal-barrier I/O options exist; confirm the installed part.

How many channels are available? The monitor provides four channels.		Can it monitor more than radial vibration? Yes. Family functions include thrust, differential expansion, eccentricity and REBAM.

What rack slot does it use? One full-height front slot.		What should be sent for a replacement quote? Send the front and rear module numbers plus firmware and approval information.
