MONITOR PROFILE

01 / PRODUCT DETAILS

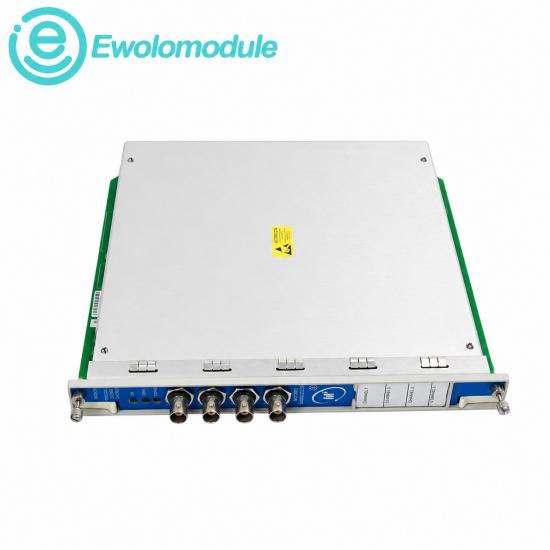

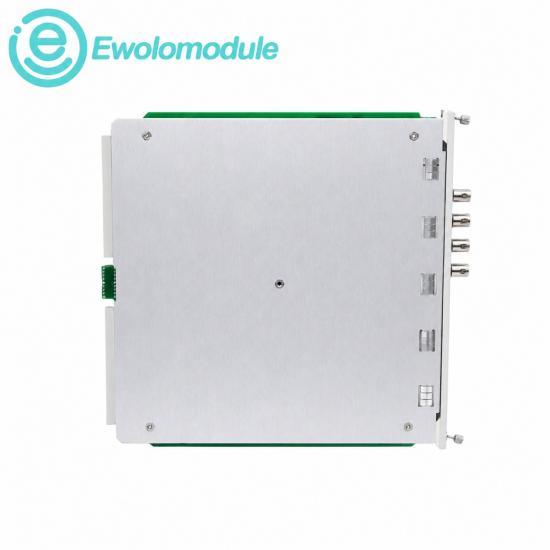

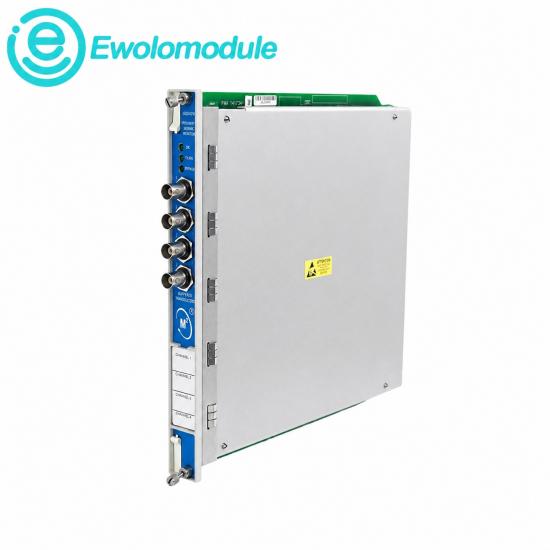

3500/42-01-00 seismic monitor

Four programmable channels for proximity and seismic protection measurements.

PRODUCT IDENTITY

Bently Nevada 3500/42-01-00

A 3500/42M four-channel monitor ordered with the 128229-01 Prox/Seismic I/O module using internal terminations and no hazardous-area approval option.

BRAND

Bently Nevada

PRODUCT SERIES

3500 Machinery Protection System

OFFICIAL NAME

3500/42M Proximitor Seismic Monitor

PRODUCT ROLE

Four-channel machinery monitor

Condition
New Original

Warranty
One year

In stock
1 pcs

Official source
Baker Hughes Datasheet 143694 Rev. AE

02A / PRODUCT DESCRIPTION

Four-channel proximity and seismic monitoring for 3500 racks

The 3500/42-01-00 accepts inputs from proximity and seismic transducers, conditions the signals, compares measurements with alarm setpoints and provides machinery-protection status to the 3500 rack.

◇━━━━◎━━━━◆━━━━◎━━━━◇

Product positioning
Continuous machinery protection and condition monitoring.

Suffix meaning
01 = internal Prox/Seismic I/O; 00 = no approval.

System connection
128229-01 I/O module with internal terminations.

THREE PRODUCT FEATURES

Four channels
Each channel pair is independently programmable.

Flexible measurements
Supports proximity and seismic transducer inputs.

Rack integration
Occupies one full-height front and rear slot.

02B / DATA

Official technical register

Model

3500/42-01-00

Product family

3500/42M

Channels

Four

I/O option

I/O part number

128229-01

Termination

Internal

Approval option

None

Power consumption

7.7W typical

Operating range

-30°C to +65°C

Humidity

95% noncondensing

03A / INDUSTRY APPLICATIONS

Continuous protection of critical rotating machinery

Radial vibration
Proximity-based shaft monitoring.

Seismic vibration
Velocity and acceleration channels.

Thrust position
Axial displacement protection.

Gas turbines
Tracking and band-pass measurements.
