Δ About the Product

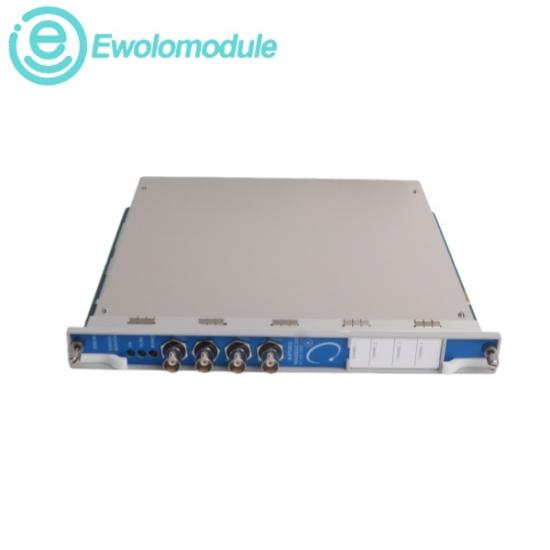

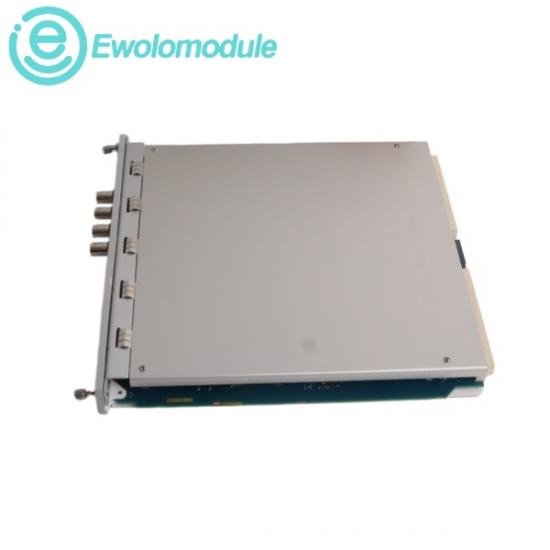

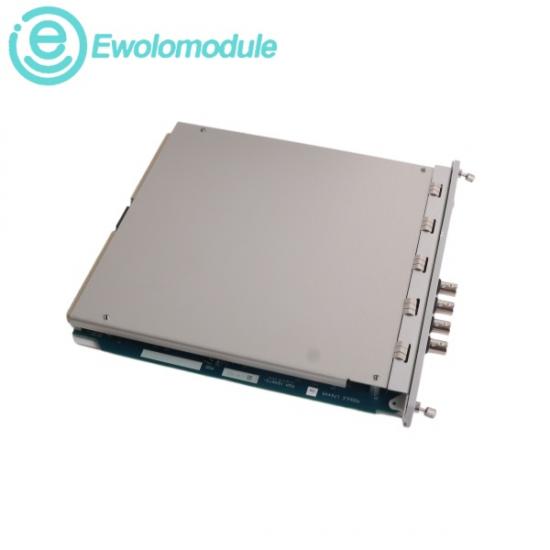

The Bently Nevada 3500/45 176449-04 is a 4-channel, 3500 series position monitor module used for continuous machinery protection. It provides precise measurement and monitoring of shaft position and displacement in critical rotating equipment by accepting inputs from proximity transducers, Rotary Position Transducers (RPTs), DC/AC Linear Variable Differential Transformers (LVDTs), and rotary potentiometers . The monitor conditions the input signals and compares them against user-programmable alarm setpoints to provide machinery protection and essential operational information .

◦ Frequency Range: 0.1 Hz to 10 kHz

◦ Accuracy: ±0.2% of full scale

◦ Power Supply: 5 VDC, ±15 VDC

◦ Keyphasor Support: 0.5 V to 25 V peak-to-peak, 1 Hz to 20 kHz

◦ Operating Temperature: 0°C to +60°C (32°F to +140°F)

◦ Storage Temperature: –40°C to +85°C

◦ Relative Humidity: Up to 95% RH (non-condensing)

Δ Real-World Applications

1) Turbine Monitoring: Measuring axial position and differential expansion in steam and gas turbines.

2) Compressor Protection: Monitoring shaft position and vibration in large industrial compressors.

3) Keyphasor Integration: Providing precise rotational reference data for synchronous data acquisition, order tracking, and phase analysis.

4) Machinery Protection: Continuously comparing monitored parameters against configured alarm setpoints to drive alarms.
