| EW / INDUSTRIAL EQUIPMENT DOSSIER | FILE STATUS · READY TO QUOTE |
MODEL INDEX / 176449-08

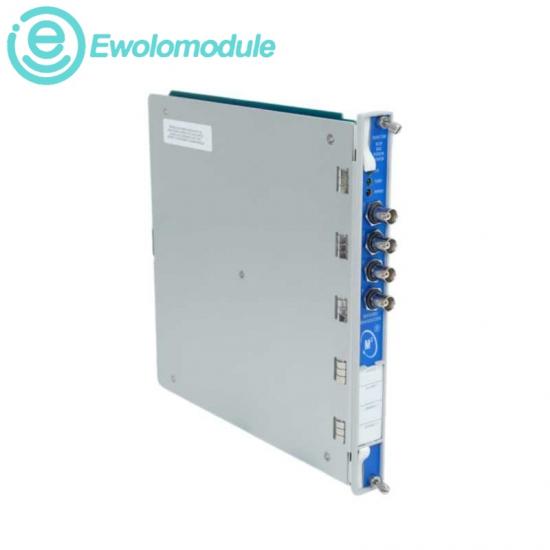

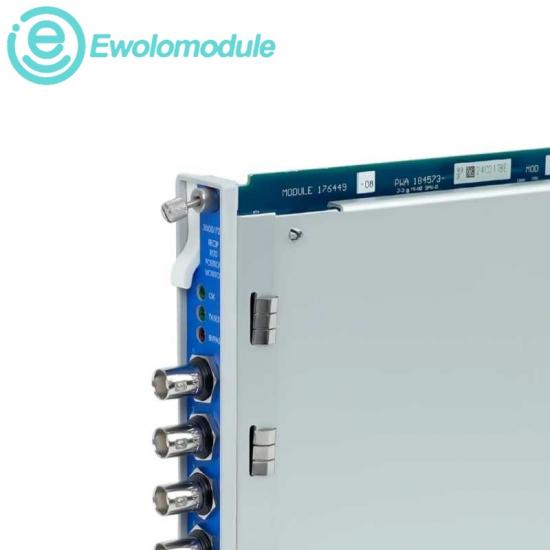

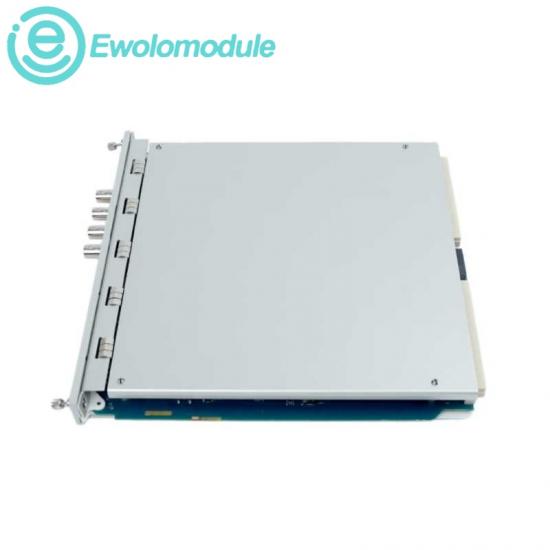

3500/72M 176449-08Bently Nevada 3500/72M 176449-08 Recip Rod Position Monitor |
|
| 01
Proximity probe
|
02
Rod-position processing
|
03
Machine-cycle context
|
04
Alarm protection
|
|
PROCUREMENT FIT CHECK
|
What this part does
A four-channel reciprocating-compressor monitor that processes proximity-probe signals for rod position, rod drop and related position measurements.
|
| 02 |
CONFIGURATION LEDGER
Technical identifiers for a clean match |
| 01 | Platform | Bently Nevada 3500 Series |
| 02 | Channels | Four |
| 03 | Input | Bently Nevada proximity transducer signals |
| 04 | Measurement options | Rod Position, Rod Position 2, Rod Drop and Hyper Compressor |
| 05 | Typical power | 7.7 W |
| 06 | Alarm functions | User-programmable Alert and Danger setpoints |
| 07 | Module size | 241.3 × 24.4 × 241.8 mm |
| 08 | Approx. weight | 0.91 kg |
| Use these values for identification and procurement. Final installation must follow the applicable Bently Nevada manual, rack configuration and site safety procedure. |
| PART NUMBER MATRIX / 20 BENTLY NEVADA OPTIONS | 03 |
| 3500/32M 125720-01 | 3500/33 149986-01 | 3500/40M 125680-01 | 3500/40M 126615-01 |
| 3500/42M 128229-01 | 3500/42M 128240-01 | 3500/42M 176449-02 | 3500/44M-06-00 |
| 3500/45-02-00 | 3500/46M 176449-06 | 3500/50M 133442-01 | 3500/53 133388-01 |
| 3500/61 163179-02 | 3500/62 | 3500/64M | 3500/70M 176449-09 |
| 3500/72M 176449-08 | 3500/77M 140734-07 | 3500/77M 143729-01 | 3500/92 136180-01 |
| 04 |
BUYER FAQ / 3500/72M 176449-08
Questions to close before the purchase order
|
| Q01 |
What installation information is critical for rod-drop monitoring?
State probe location, target geometry, rod material, initial gap and the reference position used by the current configuration.
|
| Q02 |
Can the monitor correct a poorly gapped probe?
No. Mechanical installation and probe gap must be correct before software scaling is meaningful.
|
| Q03 |
Why should the existing Keyphasor relationship be documented?
Cycle reference may be required to interpret rod position relative to crank angle.
|
| Q04 |
What distinguishes rod position from rod drop?
Rod position tracks movement relative to the probe; rod-drop logic evaluates the change from an established reference.
|
| Q05 |
What should be checked when moving a channel to new hardware?
Verify transducer system length, sensitivity, scale factor, alarms and the configured measurement mode.
|
| Q06 |
Can the module be quoted without the rear I/O part number?
A preliminary quote is possible, but a confirmed match requires the installed I/O module and rack configuration.
|
|
