| EW / INDUSTRIAL EQUIPMENT DOSSIER | FILE STATUS · READY TO QUOTE |
MODEL INDEX / 143729-01

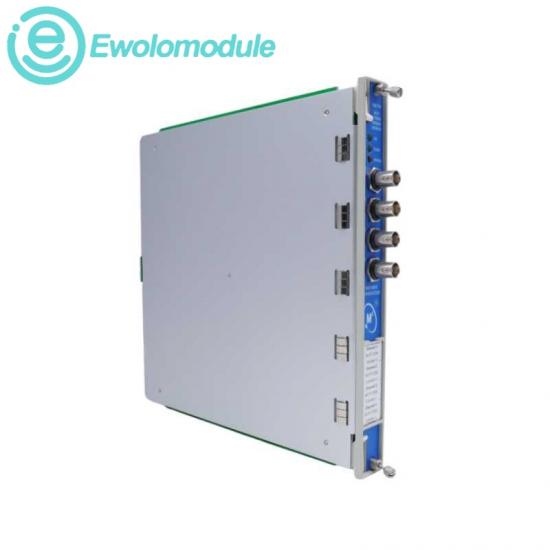

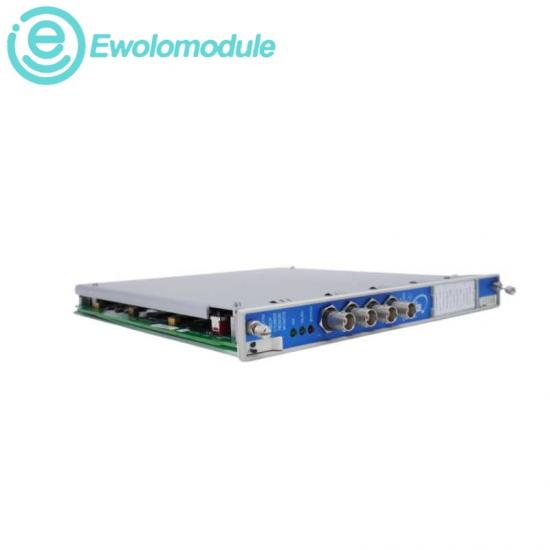

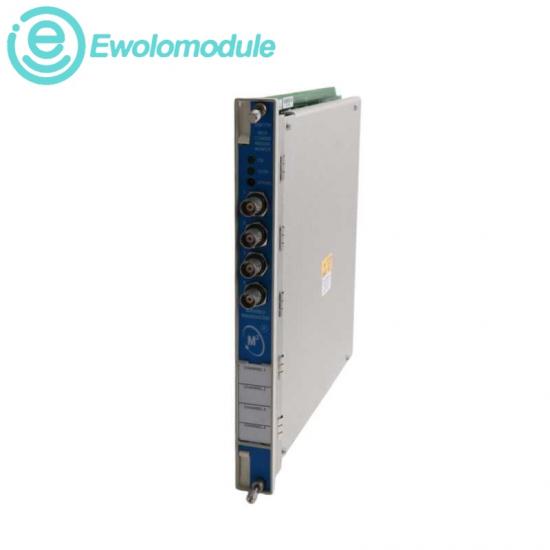

3500/77M 143729-01Bently Nevada 3500/77M 143729-01 Cylinder Pressure I/O Module |
|
| 01
Third-party pressure sensor
|
02
Internal termination
|
03
3500/77M monitor
|
04
Cylinder protection channel
|
|
PROCUREMENT FIT CHECK
|
What this part does
A rear I/O module with internal terminations for the 3500/77M cylinder-pressure monitor and Bently Nevada-approved third-party pressure transducers.
|
| 02 |
CONFIGURATION LEDGER
Technical identifiers for a clean match |
| 01 | Platform | Bently Nevada 3500 Series |
| 02 | Function | Cylinder-pressure field I/O |
| 03 | Termination style | Internal terminations |
| 04 | Sensor support | Bently Nevada-approved third-party pressure transducers |
| 05 | Compatible monitor | 3500/77M Recip Cylinder Pressure Monitor |
| 06 | Mounting | Rear rack I/O position |
| 07 | Module size | 241.3 × 24.4 × 99.1 mm |
| 08 | Approx. weight | 0.20 kg |
| Use these values for identification and procurement. Final installation must follow the applicable Bently Nevada manual, rack configuration and site safety procedure. |
| PART NUMBER MATRIX / 20 BENTLY NEVADA OPTIONS | 03 |
| 3500/32M 125720-01 | 3500/33 149986-01 | 3500/40M 125680-01 | 3500/40M 126615-01 |
| 3500/42M 128229-01 | 3500/42M 128240-01 | 3500/42M 176449-02 | 3500/44M-06-00 |
| 3500/45-02-00 | 3500/46M 176449-06 | 3500/50M 133442-01 | 3500/53 133388-01 |
| 3500/61 163179-02 | 3500/62 | 3500/64M | 3500/70M 176449-09 |
| 3500/72M 176449-08 | 3500/77M 140734-07 | 3500/77M 143729-01 | 3500/92 136180-01 |
| 04 |
BUYER FAQ / 3500/77M 143729-01
Questions to close before the purchase order
|
| Q01 |
Does 143729-01 include the front 3500/77M monitor?
No. It is the rear I/O module only.
|
| Q02 |
Why does approved third-party sensor status matter?
Input characteristics and protection performance depend on using a supported pressure transducer and correct configuration.
|
| Q03 |
What does internal termination mean for procurement?
Field wiring lands on the rear module arrangement specified for this variant; compare it with the installed terminal design.
|
| Q04 |
Can it replace an external-termination I/O module without rewiring?
Not necessarily. Confirm the exact existing I/O part number and terminal arrangement first.
|
| Q05 |
What photos are most useful for a match?
Provide the front monitor label, rear I/O label, terminal block and complete rack slot view.
|
| Q06 |
What is the best acceptance check after installation?
Verify sensor bias, pressure waveform, channel scaling, alarms and wiring continuity against the pre-outage baseline.
|
|
