FIELD FILE
01
|
BENTLY NEVADA / PRODUCT IDENTIFICATION

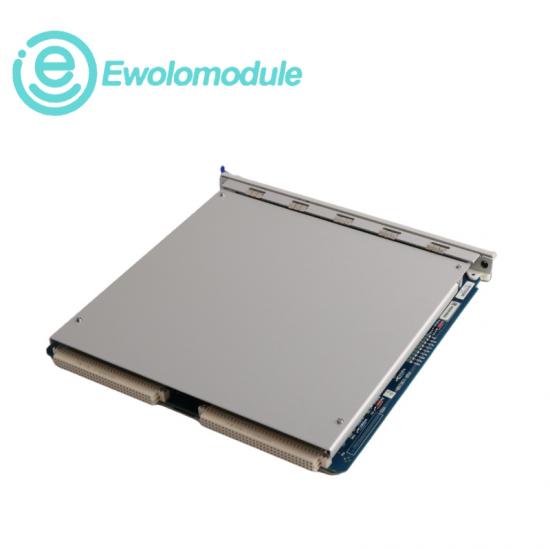

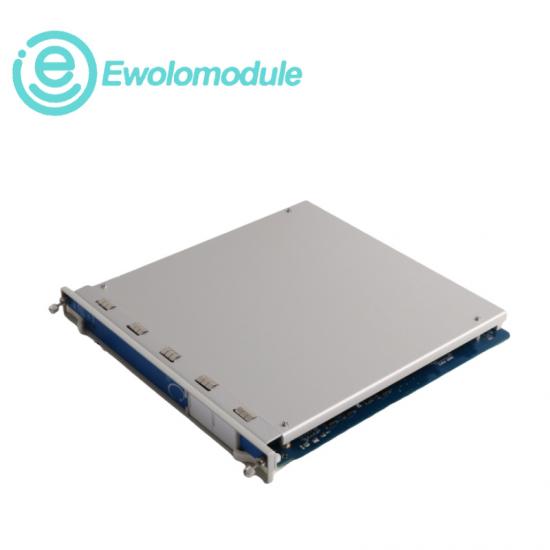

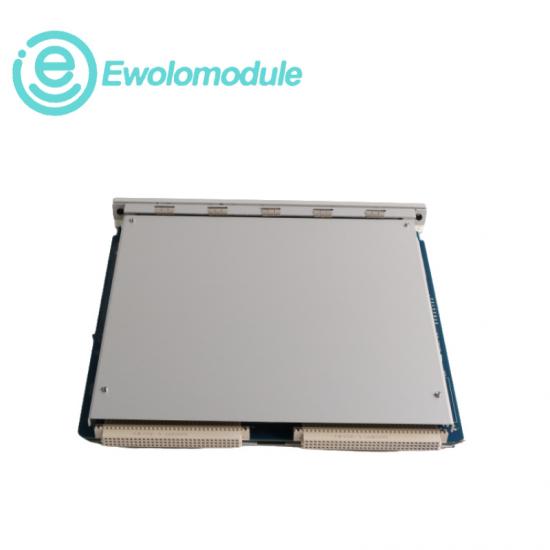

3500/92 136180-01Bently Nevada 3500/92 136180-01 Communication Gateway Module
|
|
MAKER
Bently Nevada
|
ORDER ITEM
136180-01
|
EQUIPMENT CLASS
Communication Gateway Module
|
|
USE CASE
Read the whole suffix.
|
The main 3500/92 gateway module that exports rack values and statuses to control and automation systems through serial and Ethernet communication options.
Use the complete model code when requesting availability, condition, lead time and shipping information.
|
|
MEASURED / ORDER-CODE DATA
Technical register
|
02
INDEX
|
| S01 | PLATFORM | Bently Nevada 3500 Series |
| S02 | FUNCTION | Communication gateway main module |
| S03 | PROTOCOLS | Bently Nevada host protocol, Modbus RTU and Modbus/TCP |
| S04 | ETHERNET | 10 Mbps, IEEE 802.3, RJ45 10BASE-T |
| S05 | UPDATE TIME | Not more than 1 second for all rack modules |
| S06 | OPERATING RANGE | -30 °C to +65 °C |
| S07 | DIMENSIONS | 241 × 24.4 × 242 mm |
| S08 | WEIGHT | 0.82 kg |
| PROCUREMENT FLAG | Host, configuration and data-acquisition systems |
|
TWIN-SIGNAL RAIL
20
|
BENTLY NEVADA / ALTERNATIVE MODEL RUN
Signals to compare before ordering |
03
TRACK
|
| 01 | 330180-90-CN | 11 | 3500/22M 146031-01 | |
| 02 | 330180-91-00 | 12 | 3500/22M 146031-02 | |
| 03 | 330180-91-05 | 13 | 3500/22M 288055-01 | |
| 04 | 106M1081-01 | 14 | 3500/25 125800-01 | |
| 05 | 125840-01 | 15 | 3500/25 125800-02 | |
| 06 | 125840-02 | 16 | 3500/32M 125720-01 | |
| 07 | 127610-01 | 17 | 3500/33 149986-01 | |
| 08 | 3500/20 125744-02 | 18 | 3500/40M 125680-01 | |
| 09 | 3500/20 125768-01 | 19 | 3500/42M 128229-01 | |
| 10 | 3500/22M 138607-01 | 20 | 3500/50M 133442-01 |
|
BUYER VERIFICATION TIMELINE
Six decisions for 3500/92 136180-01
|
Q / A
FOLLOW THE LINE
|
|
CHECKPOINT 01
Is 136180-01 a complete communications assembly?
|
The main module still requires the correct rear I/O module for the chosen serial or Ethernet interface.
|
|
|
State Modbus RTU, Modbus/TCP or Bently Nevada host communication and identify the host system.
|
CHECKPOINT 02
Which protocol should be named in the inquiry?
|
|
|
CHECKPOINT 03
Can it communicate over Ethernet and serial?
|
The gateway supports both families, but capability depends on the installed I/O module and configuration.
|
|
|
Older gateway modules may require a firmware upgrade to communicate with newer I/O modules.
|
CHECKPOINT 04
Why does firmware revision matter?
|
|
|
CHECKPOINT 05
What register information should a buyer preserve?
|
Export the configurable Modbus register map and document byte order, addressing and polling assumptions.
|
|
|
Verify module status, network link, register values, timestamps, alarm status and host-system polling.
|
CHECKPOINT 06
What should be tested after replacement?
|
|
