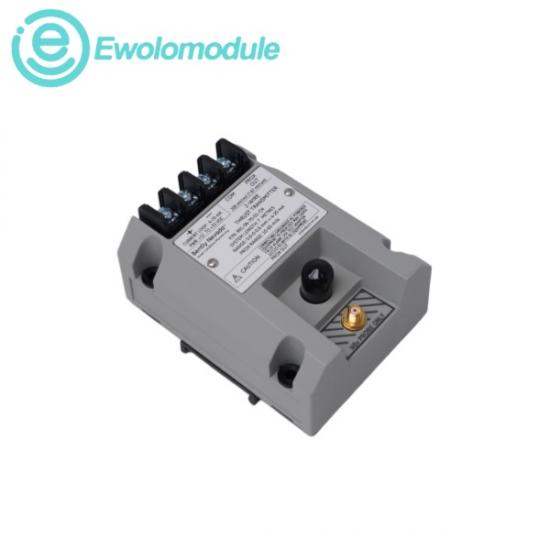

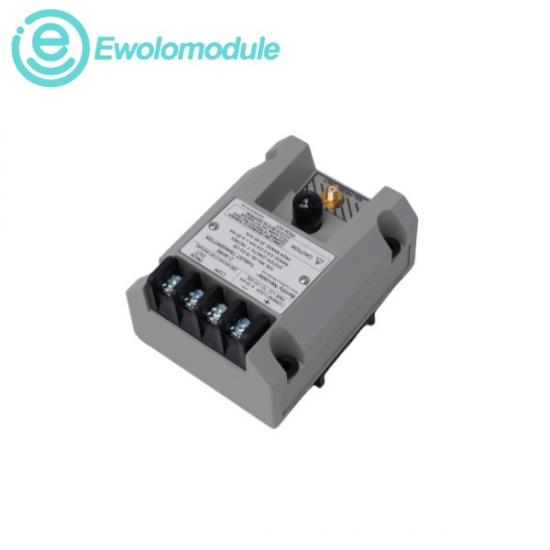

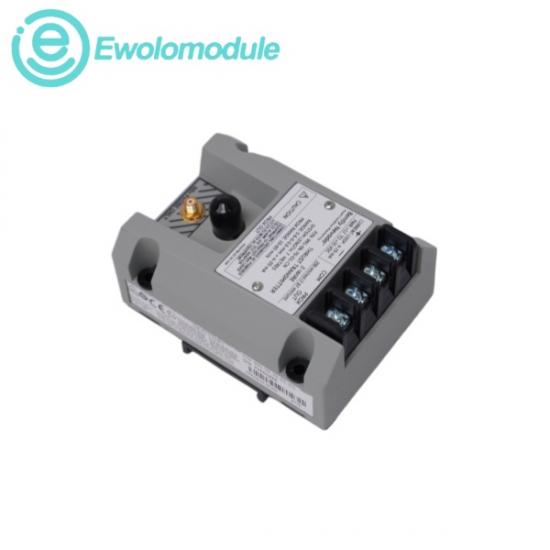

991 Thrust Transmitter
991-06-70-01-CN
Full-scale:0.6-0-0.6 mm
System Length:7.0 meters (23.0 feet)
Mounting: 35 mm DIN-rail clips
Agency Approval: Approvals country specific

Description

The 991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system.

The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate engineering units proportional to the shaft’s axial position1, and provides it as a 4 to 20 mA industry-standard signal for input to the control system where machinery protection alarming and logic occurs.

991 Thrust Transmitter Loop Wiring Connections Specifications

1. To test adapter 122115-01
2. Receiver
3. Cable shield
4. Transmitter
5. Extension cable
6. Recommended wiring is shielded, twisted-pair, 1.0 mm (18 AWG) (part number 02173006).
Maximum length is 13 km (8 miles).
7. Power supply, VPS = 17 to 35 Vdc
8. Common (ground)
9. Probe
