BENTLY NEVADA
WIRELESS CONDITION MONITORING
OFFICIAL · 125M5237 REV. V
ISA100 · TRI-AXIAL SENSOR

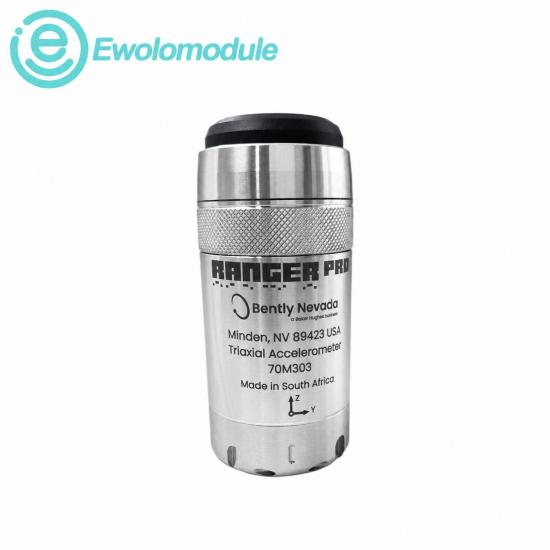

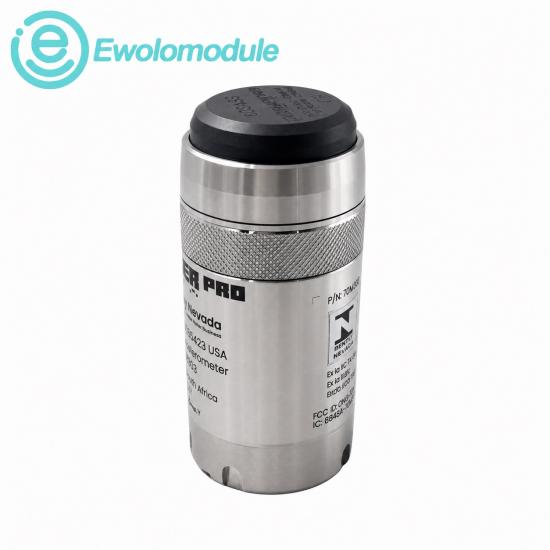

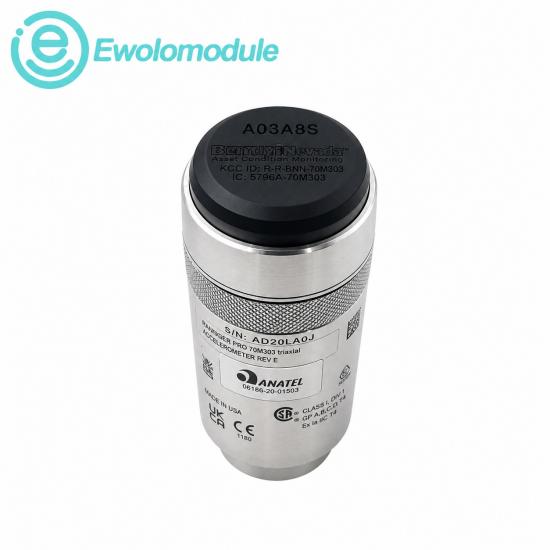

Ranger Pro 70M303
ISA100 Tri-Axial Wireless Condition Monitoring Sensor
Tri-axial vibration and surface-temperature monitoring for rotating assets connected through an ISA100.11a industrial wireless network.
| CONDITIONNew Original |
WARRANTYOne year |
IN STOCK1 unit |
PRODUCT SERIESRanger Pro |
02
ENGINEERING PROFILE
Tri-axial sensing, ISA100 connectivity and configurable ordering
The Ranger Pro 70M303 measures acceleration and derived velocity in the X, Y and Z axes while its integral sensor tracks surface temperature. Diagnostic data is transmitted through an ISA100.11a gateway for use in System 1 condition monitoring.
OFFICIAL ORDERING STRUCTURE · 70M303-AA-BB-CC-DD
70M303Sensor family
AAMounting
BBRadio
CCBattery
DDApproval
Three-axis coverage
Acceleration and velocity across X, Y and Z.
Remote deployment
Wireless monitoring where cabling is difficult.
System integration
ISA100 gateway connection to System 1.
OFFICIAL TECHNICAL DATA
Manufacturer
Bently Nevada
Base order number
70M303-AA-BB-CC-DD
Wireless network
ISA100.11a
Measurement axes
X, Y and Z
Acceleration range
±20g peak
Acceleration frequency
Z: 5Hz–10kHz; X/Y: 5Hz–4kHz
Temperature range
-40°C to +120°C
Wireless range
150m to access point; 100m sensor to sensor
Battery life
Up to 5 years, configuration dependent
Official function
Tri-axial wireless accelerometer with integral temperature sensor
03A · APPLICATION ROUTE
Wireless coverage for rotating machinery
Vibration + temperature · remote collection
MotorsTrend bearing vibration
PumpsMonitor bearings remotely
FansDetect imbalance and wear
GearboxesCorrelate vibration and heat
