Fast Details
| Brand name | Bently Nevada | Type | Electric Drive |
| Model | TK3-2E | Origin | United States |
| Warranty period | 1 year | Condition | 100% original brand |
| Minimum order quantity | 1 piece | Payment method | T/T |
| Delivery time | 1-3 days | Quality | 100% original and 100% brand |
Product details
| Vibration simulation (“wobulator”) amplitude range | 50 µm to 254 µm (approximately 2 mils to 10 mils) peak-to-peak. |
| Spindle micrometers/moving device travel | 0 - 25.4 mm (0 - 1000 mils) |
| Power requirements (electric drive version) | 95-125 Vac, 50/60 Hz, 1 A minimum; or 190-250 Vac, 50/60 Hz, 1 A minimum. |
| Air drive version (reference) | ≤ 90 psi (6.2 bar) maximum (although the TK3-2E is typically electric drive). |
| Ambient conditions (operation) | Operating temperature: 0 °C to 50 °C (32 °F to 122 °F) / recommended maximum for continuous use: approximately 40 °C. |
| Environmental Conditions (Storage) | Storage Temperature: -18 °C to 65 °C (0 °F to 150 °F) |
| Humidity/Protection Rating | Maximum humidity 95% non-condensing; dustproof/waterproof rating up to IP54 when closed. |
| Maximum Operating Speed | 0 to 5000 cpm ±1000 cpm (electric/air-driven compatible) |
| Probe Compatibility Diameter Range | Universal probe mount compatible with probe diameters from 5 mm to 19 mm (0.197″ to ~0.75″). |
TK-3 Series

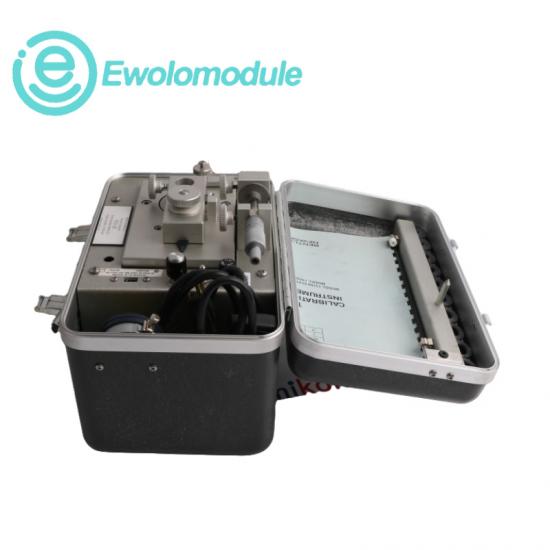

The TK-3 series Electric Drive is a calibration tool from Bently Nevada for rotating machinery proximity probe systems and vibration monitoring systems. Typical models include the BentlyNevada TK-3E (Electric Drive) or its predecessor, the BentlyNevada TK-3E (Proximity System Test Kit). This series simulates shaft vibration and shaft diameter position changes to verify the performance of proximity probe systems (Proximitor/Proximity Probe) and related monitoring instruments.
➫Key functions include: Moving a target closer to/away from the probe detection position monitoring link using a spindle micrometer.
➫Generating mechanical vibrations of known amplitude using a motor-driven wobble-plate, with the probe mounted on the wobble structure, to calibrate the vibration monitor output.
➫The system supports universal mounting across a wide range of probe diameters and facilitates field calibration, maintenance, and acceptance testing.
In short: The TK-3 series Electric Drive—an electrically driven shaft vibration and position simulation calibrator for verifying the accuracy and reliability of proximity probe systems and vibration monitoring links.
