EMERSON · DELTAV M-SERIES
ISOLATED DIGITAL ACQUISITION
|
OFFICIAL PRODUCT IDENTITY

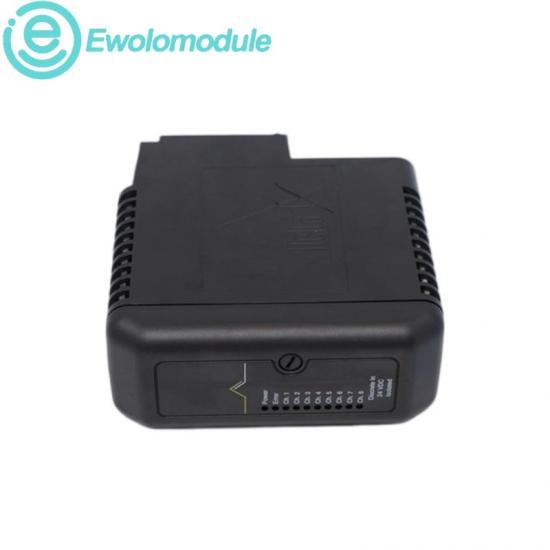

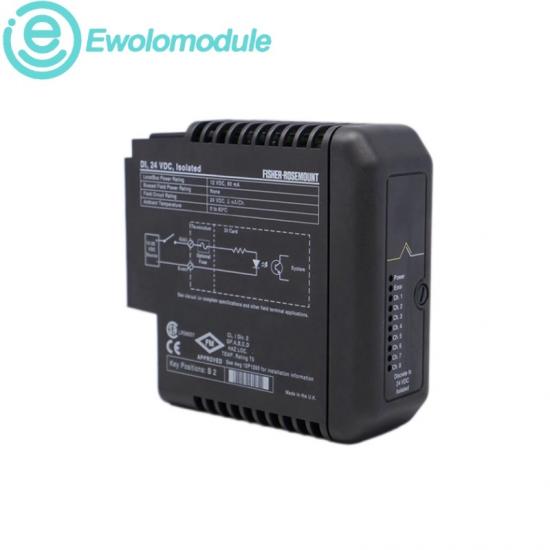

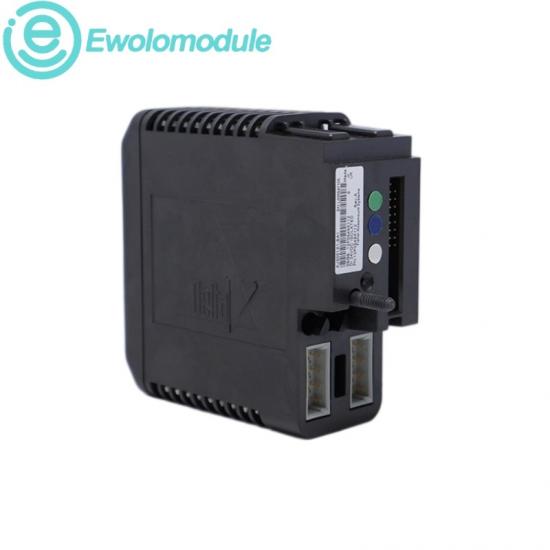

Emerson KJ3001X1-BA1 12P0549X112
24 VDC Isolated Digital Input Module |
|||
|
||||
| TECHNICAL PROFILECALL +86 17359287459EMAIL sales9@apterpower.com | |||
| The KJ3001X1-BA1 with order number 12P0549X112 is a DeltaV M-series isolated digital-input card. Eight field channels acquire 24 VDC discrete states while the module exchanges conditioned status data with the DeltaV LocalBus. | |||
| SPECIFICATIONS | |||
| Input channels | 8 isolated | Field circuit | 24 V DC at 5 mA/channel |
| LocalBus power | 12 V DC at 100 mA | Terminal key | B2 |
| System family | DeltaV M-series | Protection rating | IP20 |
| Humidity | 5–95% non-condensing | Calibration | Not required |
| OPERATING ENVIRONMENT | MONITORING & CONTROL | ||
| Operate in a clean control-panel environment from 0–60°C and within 5–95% non-condensing humidity. De-energize field power before connecting the terminal block and preserve the terminal-key setting during replacement. | DeltaV scans the isolated input channels and reports module and channel state to the controller. Rotary keying prevents incompatible terminal-block combinations, while system diagnostics support wiring checks and controlled service replacement. | ||
| BRAND CHARACTERISTICS | APPLICATION FIELDS | ||||||||||||||||||||
| Emerson DeltaV M-series I/O combines modular carriers, keyed terminal blocks and order-code-controlled cards for repeatable engineering and maintenance. The KJ and 12P identifiers define the exact hardware revision. | Used for switch, limit, contact and interlock acquisition in process plants, utilities, packaging lines, material handling and installed DeltaV systems requiring isolated 24 VDC digital inputs. | ||||||||||||||||||||
| Emerson | |||||||||||||||||||||
|
|||||||||||||||||||||
| Bachmann electronic | |||||||||||||||||||||
|
|||||||||||||||||||||
| QUOTE |
| Provide the complete article number, required quantity and destination when requesting a quotation. We will confirm the exact product configuration and current availability. |
