EMERSON · DELTAV M-SERIES
HART PROCESS MEASUREMENT
|
OFFICIAL PRODUCT IDENTITY

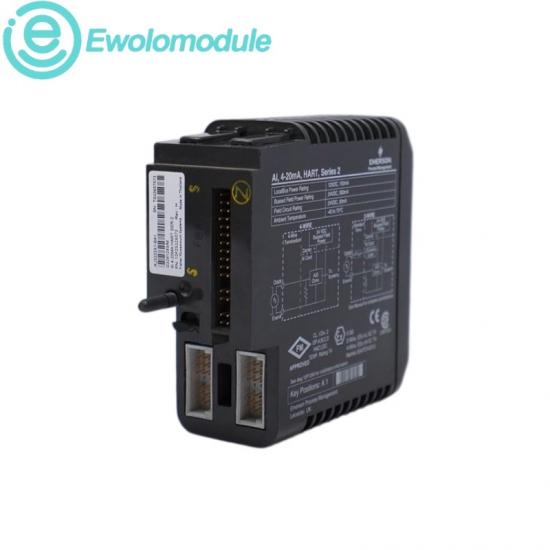

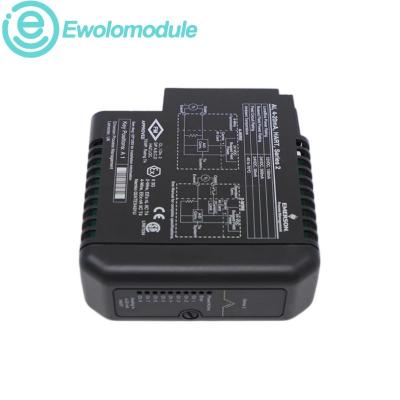

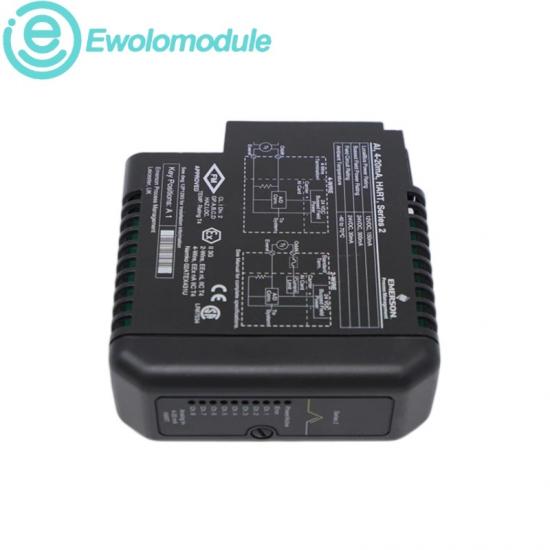

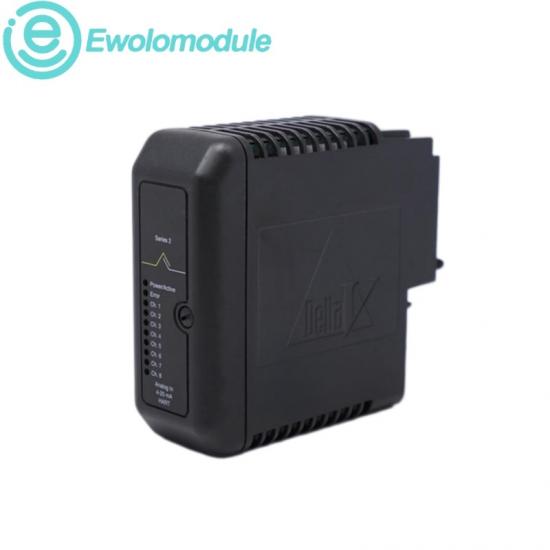

Emerson KJ3222X1-BA1 12P2532X072
8-Channel 4–20 mA HART Analog Input Module |
|||
|
||||
| TECHNICAL PROFILECALL +86 17359287459EMAIL sales9@apterpower.com | |||
| The KJ3222X1-BA1, order number 12P2532X072, is a DeltaV Series 2 analog-input card for eight 4–20 mA process loops with HART communication. It conditions field current signals and makes measurement, status and device data available to the DeltaV controller. | |||
| SPECIFICATIONS | |||
| Input channels | 8 | Signal range | 4–20 mA |
| Digital protocol | HART | LocalBus power | 12 V DC at 150 mA |
| Bussed field power | 24 V DC at 300 mA | Field circuit | 24 V DC at 30 mA/channel |
| System family | DeltaV M-series | Card series | Series 2 |
| OPERATING ENVIRONMENT | MONITORING & CONTROL | ||
| Designed for industrial cabinet use from -40–70°C. Remove field power before terminal-block work, maintain the approved carrier and terminal combination, and keep loop wiring segregated from high-noise conductors. | The module supplies process values and HART device information to DeltaV monitoring and control strategies. Channel diagnostics help identify loop, wiring and device conditions while supporting remote configuration and maintenance. | ||
| BRAND CHARACTERISTICS | APPLICATION FIELDS | ||||||||||||||||||||
| Emerson DeltaV HART I/O combines analog measurement with digital device communication in a modular carrier architecture. Complete KJ and 12P codes preserve the intended hardware and terminal configuration. | Applied to pressure, flow, level, temperature and analytical transmitters in oil and gas, chemical, power, water and other continuous-process installations using 4–20 mA HART loops. | ||||||||||||||||||||
| Emerson | |||||||||||||||||||||
|
|||||||||||||||||||||
| Bachmann electronic | |||||||||||||||||||||
|
|||||||||||||||||||||
| QUOTE |
| Provide the complete article number, required quantity and destination when requesting a quotation. We will confirm the exact product configuration and current availability. |
