Sepcifications

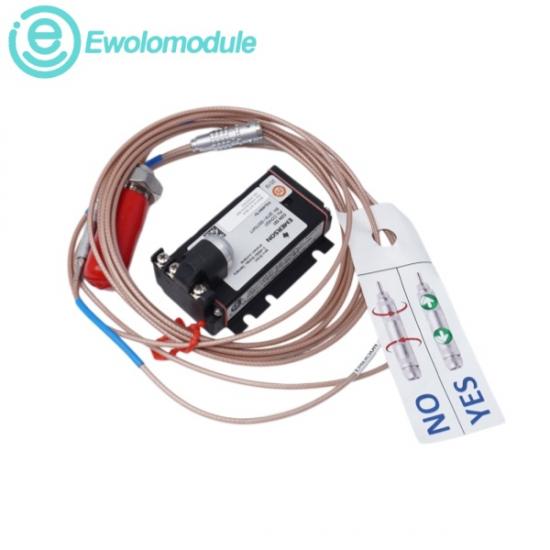

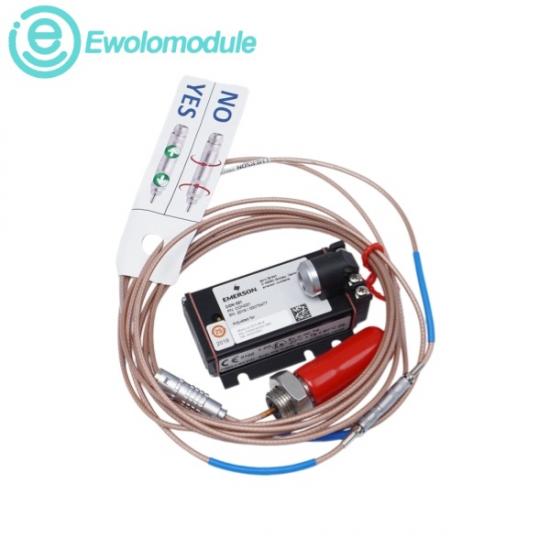

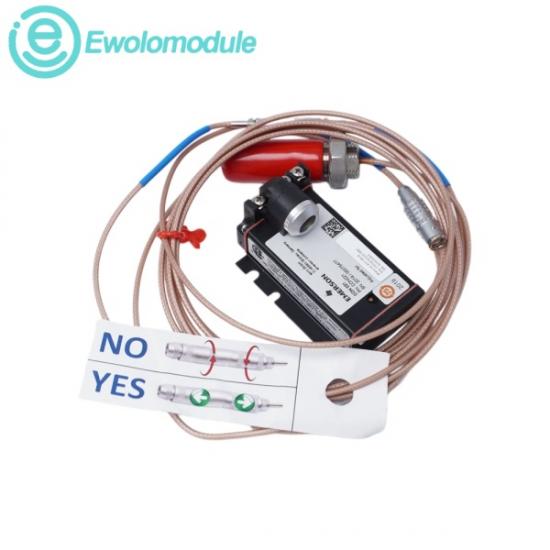

The Emerson EPRO PR6424/000-000 CON21 is a non-contact eddy current proximity sensor module engineered for precise, high-resolution measurement of shaft displacement, vibration, and position in critical rotating machinery. By generating a high-frequency electromagnetic field, the sensor detects dynamic gaps between its probe tip and a moving ferromagnetic shaft without making physical contact. It captures real-time, wear-free data regarding micro-vibrations, radial shaft displacement, axial thrust positioning, and rotational shaft speed, preventing catastrophic mechanical failures inside severe plant environments.

² Supply Voltage Input (Converter): Operates on a standard negative power rail between -21 V DC to -32 V DC

² Signal Output Range: Transmits converted linear output loops across -2 V DC to -18 V DC

² Sensitivity / Linearity Scale: Factored at a highly accurate 4 V/mm (101.6 mV/mil) with a deviation error of ≤ ±1.5%

² Measuring Range Capability: Tracks static and dynamic displacements across a 0 to 3.0 mm span

² Sensor Tip Operating Temperature: Built to endure intense thermal duress ranging from -35 °C to +150 °C

² CON021 Converter Operating Temperature: Maintained within a cabinet envelope of -30 °C to +100 °C

² Frequency Response Bandwidth: Spans from 0 Hz up to 20,000 Hz (20 kHz)

Product Applications

ü Turbomachinery Diagnostics: Routinely mounted through sleeve bearings to gauge radial shaft vibration inside steam, gas, and hydro turbines.

ü Axial Thrust Measurement: Monitors the physical shifting or drift of internal shafts to safeguard large-scale industrial compressors, gearboxes, and pumps.

ü Speed Sensing & Keyphaser Monitoring: Tracks shaft keys or target notches to measure precise RPM statistics and phase reference markers on critical machine trains.

ü Predictive Maintenance: Feeds analog data streams into plant machinery protection systems (like AMS or MMS systems) for early fault analysis.
