Product Description

The FANUC QPI-PSL-201 is a bus-conversion and network-interface module for GE/FANUC QuickPanel HMI families. It enables a single touchscreen to act as a universal operator station across multiple industrial networks. This Unit allows the attachment of QPI-xxx-20x series expansion units to 10.5" and 12.1" QP-Ethernet Series units. It is not a touch screen unit itself, but a network interface adapter module.

1) Operational Voltage: 5 VDC

2) Current Consumption: 100 mA at 5 VDC

3) Expansion System Interface: Rear Face Expansion Unit I/F with 3-slot allocation architecture

4) Operating Temperature: 0 °C to +50 °C (32 °F to 122 °F) standard operational cabinet margin

5) Storage Temperature: -20 °C to +60 °C (-4 °F to 140 °F)

6) Relative Humidity: 10% to 90% non-condensing

Real-World Applications

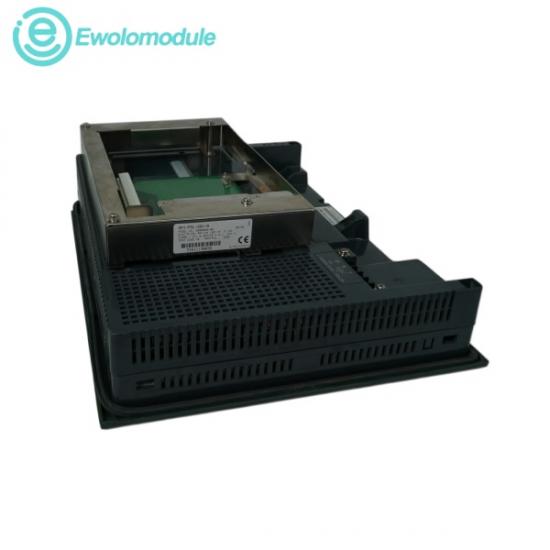

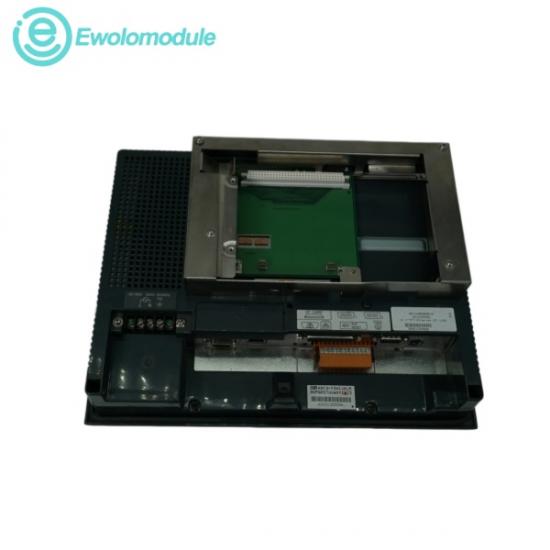

n HMI Expansion Bridging: Implemented directly on the back of 10.5" and 12.1" QuickPanel displays to allow the seamless attachment of auxiliary QPI-xxx-20x communication networks.

n Industrial Networking: Used across manufacturing plants to link standard operator touchscreen setups to external industrial bus layers like Genius I/O, Profibus, or Data Highway Plus networks via modular cards.

n Factory Process Automation: Deployed within control panels governing automotive assembly lines, conveyor grids, and food processing lines where multi-protocol communication bridging is needed at the machine level.

Our Advantage

☆ ABB (PM645,PM865,DSQC, AC800M,OCS 07KT97/07AI/07DI,etc)

☆ BENTLY (3500,3300 system sereis)

☆ HONEYWELL (DC 2000, TDC3000, TPS, security systems)

☆ SCHNEIDER (Quantum 140 series: CPU processor, communication module)

☆ FOXBORO (FBM203/204/217,FCP240/270)

☆ EMERSON (DeltaV systems, / O unit, Analog AI module, Analog AO module)

☆ Motorola (VME 162, MVME 167, MVME1772, MVME177)

☆ YOKOGAWA (CS3000 system CPU controller module, analog module)

☆ EPRO (MMS6210/621,PR6423/003-031)

You May Need

FAQ

Q1: What is the earliest time when you can make delivery?

A: We will make delivery once received your payment.

Q2: Do you have branches in foreign countries?

A: No, but we sell to all over the world.

Q3: Are you manufactory or trading company?

A: Trading company.

Q4: Can you offer Technical Support?

A: No, we sell hardware, not include the technical support.

Q5: Can you supply Datasheets/Literature/Technical Literature?

A: The datasheet will be shipped together with the goods.
