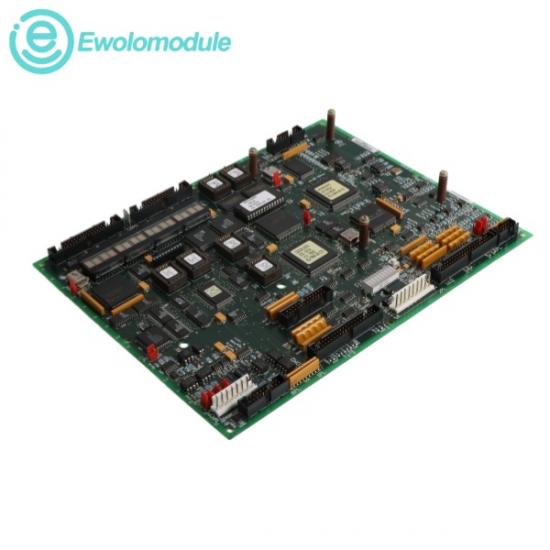

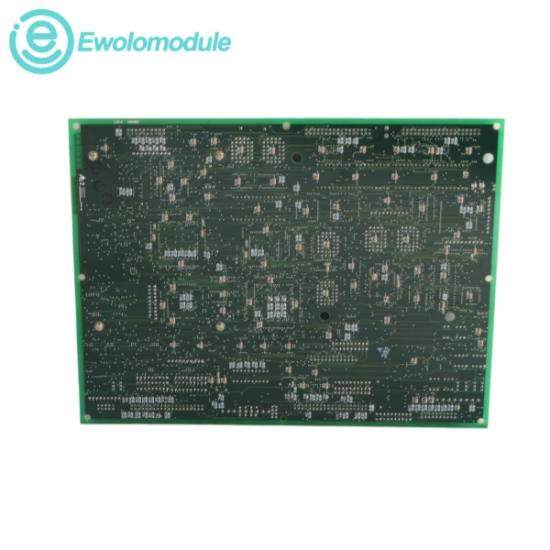

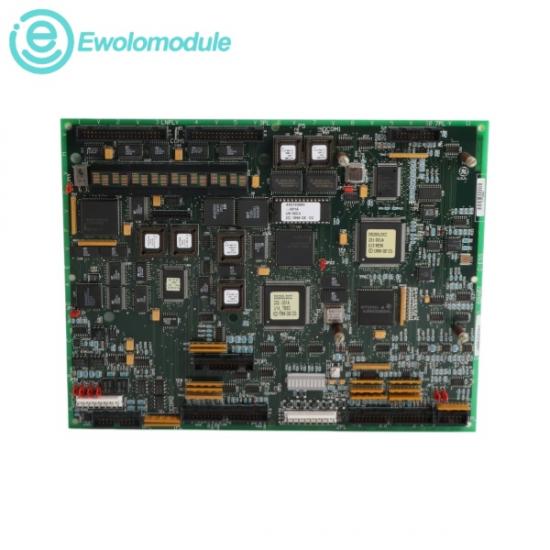

The GE DS200LDCCH1ALA DS200LDCCH1 is a high-performance, primary drive control and local area network (LAN) communication board engineered for complex industrial turbine control and large-scale drive systems. Acting as the central processor for the drive cabinet, it hosts dual multi-layered microprocessors that handle dense computational execution, real-time motor control logic, and diagnostic tracking loops. The board is structurally equipped with advanced communication co-processors that manage high-speed fieldbus interface to enable seamless, deterministic control synchronization and low-latency diagnostic data sharing across complex automated networks.

l Logic Bus Power Consumption: Consumes 120 mA maximum current from the standard 5V DC bus

l External Power Requirements: 65 mA plus current loop current supplied from an external user-provided +24V DC supply

l Ambient Operating Temperature: Designed to run reliably in harsh settings spanning from 0 °C to +55 °C

l Storage Temperature Range: Safe keeping limits from -40 °C to +70 °C

l Relative Humidity Tolerance: Up to 95% non-condensing moisture resistance, safeguarded

Gas and Steam Turbine Control:

Serves as the primary communication and drive controller block in GE Speedtronic Mark V setups to manage fuel valve tracking and governor logic.

Industrial Excitation Systems:

Deployed inside GE EX2000 excitation architectures to continuously compute and communicate rotor/stator field flux variables.

Heavy-Duty Motor Drives:

Regulates massive Variable Frequency Drives (VFD) and synchronous motors utilized in steel mills, rolling machinery, and large processing plants.

Power Plant Grid Synchronization:

Interfaces high-speed diagnostic data streams with plant-wide Distributed Control Systems (DCS) to manage grid electrical parameters securely.
