Introduce

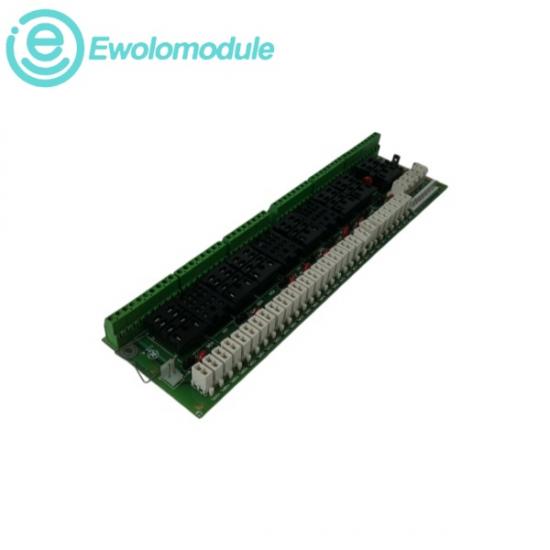

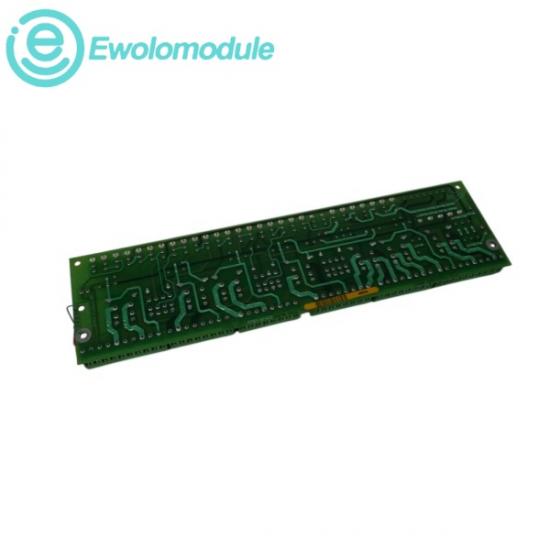

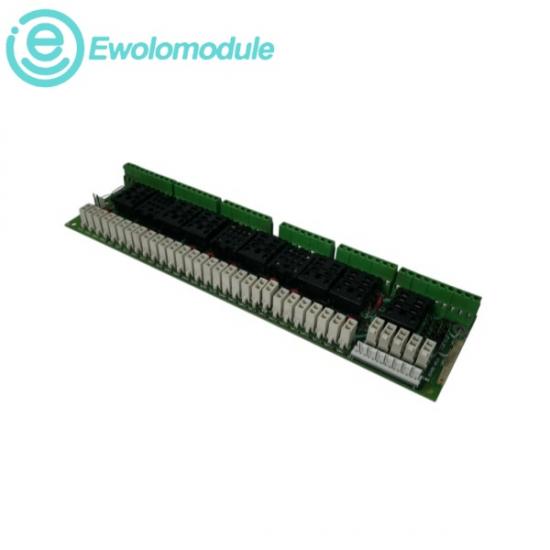

The GE 531X305NTBACG1 is an industrial-grade relay terminal input/output board engineered to provide secure physical termination, signal conditioning, and isolation between field devices and central control systems. Mounted directly within a drive or turbine control rack, it serves as the frontline wiring interface for field-side control signals. The board consolidates incoming cables onto rugged terminal blocks, routeing them through onboard electromechanical isolation relays and attenuation circuits to filter out severe electro-magnetic interference (EMI). This setup protects the system's central processing architecture from voltage surges, inductive kickbacks, and ground loops while providing real-time contact multiplication for complex safety interlocking logic.

(1) Regulated DC Outputs: Delivers +5 VDC and +15 VDC rails, each rated for a strict continuous load current capacity of 300 mA

(2) Unregulated DC Output: Provides a 24 VDC supply rail with a total current capacity of 500 mA

(3) Unregulated AC Output: Features an internal tap providing a 120 VAC / 125 VAC line rated up to 0.5 A of maximum current capacity

(4) General-Purpose Input Channels: Hosts 12 general-purpose digital input loops designed to tolerate inputs up to 24 VDC

(5) Relay Contact Rating: Rated to switch up to 120V AC or 24V/125V DC configurations

(6) Isolation Threshold: Standard 1,500V AC dielectric isolation barrier between external field-wiring screws and internal system bus headers

(7) Board Composition Material: Rigid, multi-layer flame-retardant FR-4 glass-epoxy laminate substrate with thick copper plating
