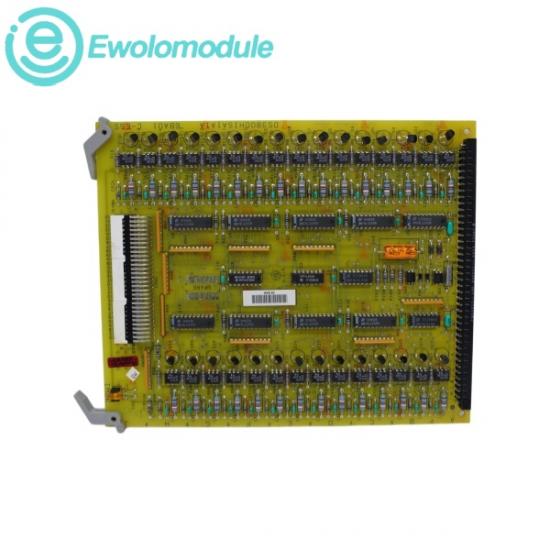

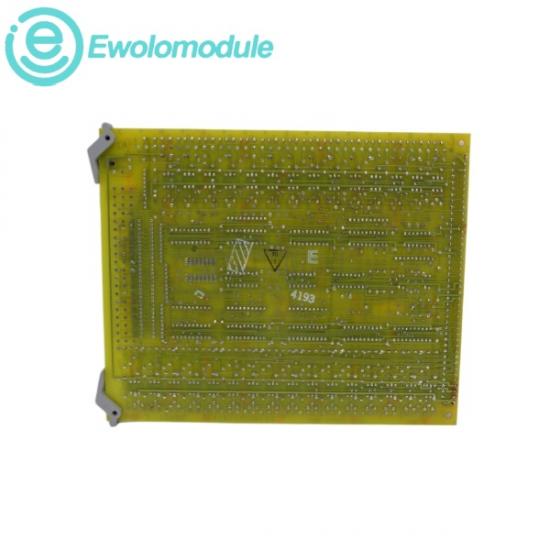

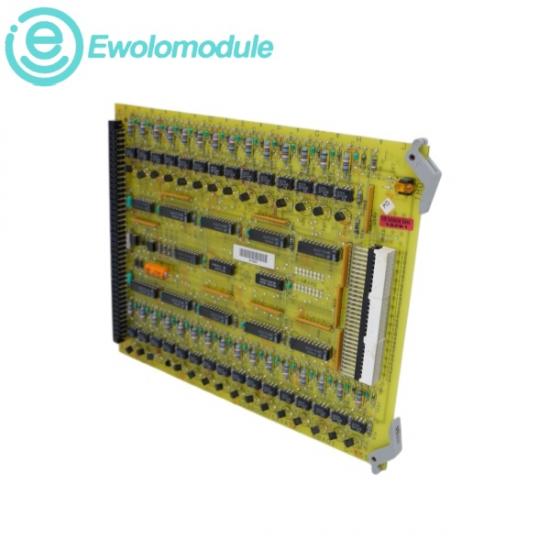

The GE DS3800HISA1A1A is a slot-mounted, heavy-duty isolated input circuit board built for the Speedtronic Mark IV turbine monitoring architecture. It acts as a rugged interface card designed to receive raw operational and sensory electrical data directly from external gas turbine field hardware. Equipped with specialized galvanic isolation circuitry, it safeguards the core control system by preventing electrical surges, filtering signal distortion, and eliminating ground loops between external sensors and the internal process architecture.

² Logic Bus Voltage: +5V DC and ±15V DC delivered seamlessly

² Input Signal Isolation Capacity: Built-in galvanic isolation supporting up to 1000V DC

² Operating Temperature Range: °C to +60°C (+32°F to +140°F) with convective cabinet ventilation

² Storage Temperature Index: -40°C to +85°C (-40°F to +185°F)

² Relative Humidity Limit: 5% to 95% non-condensing moisture factor

(1) Gas Turbine Signal Conditioning: Filters and conditions real-time diagnostic inputs such as pressure, temperature, or flow data coming off heavy industrial power generation turbines.

(2) System Galvanic Isolation: Serves as a vital protective barrier in high-voltage industrial setups to prevent field faults from damaging the primary Mark IV microprocessor rack.

(3) Noise and Ground Loop Elimination: Eliminates signal cross-talk and field-side electrical interference to guarantee ultra-precise control readings.
