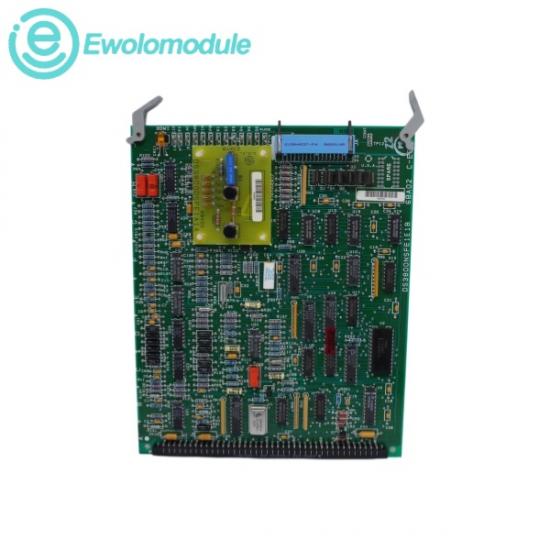

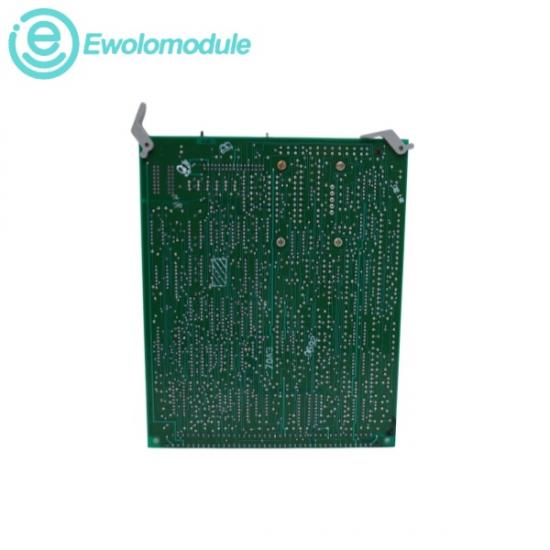

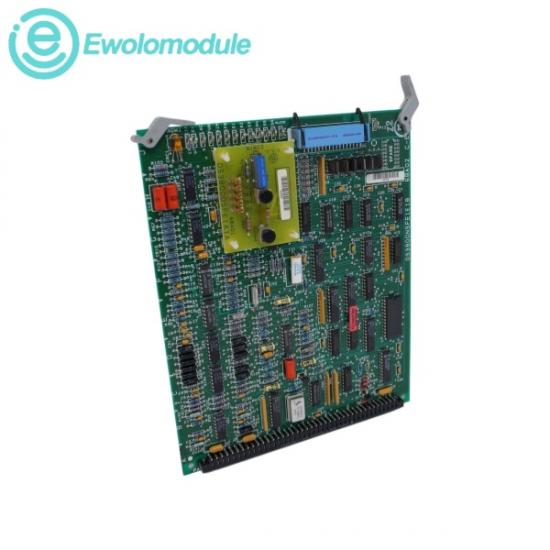

The GE DS3800NSFE1E1B is a dedicated dual port memory board designed for high-performance industrial control systems, ensuring seamless data transmission and enhanced system reliability. It dynamically monitors and adjusts the strength of the magnetic excitation field, effectively managing the power factor, output voltage, and reactive power delivered by the generator. Engineered specifically for GE's Mark IV Speedtronic control systems, it enhances overall system reliability and data processing efficiency for gas and steam turbine management.

² Logic Bus Voltage: +5V DC, +15V DC, and -15V DC supplied internally

² Operating Temperature Range: Standard power-plant environments from 0°C to +60°C (+32°F to +140°F) under standard convective cooling airflow

² Storage Environment Limits: -40°C to +85°C (-40°F to +185°F)

² Relative Operational Humidity: 5% to 95% non-condensing atmosphere index

(1) Generator Excitation Regulation: Continuously stabilizes the overall grid reliability by altering real-time excitation field inputs on synchronous generators.

(2) Reactive Power (VAR) Balancing: Monitors structural turbine outputs to dynamically adjust reactive power factors during alternating electrical grid loads.

(3) Mark IV Turbine Automation: Integrates natively within legacy Speedtronic control configurations to prevent operational voltage droop or synchronization loss.
