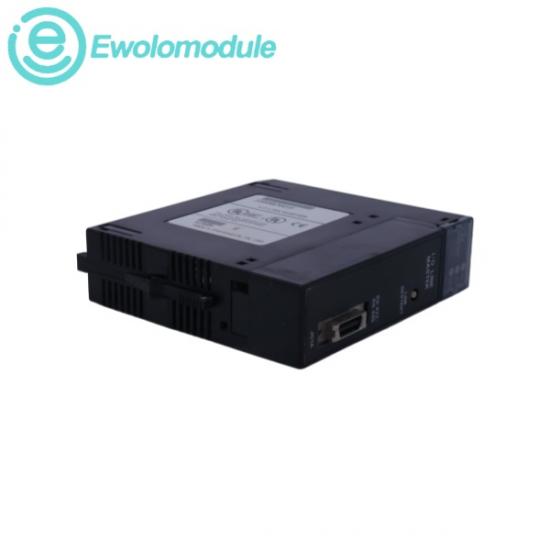

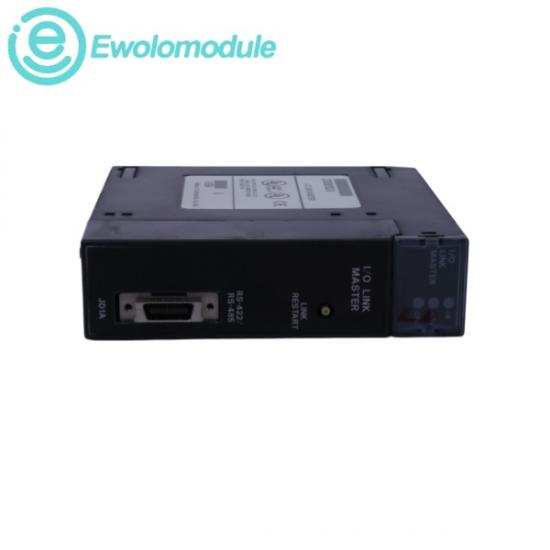

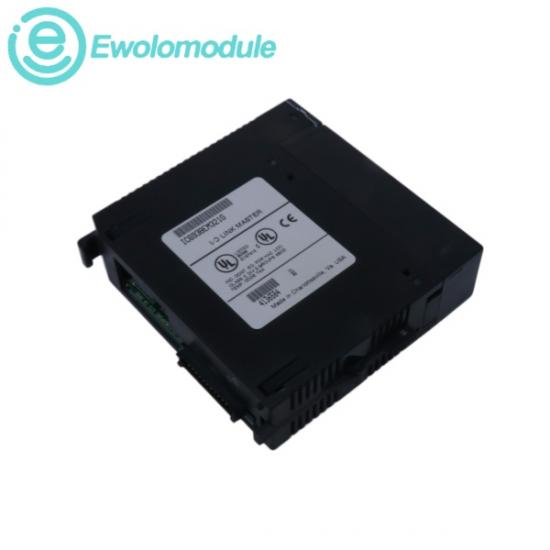

The GE IC693BEM321 is a high-performance I/O Link Master Module designed for the Series 90-30 PLC system. This module facilitates rapid, real-time serial data exchange between the host PLC master and up to 16 remote slave devices, such as Series 90-70 PLCs, Series 90-30 PLCs, operator panels, and specialized distributed connection units. It features a convenient front-panel pushbutton link reset mechanism to clear and restart link operations instantly following unexpected system faults, and it houses a specialized 20-pin Honda-type connector to anchor the physical communication wiring loop.

❖ Operating Voltage: 5V DC nominal

❖ I/O Capacity: Up to 1024 inputs and 1024 outputs

❖ Maximum Slaves: Up to 16 I/O link slave modules

❖ Data Transfer Rate: Up to 230.4 Kbps

❖ Operating Temperature: 0°C to 60°C (32°F to 140°F)

❖ Storage Temperature: -40°C to 85°C (-40°F to 185°F)

❖ Humidity Range: 5% to 95% (non-condensing)

Ø Fanuc I/O Network Linkage: Orchestrates centralized command processing for extensive decentralized networks containing up to 16 slave racks or industrial HMI blocks.

Ø Cross-Platform PLC Communication: Bridges operational logic data pipelines seamlessly between older Series 90-70 systems and standard Series 90-30 automation cells.

Ø High-Density Signal Management: Coordinates large discrete automated factories requiring up to 1024 input and output points to run concurrent equipment cycles.
