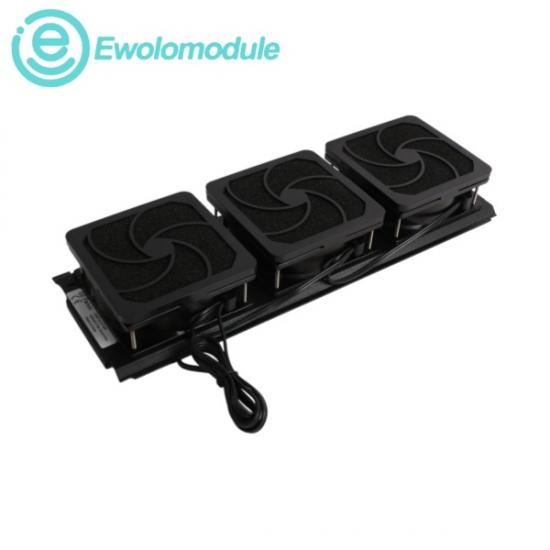

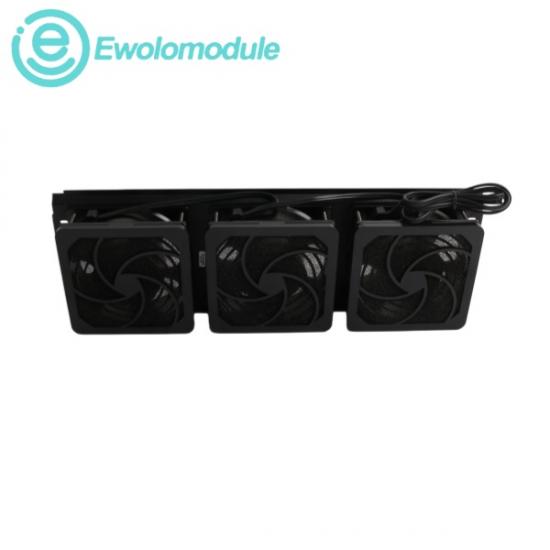

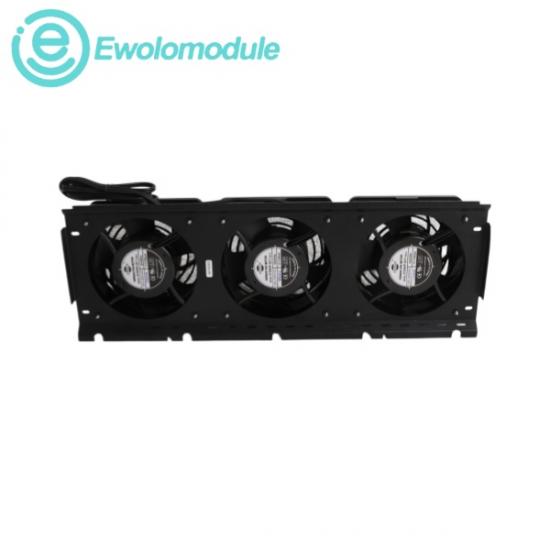

The GE IC697ACC724 is a rack-mounted fan assembly engineered for the GE Fanuc Series 90-70 PLC systems. The assembly features three parallel-wired fans integrated with premium ball bearings to extend operational lifecycle and drastically reduce acoustic noise levels during full-capacity performance. It is constructed with heavy-duty side-mount plates to withstand extreme vibration on the factory floor and mounts directly to the bottom of the system rack assembly. The assembly is mounted on the bottom of the rack and directs airflow from the bottom toward the top.

❖ Operating Voltage: 240 VAC

❖ Input Power: 16 to 17 Watts

❖ Line Current: 0.09 to 0.10 Amps

❖ Locked Rotor Amps: 0.12 to 0.14 Amps

❖ Nominal Airflow Output: 71 CFM (Cubic Feet per Minute)

❖ Operating Temperature Range: -28 °C to 70 °C (-18.4 °F to 158 °F)

Ø Forced-Air Thermal Management: Deployed underneath PLC racks experiencing high heat output to stabilize core hardware operating temperatures.

Ø High-Vibration Cabinet Cooling: Used in heavy-duty manufacturing plants, outdoor control cabinets, and mining equipment where rugged structural reinforcement is needed.

Ø Enclosure Protection: Complemented by air filtration systems to minimize airborne industrial dust and particulate contamination inside localized control enclosures.
