Product Overview

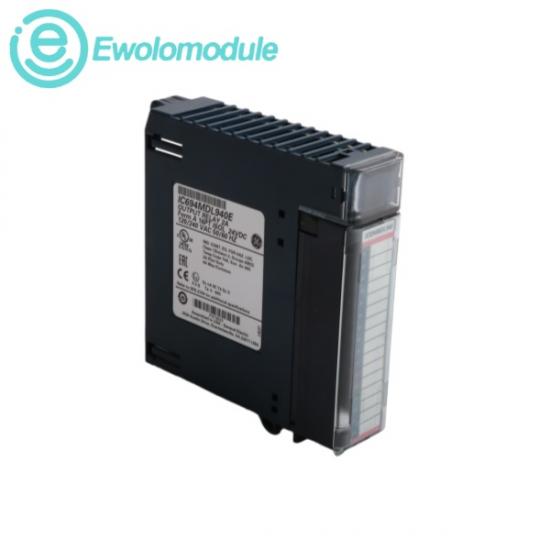

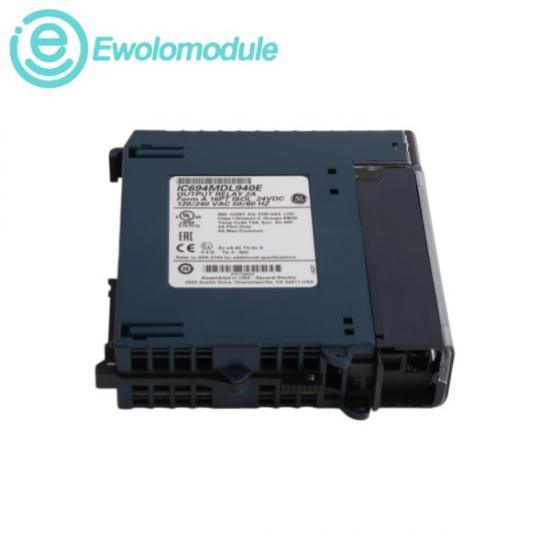

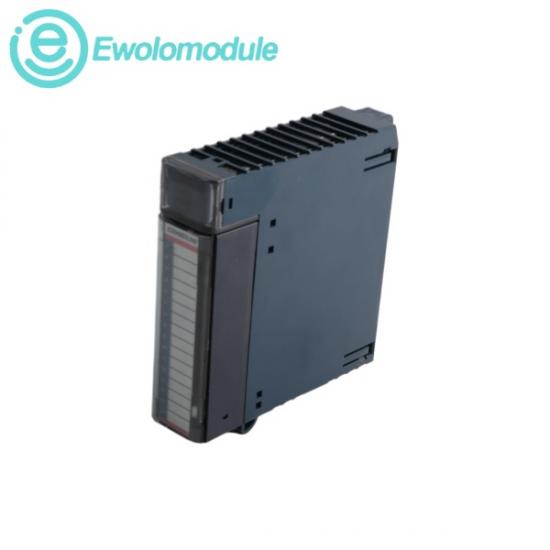

The GE IC694MDL940 is a 16-point relay output module providing 16 normally-open (NO) relay circuits for controlling output loads. The 16 output points are arranged in four isolated groups of four channels each, with each group utilizing a shared common power terminal. Power for the internal relay circuits is supplied by the +24 volt DC bus on the backplane and relies on user-supplied power to drive the external AC or DC field devices.

(1) Minimum Load Current: 10 mA

(2) Maximum Inrush Current: 5 Amps

(3) On / Off Response Time: 15 ms maximum

(4) Nominal Rated Voltage: 24 VDC / 120/240 VAC

(5) Operating Voltage Range: 5 to 30 VDC or 5 to 250 VAC

(6) Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)

Industrial Applications

(1) Heavy Contactor and Motor Starter Control: Driving power contactors and magnetic motor starters to spin heavy machinery.

(2) Solenoid Valve Actuation: Coordinating the pneumatic and hydraulic directional valves used in packaging lines and process manifolds.

(3) Visual and Audible Plant Alarms: Powering high-voltage stack lights, facility horns, and safety warning indicators.

(4) Mixed-Voltage Signal Isolation: Interfacing field devices operating on disparate voltages (such as mixing 120VAC and 24VDC loads on the same module rack).

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
