Product Overview

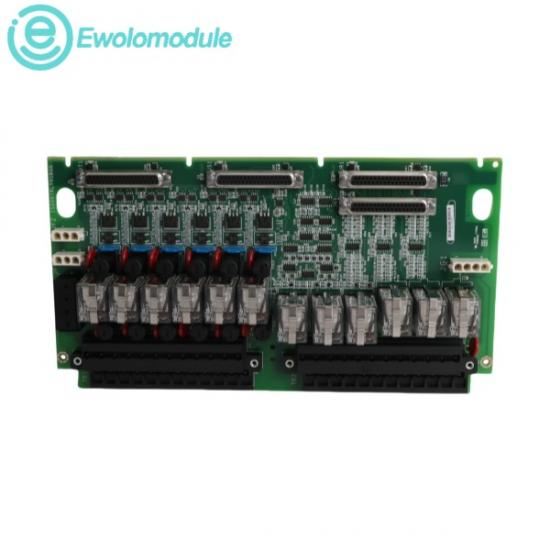

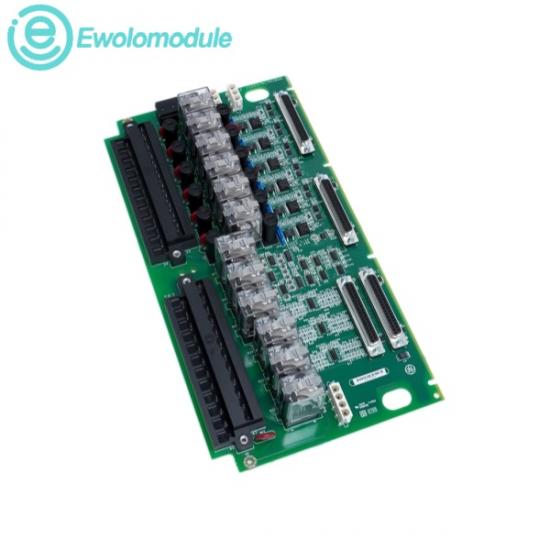

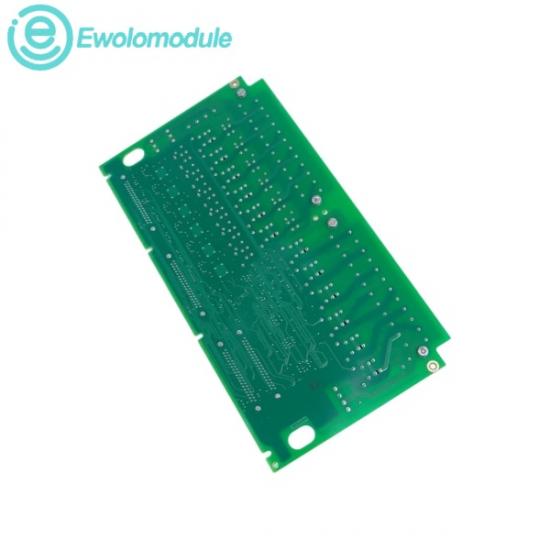

The GE IS200TRLYH1BGG is a robust, high-integrity Relay Output Terminal Board engineered for the Mark VI/VIe Speedtronic turbine control systems. The board is designed for demanding turbine protection and shutdown architectures, implementing a Triple Modular Redundant (TMR) relay structure to ensure dependable output voting and fault-tolerant operation. Acting as the physical interface layer, it coordinates up to 12 form-C dry-contact relay outputs, receiving low-voltage control signals from a matching VTRL processor card via specialized ribbon cables and converting them into heavy-duty electrical commands.

u Operating Logic Voltage: Typically energized via system internal power links, utilizing regulated 24 V DC

u Output Current Carrying Capacity: Support typical continuous contact loads up to 5 A at 120 V AC or 2 A at 24 V DC

u Operating Ambient Temperature: Formulated to function reliably within enclosed control cabinets from 0 °C to +60 °C

u Storage Temperature Boundaries: Endures non-operational shipping and warehouse parameters between -40 °C to +85 °C

u Relative Humidity Limits: Operates safely within a 5% to 95% non-condensing atmosphere constraint

Industrial Applications

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
