PRODUCT IDENTITY

CALL +86 17359287459 EMAIL sales9@apterpower.com

GENERAL ELECTRIC

SPEEDTRONIC MARK V

ARTICLE NUMBER

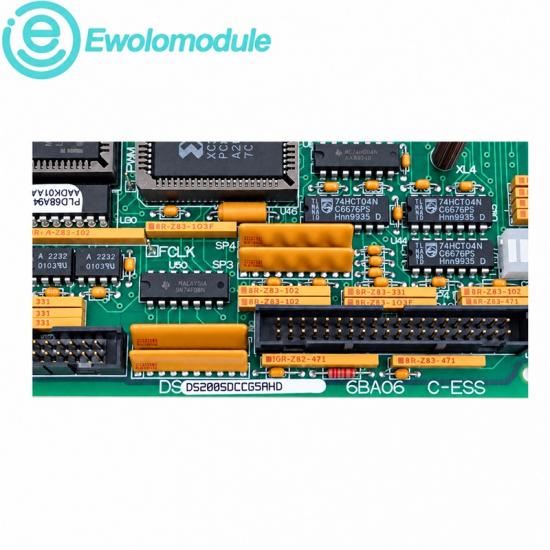

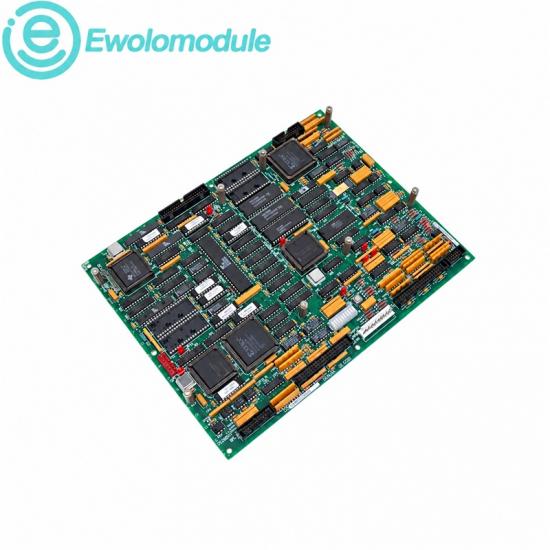

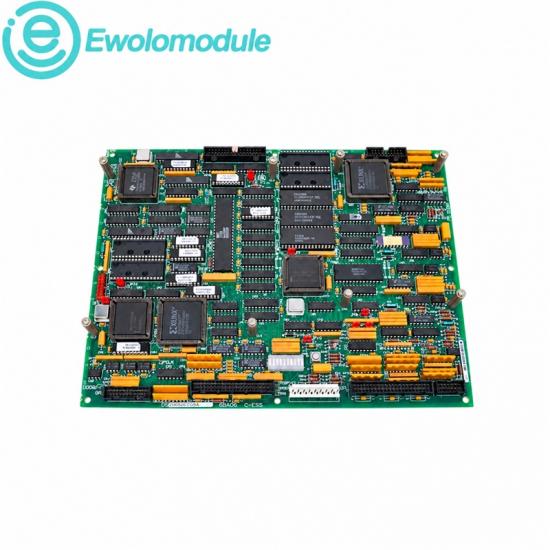

DS200SDCCG5A

OFFICIAL PRODUCT NAME

Drive Control Card

REFERENCE MARK V · SDCC

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

TECHNICAL & CONTROL PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

A central drive-control card for legacy GE Mark V and industrial drive systems, coordinating control algorithms, internal I/O exchange and board-level interfaces in the installed controller.

TECHNICAL SPECIFICATIONS

Manufacturer	General Electric
Product family	Mark V drive control
Processing sections	Three
Shared memory	Dual-port RAM
Drive-control CPU	80C186 class
Motor-control CPU	80C196 class
Calculation processor	TMS320C25 class
Board connections	PL interface connectors
Control scope	Speed / position / current
Installed platforms	Legacy GE drive systems

OPERATING ENVIRONMENT

Install in the documented GE controller position with matched power, interface, terminal and communication boards. Preserve grounding, connector orientation, cooling clearance and the established firmware or memory-device configuration.

MATCHED SLOT

COOLING CLEARANCE

GROUNDING

MONITORING & CONTROL

Coordinates drive-control, motor-control and calculation tasks through shared dual-port memory. Verify speed, position and current-regulation feedback, board communications and fault status before returning the drive to service.

SPEED CONTROL

CURRENT LOOP

FAULT STATUS

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

General Electric control platforms combine modular board architecture, deterministic signal processing and long installed-base support for turbine, excitation and industrial drive systems.

MODULAR CONTROL

DETERMINISTIC

SERVICEABLE

APPLICATION FIELDS

Used in power generation, process plants, excitation packages and legacy motor-drive cabinets where the installed Mark V or related GE controller architecture is retained.

POWER GENERATION

DRIVE CABINETS

RETROFIT
