PRODUCT IDENTITY

CALL +86 17359287459 EMAIL sales9@apterpower.com

GENERAL ELECTRIC

SPEEDTRONIC MARK V

ARTICLE NUMBER

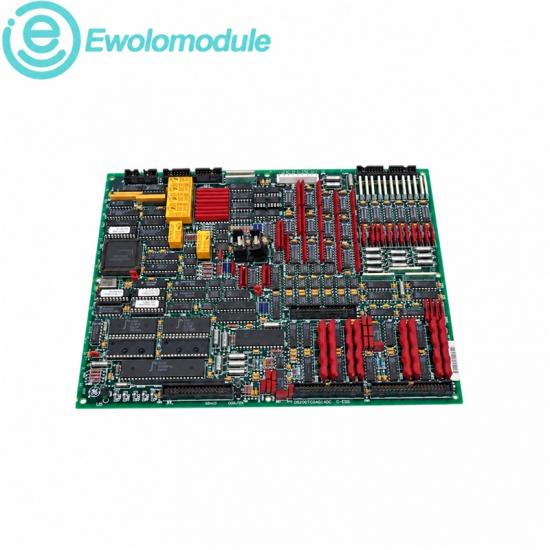

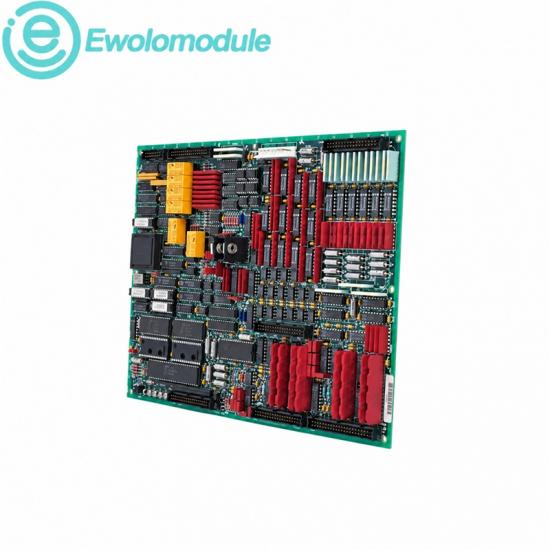

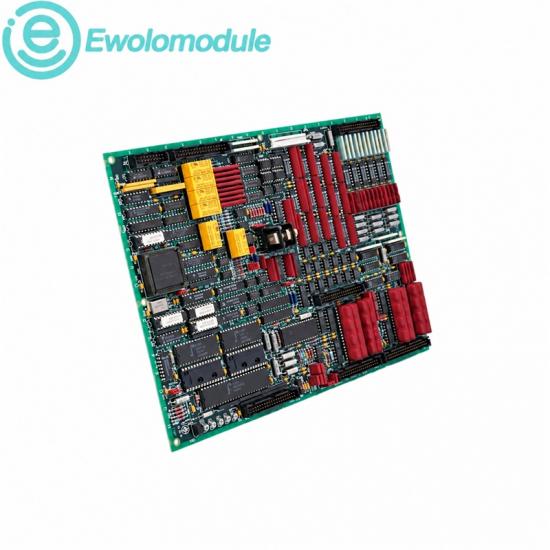

DS200TCQAG1A

OFFICIAL PRODUCT NAME

Analog I/O Board

REFERENCE MARK V · TCQA

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

TECHNICAL & CONTROL PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

An RST analog I/O board for GE Mark V turbine-control cabinets, used to condition and scale multiple field signals before exchange with the controller and associated terminal boards.

TECHNICAL SPECIFICATIONS

Manufacturer	General Electric
Product family	Mark V turbine control
I/O cores	R1 / R2 / R3
Hardware connectors	Eight
Current loops	4–20 mA input/output
Position signals	LVDT / LVDR
Temperature inputs	Thermocouples
Machine signals	Vibration and pulse
Actuator interface	Servo-valve outputs
Signal role	Scaling and conditioning

OPERATING ENVIRONMENT

Fit the board in the correct R1, R2 or R3 core position and preserve installed connector routing. Confirm jumper settings, terminal-board pairing, cold-junction reference paths and rack grounding before commissioning.

R1/R2/R3 CORE

JUMPER CHECK

RACK GROUND

MONITORING & CONTROL

Conditions position, temperature, vibration, pulse, voltage and current-loop signals for the Mark V control structure. Validate channel scaling, servo-valve commands, relay-driver paths and live diagnostics after replacement.

SIGNAL SCALING

LOOP STATUS

SERVO OUTPUT

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

General Electric Mark V hardware uses distributed I/O cores, dedicated signal-conditioning boards and coordinated controller processing for critical rotating-equipment control.

DISTRIBUTED I/O

FIELD PROVEN

LIFECYCLE READY

APPLICATION FIELDS

Applied in gas- and steam-turbine packages, liquid-fuel control, power-generation auxiliaries and process systems requiring Mark V analog signal conditioning.

TURBINE CONTROL

PROCESS SIGNALS

PLANT SERVICE
