01 / PRODUCT DETAILS
PROFIBUS Optical Link Modules
HIRSCHMANN · PROFIBUS OPTICAL LINK MODULES

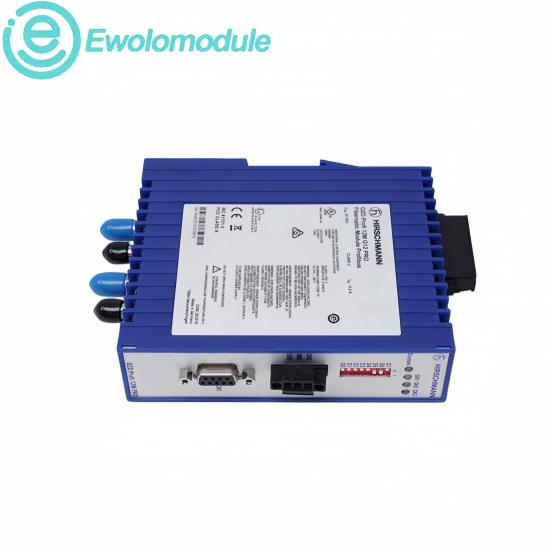

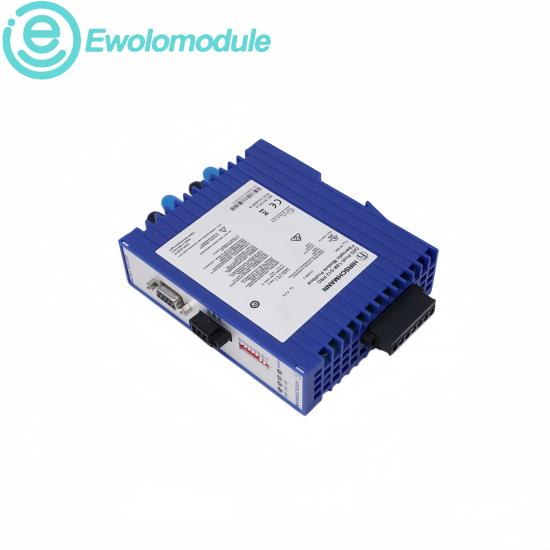

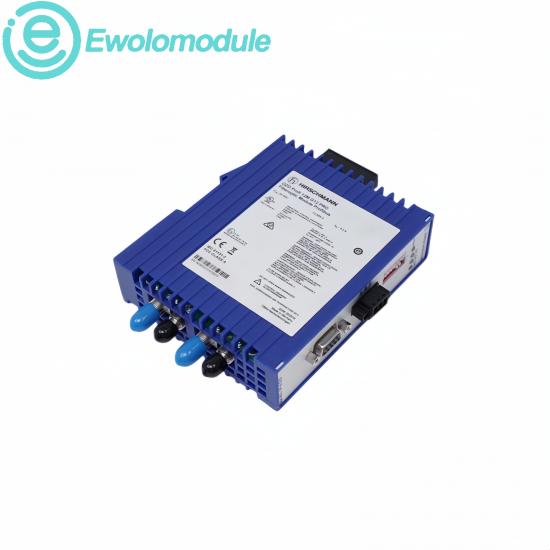

OZD PROFI 12M G12
Electrical Optical Repeater
Electrical-to-optical interface converter and repeater for PROFIBUS networks, with one copper port and two multimode fiber channels for line, star or redundant-ring topologies.
SYSTEM FAMILY
PROFIBUS Optical Link Modules
Verify the complete nameplate, hardware revision and installed-system configuration before replacement.
02 / FIRMWARE & CONFIGURATION
Firmware & Updates
The repeater is commissioned primarily through hardware settings rather than an application firmware workflow. Record product revision and switch positions; use only manufacturer service procedures for the exact generation.
Configuration & Programming
Set the PROFIBUS data rate and topology options, verify redundant 24V feeds, BFOC fiber polarity, optical budget and Sub-D bus termination, then inspect channel-status indications.
Technical data
ELECTRICAL PORT
1 × Sub-D 9-pin
OPTICAL PORTS
2 × BFOC 2.5 duplex
PROTOCOLS
DP-V0 / DP-V1 / DP-V2 / FMS
OPERATING SUPPLY
18–32VDC
CURRENT DRAW
190mA maximum
MULTIMODE DISTANCE
Up to 3000m
