01PRODUCT OVERVIEWP7000 / MOTION CONTROL
|
KOLLMORGEN

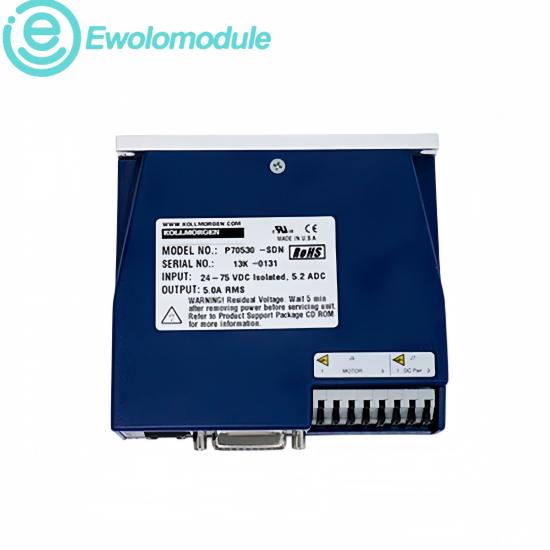

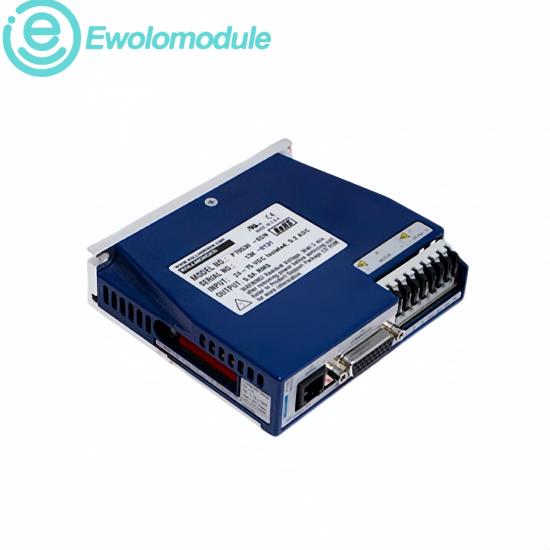

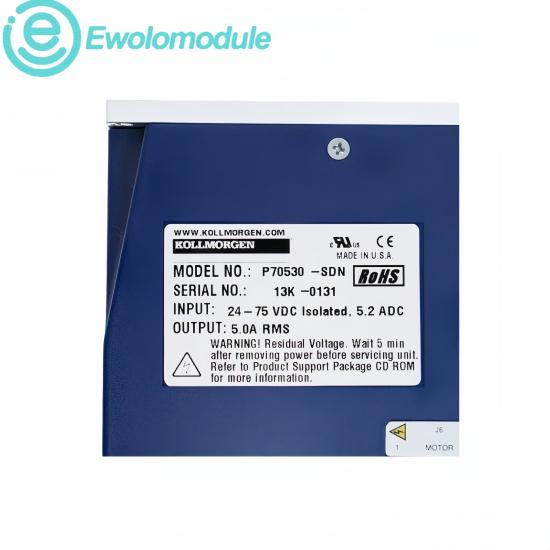

P70530-SDN
P7000 Microstepping Drive
|
PRODUCT ROLE
Step-and-direction power stage for two-phase stepper motors
Converts pulse and direction commands into regulated motor phase current for positioning and indexing axes.
|
02DIAGNOSTICS & DEPLOYMENTPROTECTION / INSTALLATION
Diagnostics & Protection
Use the fault indicator and open-collector status output to separate supply, motor, command and thermal faults. Check the DC bus before changing settings.
Disable the DC source and allow bus discharge before touching terminals. Keep motor power, feedback and logic wiring separated and correctly grounded.
|
Installation & Upgrades
Mount the drive with documented convection clearance, then match motor phase current, pulse format and direction polarity to the machine design.
Preserve P7000Tools settings and microstep resolution. Validate the motor current, acceleration profile and command frequency before production.
|
Technical data
| Input supply |
20–75 VDC |
Continuous current |
5 Arms |
| Peak current |
7.1 Apeak |
Step frequency |
Up to 2 MHz |
| Resolution |
200–50,000 steps/rev |
Digital inputs |
9 opto-isolated |
| Configuration port |
RS-232 |
Ambient range |
0°C to 45°C |
Verify the complete order code, installed revision and system documentation before commissioning.
03BRAND & APPLICATIONSSYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Kollmorgen engineering |
Kollmorgen industrial hardware supports dependable operation in established automation systems. |
Packaging |
Indexed feeders, sealers and labeling mechanisms. |
| Installed-base fit |
Compact digital drive architecture supports precise stepper-axis configuration and service. |
Machine tools |
Positioning stages and auxiliary feed axes. |
| Service discipline |
Documented diagnostics, safe handling and configuration checks support controlled fault recovery. |
Printing |
Web handling, registration and transport control. |
| Lifecycle continuity |
Complete order-code and revision verification helps preserve the installed system architecture. |
Material handling |
Compact conveyor and transfer positioning. |
