HITACHI · PRODUCT DETAILS

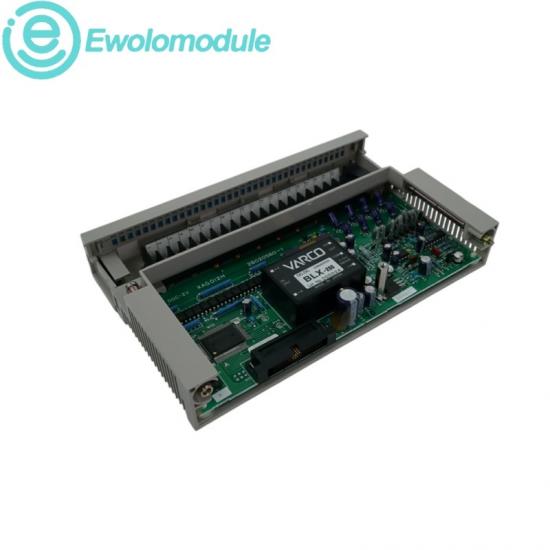

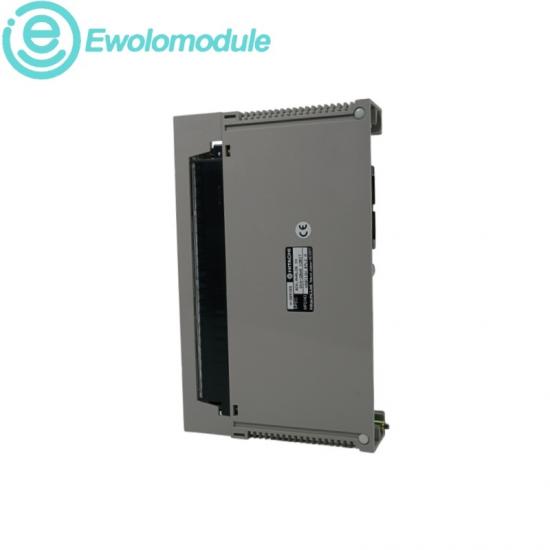

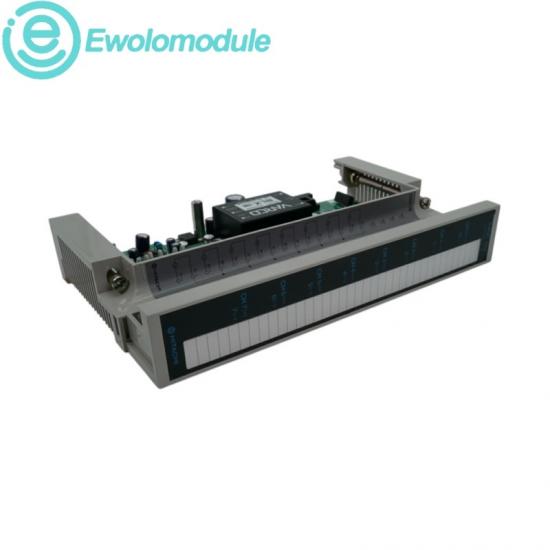

Hitachi XAGC12H XAGC12HC

H-Series · 8-channel 4–20 mA analog input

Product snapshot

This H-Series module acquires eight 4–20 mA process signals with 12-bit conversion for established Hitachi control systems. Match the rack, field wiring and configured signal ranges before commissioning.

CONDITION

New Original

WARRANTY

One year

+86 17359287459 sales9@apterpower.com

Explore other Hitachi products →

Certification, standards & system fit

Documentation-led checks for H-Series analog signal integration

Certification & Standards

Confirm the original nameplate, Hitachi H-Series hardware documentation and the electrical requirements applied to the installed rack.

Grounding, shield termination and current-loop wiring must follow the machine builder’s drawings and applicable local electrical rules.

Compatibility & Interoperability

XAGC12H is an H-Series 4–20 mA analog input module; XAGC12HC is the associated order marking supplied with some units.

Match the rack slot, 5 V DC and 24 V DC internal supply requirements, channel wiring and project configuration before replacement.

Official technical data

Model
XAGC12H

Alternate marking
XAGC12HC

Module type
Analog input

Input signal
4–20 mA

Input channels
8

Resolution
12-bit

Conversion time
5 ms

Isolation
Photo-coupler, PC/channel

Use the exact product label and system documentation as the final engineering authority.

Hitachi brand characteristics

Hitachi industrial automation hardware is recognized for robust modular design, stable field performance and long lifecycle support across established control platforms.

Application fields

Process measurement, current-loop acquisition, factory automation, machine monitoring, water treatment and legacy H-Series control-system maintenance.
