HITACHI · PRODUCT DETAILS

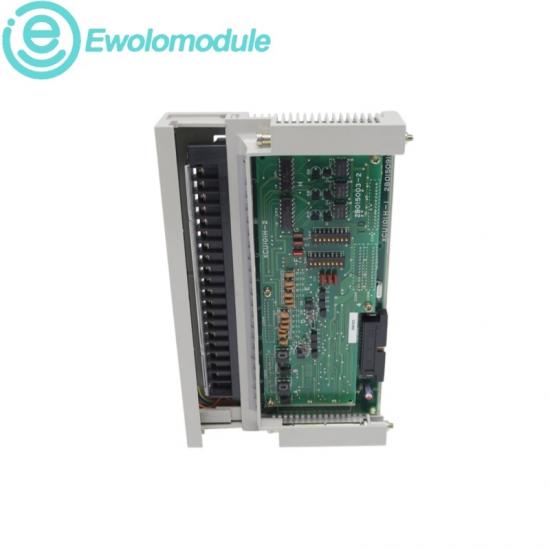

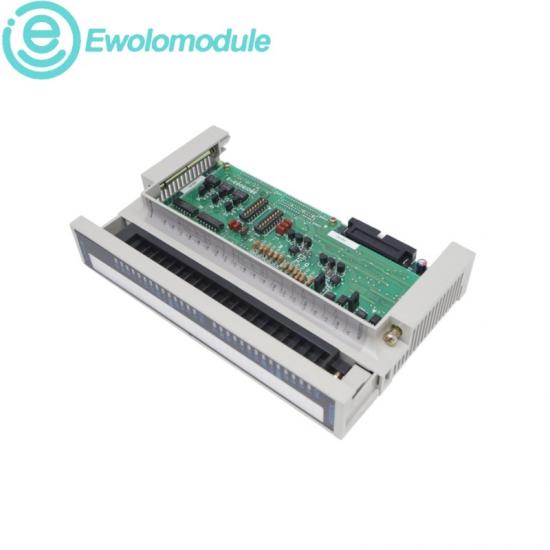

Hitachi XCU232H

H-Series · 32-bit two-channel counter module

Product snapshot

This H-Series counter module processes rapid pulse trains for position, speed and production-counting tasks. Verify the input level, counting mode and installed rack configuration before commissioning.

CONDITION

New Original

WARRANTY

One year

+86 17359287459 sales9@apterpower.com

Explore other Hitachi products →

Certification, standards & system fit

Documentation-led checks for high-speed pulse integration

Certification & Standards

Confirm the original nameplate, Hitachi H-Series hardware manual and the machine’s electrical-safety requirements before installation.

Encoder power, shield grounding, pulse wiring and cabinet protection must follow the project drawings and applicable local standards.

Compatibility & Interoperability

XCU232H is a 32-bit two-channel counter module for Hitachi H-Series installations and is intended for high-speed pulse acquisition.

Match the rack slot, 10–26 V input level, counting mode, pulse frequency and sequence-program configuration before replacement.

Official technical data

Model
XCU232H

Module type
High-speed counter input

Counter width
32-bit

Counter channels
2

Pulse frequency
100 kHz / 5 kHz selectable

Input level
10–26 V DC

Internal current
0.16 A at 5 V DC

Module dimensions
3.5x21x13cm

Use the exact product label and system documentation as the final engineering authority.

Hitachi brand characteristics

Hitachi industrial automation hardware is recognized for robust modular design, stable field performance and long lifecycle support across established control platforms.

Application fields

Encoder feedback, production counting, conveyor monitoring, packaging machinery, position tracking and speed-measurement tasks in H-Series systems.
