01 / PRODUCT DETAILSSYSTEM 57 / 5701

Honeywell · GAS DETECTION

05701-A-0301

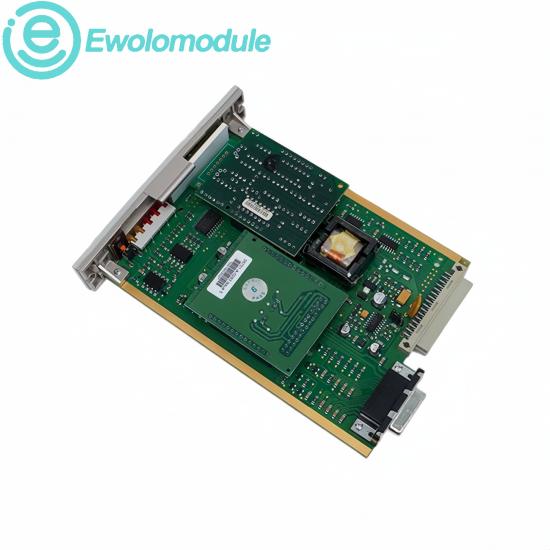

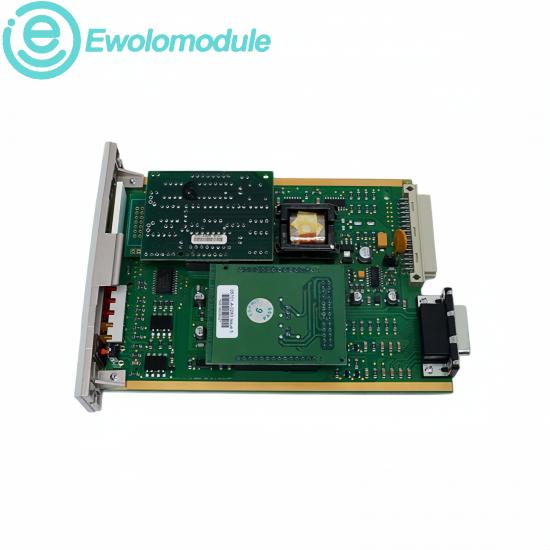

Single-Channel 4-20mA Control Card

Dedicated gas-detection channel control for established System 57 racks

PRODUCT ROLE

Single-loop signal processing, display and alarm decision hardware.

SYSTEM FIT

Use with the specified 4-20mA sensor drive, rack and relay/interface arrangement.

Product overview

The card processes one connected gas-detector loop, presents channel status locally and coordinates configured alarm actions within a Honeywell System 57 installation.

CONDITIONNew Original

WARRANTYOne year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other Honeywell products →

02 / PERFORMANCE & USE

Performance & Efficiency

In the 4-20mA configuration, typical consumption is 3.25W. Electronic drift is specified below ±2% over six months, while the local segmented display and status LEDs give operators immediate channel visibility without a separate HMI.

Application Scenarios

Designed for one gas-detector loop in a System 57 subrack. It supports fixed toxic or combustible-gas monitoring where local A1, A2 and A3 alarm indication, fault visibility and linkage through compatible relay/interface cards are required.

Technical data

Input signalSingle-channel 4–20mA

DC supply18–32VDC

Typical consumption3.25W

Local display25-segment analogue + 4-character digital

Alarm stagesA1 / A2 / A3

Electronic driftLess than ±2% over 6 months

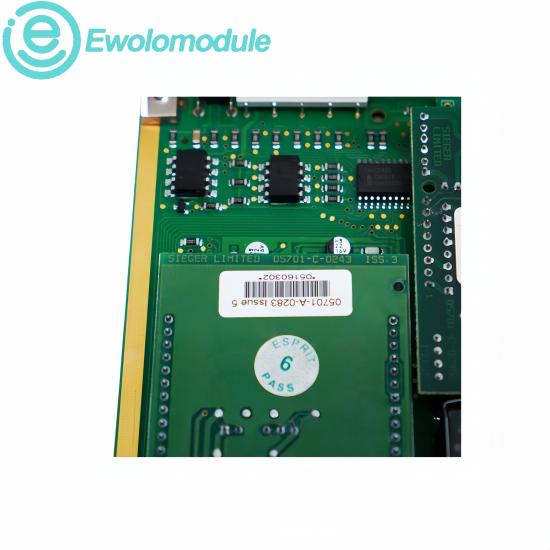

Sensor drive05701-A-0283

Optional output05701-A-0285 analogue module

03 / BRAND & APPLICATIONS

Brand characteristics

Safety instrumentation

Honeywell Analytics hardware is built for continuous fixed-gas monitoring.

Modular architecture

Individual channels, interfaces and relay functions are serviceable by module.

Operator visibility

Local display, LEDs and reset controls support rapid field assessment.

Lifecycle continuity

Documented part numbers protect long-lived System 57 installations.

Application fields

Oil and gas

Toxic and combustible-gas detection around process equipment.

Chemical plants

Single-point monitoring near storage and reaction areas.

Power generation

Gas alarms in turbine, fuel and battery-support spaces.

Marine and offshore

Fixed detector loops on platforms and vessels.

Product references

Honeywell

C300

CC-PCNT02

CC-TDIL01

CC-PAIH01

CC-PAOH01

51305072-600

51309241-125

TC-PPD011

FC-PSU-UNI2450U

05701-A-0301

05701-A-0302

05701-A-0328

05701-A-0361

900G32-0102

8C-PAINA1

8C-PAONA1

8C-PDILA1

8C-PDODA1

51403645-400

MU-TAIH12

HIMA

F8650X

F8627X

F6217

F3236

F3330

F7126

F7553

F7133

F8652X

F8641

F60DIO24/16

F35

X-CPU 01

X-DI 32 01

X-DO 24 01

X-AI 32 01

Z7138

Z7128

K9203

BV7046-4

04 / SERVICE & POLICY

Quote

IDENTIFY

Provide 05701-A-0301, the installed System 57 rack reference and required quantity.

VERIFY

Confirm the System 57 rack, 4-20mA sensor drive, detector loop type, relay/interface card and configured alarm strategy before quotation.

QUOTE & DELIVERY

State the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation.
