01 / PRODUCT DETAILSTDC 3000

Honeywell · PROCESS CONTROL

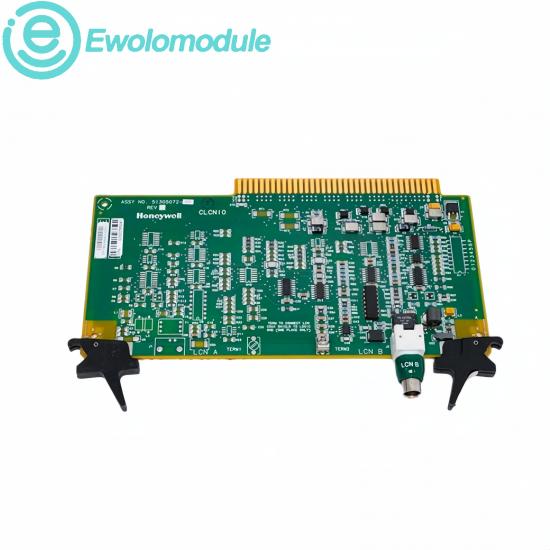

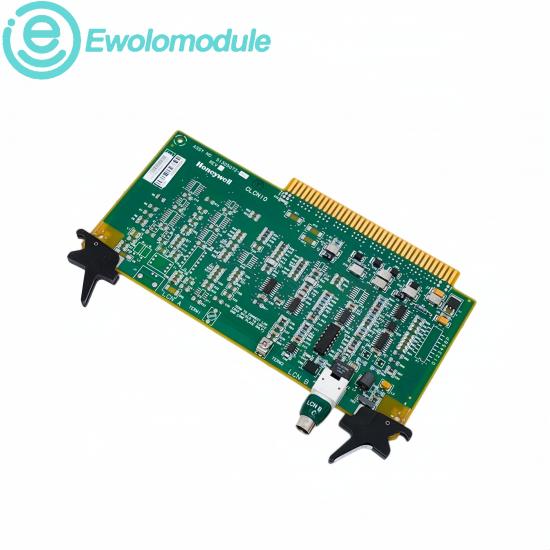

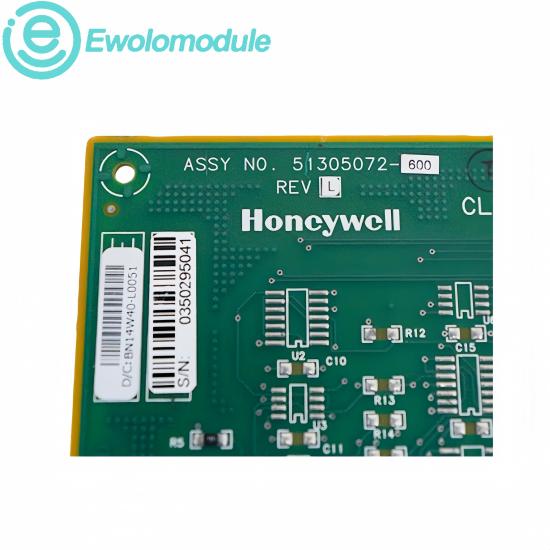

51305072-600

Input Output Board

Field-signal interface board for established Honeywell TDC 3000 control systems

PRODUCT ROLE

Interfaces field I/O with the compatible TDC 3000 control assembly.

SYSTEM FIT

Match the complete part number, dual-node arrangement and installed connectors.

Product overview

The 51305072-600 board provides the installed TDC 3000 assembly with a dedicated path for process signals and system-side I/O exchange. Confirm the board revision and node arrangement before replacement.

CONDITIONNew Original

WARRANTYOne year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other Honeywell products →

02 / PERFORMANCE & USE

Performance & Efficiency

The board supports a nominal 12–24VDC operating range with low current demand and multi-channel signal handling. Its dedicated system interface preserves deterministic I/O exchange inside established Honeywell control installations.

Application Scenarios

Used for maintenance of TDC 3000 process-control cabinets in refining, chemicals, power and utilities. Typical work includes restoring a failed I/O path, replacing an aged board and maintaining a documented dual-node configuration.

Technical data

Operating range12–24VDC

Current rating50mA

Input capacity16 channels

Output capacity16 channels

CommunicationSystem I/O interface

Node arrangementDual-node support

System platformTDC 3000

InstallationPlug-in board

03 / BRAND & APPLICATIONS

Brand characteristics

Process-control heritage

Honeywell TDC hardware supports long-life continuous-process installations.

System integration

Dedicated control and I/O layers preserve predictable plant operation.

Service structure

Board-level replacement supports planned outage maintenance.

Documentation discipline

Part numbers and revisions identify the installed configuration.

Application fields

Oil refining

Process signal exchange in TDC 3000 cabinets.

Chemical plants

Continuous control of reactors, utilities and material handling.

Power generation

Auxiliary-process and balance-of-plant automation.

Lifecycle service

Replacement support for mature Honeywell systems.

Product references

Honeywell

C300

CC-PCNT02

CC-TDIL01

CC-PAIH01

CC-PAOH01

51305072-600

51309241-125

TC-PPD011

FC-PSU-UNI2450U

05701-A-0301

05701-A-0302

05701-A-0328

05701-A-0361

900G32-0102

8C-PAINA1

8C-PAONA1

8C-PDILA1

8C-PDODA1

51403645-400

MU-TAIH12

HIMA

F8650X

F8627X

F6217

F3236

F3330

F7126

F7553

F7133

F8652X

F8641

F60DIO24/16

F35

X-CPU 01

X-DI 32 01

X-DO 24 01

X-AI 32 01

Z7138

Z7128

K9203

BV7046-4

04 / SERVICE & POLICY

Quote

IDENTIFY

Provide 51305072-600, board revision, installed node reference and required quantity.

VERIFY

Confirm TDC 3000 cabinet, board slot, dual-node arrangement, mating connectors and current hardware revision before quotation.

QUOTE & DELIVERY

State the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation.
