TDC 3000 APPLICATION MODULE
HONEYWELL
51304159-100
AMR I/O Board
SYSTEM FAMILY
TDC 3000 Application Module
CONTROL FUNCTION
Redundant Application Module interface board for legacy control nodes

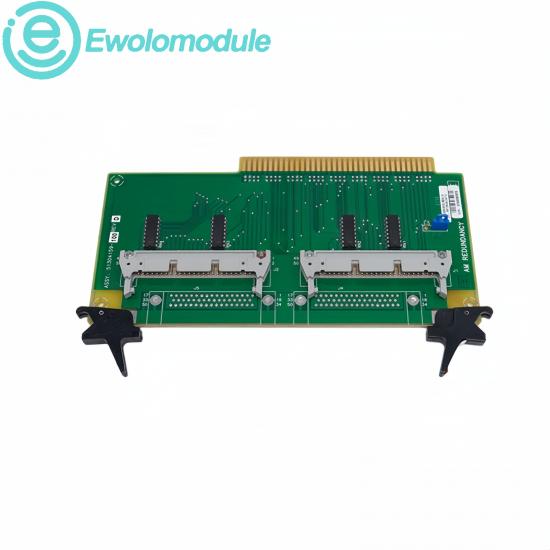

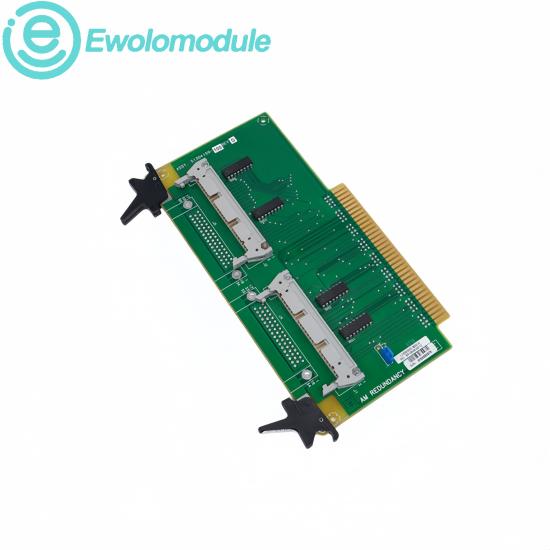

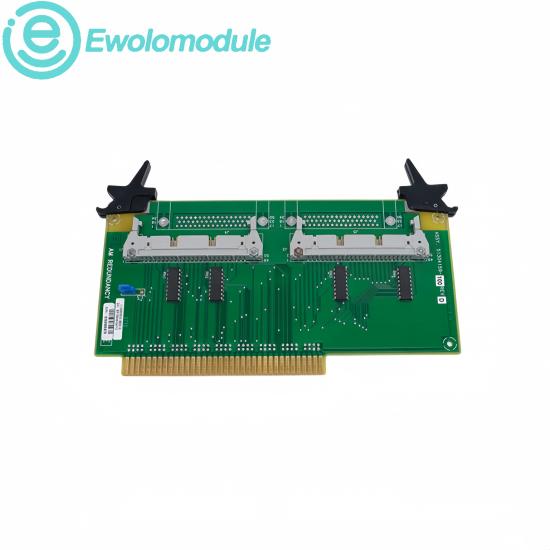

Honeywell 51304159-100 AMR I/O board for redundant TDC 3000 Application Module installations.
PRODUCT ROLE
AMR I/O Board
SYSTEM FIT
Match the AM redundancy arrangement and non-CE hardware revision
Firmware & Updates
The AMR I/O board is coordinated with Application Module hardware and system software; it is not treated as a separately upgraded firmware target.
Capture the AM node identity, redundancy status, cable routing and current system release before service. Replace only under controlled switchover procedures and verify primary-secondary synchronization.
Application Scenarios
Used in redundant TDC 3000 Application Module nodes to maintain the hardware path between paired AM assemblies.
Service applications include redundancy restoration, planned board replacement and lifecycle maintenance in continuous-process plants.
Technical data
BOARD FUNCTION
AM redundancy I/O
SYSTEM FAMILY
TDC 3000
NODE TYPE
Application Module
REDUNDANCY MODE
Primary / secondary AM
INTERCONNECT
AM redundancy cabling
HARDWARE CLASS
Non-CE legacy board
INSTALLATION
AM chassis mounting
SERVICE ROLE
Redundant node interface
Verify the complete product marking, installed-system revision and field configuration before commissioning.
Brand characteristics
Application fields
Process-control heritage
Honeywell Application Modules support deterministic plant-control functions.
Oil & gas
Redundant control-node service for continuous units.
Redundancy focus
Paired node architecture maintains a synchronized backup path.
Chemicals
Application Module maintenance during planned outages.
Revision discipline
Board code, cable set and AM generation must be matched.
Power plants
Legacy supervisory and process-control support.
Lifecycle service
Documented spares sustain mature DCS installations.
System recovery
Restoration of failed AM redundancy paths.
