HONEYWELL
51304540-200
LCNE2 Paddle Board
SYSTEM FAMILY
TDC 3000 LCN
CONTROL FUNCTION
Fiber interface paddle board for LCN extender hardware

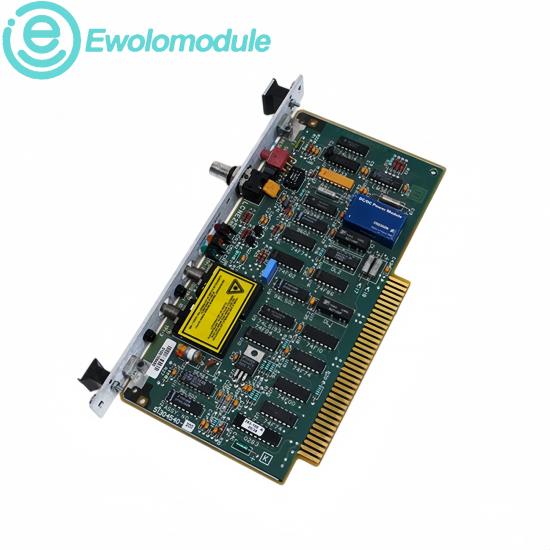

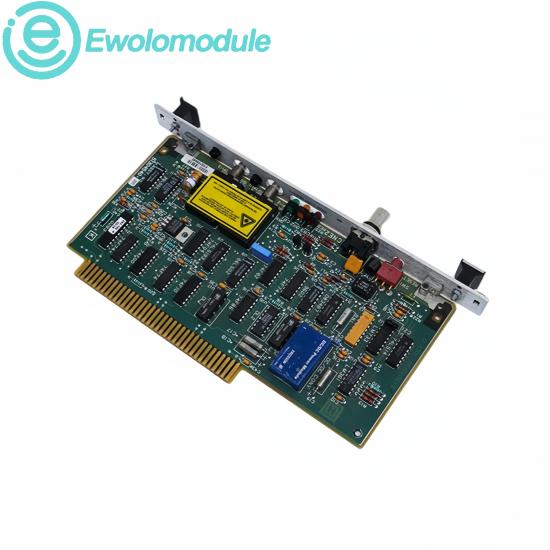

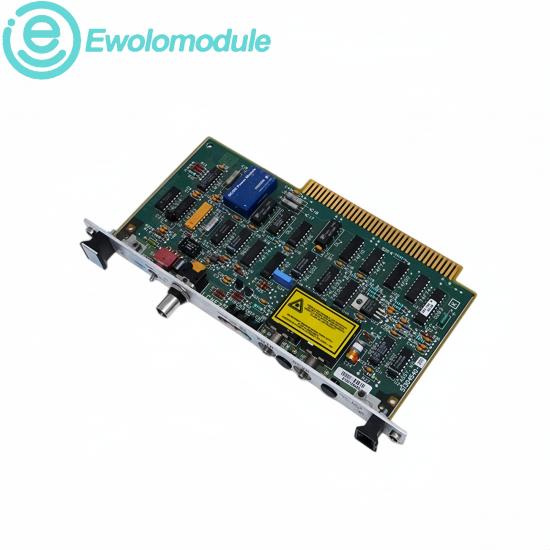

Honeywell 51304540-200 LCNE2 paddle board for compatible TDC 3000 Local Control Network extender assemblies.
PRODUCT ROLE
LCNE2 Paddle Board
SYSTEM FIT
Use with compatible non-CE LCNE2 hardware and matching fiber links
Firmware & Updates
This passive interface board does not receive a standalone firmware load. Its service compatibility is governed by the installed LCNE2 assembly, LCN node revision and the host system release.
Record the extender revision, fiber-port assignment and installed LCN topology before replacement. Restore the original link routing and verify node communication after power-up.
Application Scenarios
Used in TDC 3000 Local Control Network extender installations where optical isolation or distance extension is provided through compatible LCNE2 hardware.
Typical service work includes restoring a failed fiber path, replacing a damaged paddle board and maintaining installed process-control networks without redesigning the node architecture.
Technical data
BOARD FUNCTION
LCNE2 paddle interface
NETWORK FAMILY
Local Control Network
OPTICAL INTERFACE
Dual SMA fiber ports
HOST ASSEMBLY
LCNE2 extender
SYSTEM PLATFORM
TDC 3000
INSTALLATION
Paddle-board mounting
COMPATIBILITY
Non-CE LCNE2
SERVICE STATUS
Legacy spare hardware
Verify the complete product marking, installed-system revision and field configuration before commissioning.
Brand characteristics
Application fields
LCN heritage
Honeywell TDC 3000 networking hardware supports long-life process-control installations.
Refining
Legacy LCN communication across process-area nodes.
Revision discipline
Assembly revision, board code and node topology are treated as one installed configuration.
Chemicals
Redundant control-network maintenance in continuous plants.
Optical integration
SMA fiber connections support electrically isolated network extension.
Power generation
Installed TDC 3000 node and extender service.
Lifecycle support
Matched spares help sustain established control systems during planned migration.
Lifecycle projects
Like-for-like replacement during controlled outages.
