KLA INSPECTION PLATFORM |
|
KLA · SEMICONDUCTOR EQUIPMENT HARDWARE
23663-001 FAB 23662-000 941302

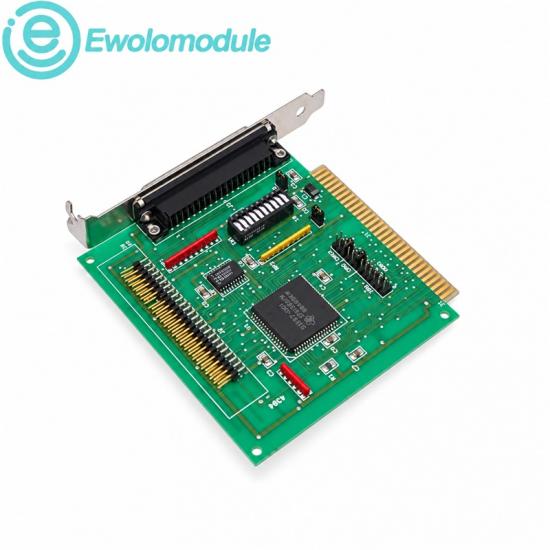

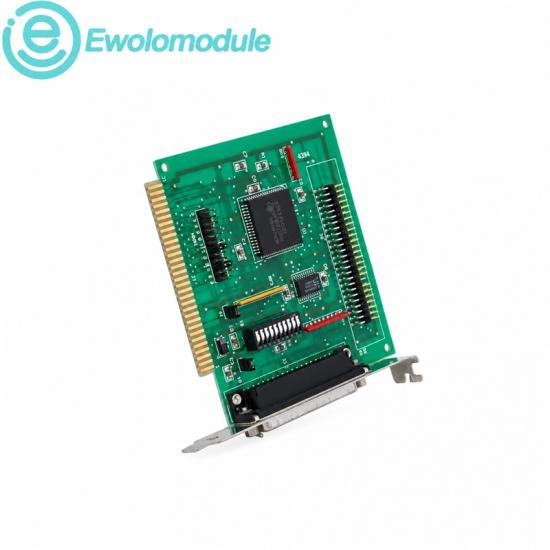

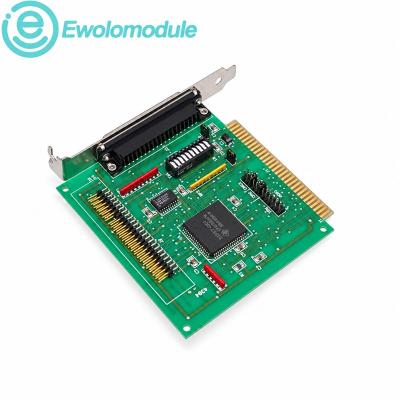

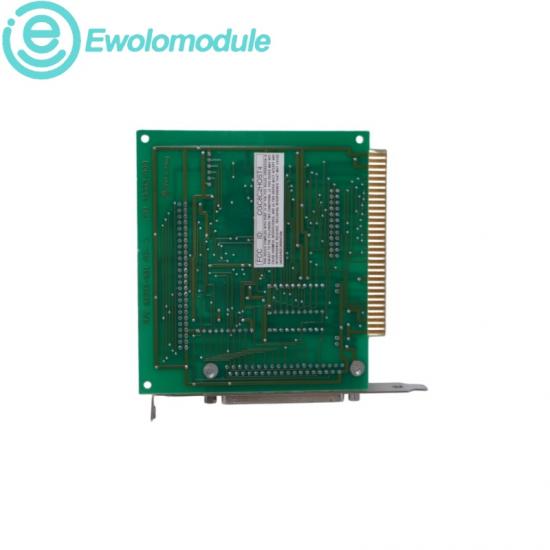

Communications Board
Communications PCB identified for compatible KLA wafer-inspection system assemblies.
|
FUNCTION POSITION
Internal data exchange
Carries subsystem communication within the inspection equipment electronics chassis.
|
|
CONDITION
New Original
|
WARRANTY
One year
|
DIRECT CALL
|
EMAIL
|
| 02 |
FIRMWARE, UPDATES & CONNECTIVITY |
SERVICE PLANNING |
|
Firmware & Updates
This PCB is serviced as a hardware assembly; retain the equipment software baseline and board revision records before replacement. Do not alter inspection-system configuration solely because the board is changed.
|
Communications & Connectivity
Confirm the chassis slot, mating connectors and internal communication path against the installed KLA system. Use ESD controls and preserve cable orientation during handling.
|
Technical data
| Assembly drawing |
23663-001 |
Fabrication number |
23662-000 |
| Item number |
941302 |
Known host system |
KLA 2132 |
| 03 |
BRAND CHARACTERISTICS & APPLICATION FIELDS |
SYSTEM CONTEXT |
|
Brand characteristics
| Metrology focus |
KLA hardware is engineered for semiconductor inspection and measurement systems. |
| Revision discipline |
Drawing, fabrication and item numbers support traceable spare control. |
| Signal integrity |
Board-level construction supports reliable internal equipment communication. |
| Service precision |
Exact slot and revision matching reduces recommissioning risk. |
|
Application fields
| Wafer inspection |
Internal communication service for compatible KLA inspection tools. |
| Semiconductor fabs |
Maintenance support within controlled cleanroom equipment areas. |
| Metrology systems |
Data-path hardware in precision measurement platforms. |
| Equipment lifecycle |
Spare-board management for established inspection assets. |
|
