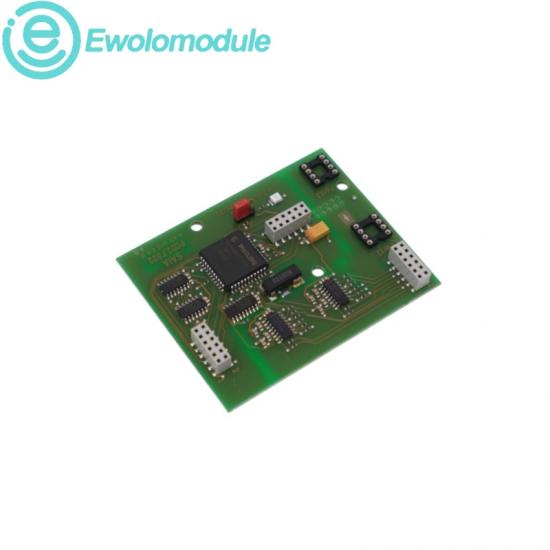

PCD2.F522
Full RS-232 Interface Module
Selectable serial-interface module for compatible Saia PCD1 and PCD2 controller sockets.
|
FUNCTION POSITION
Serial port expansion
Adds full-handshake RS-232 connectivity for peripherals or external modem links.
|
|
CONDITION
New Original
|
WARRANTY
One year
|
DIRECT CALL
|
EMAIL
|
| 02 |
FIRMWARE, UPDATES & CONNECTIVITY |
SERVICE PLANNING |
|
Firmware & Updates
The module itself does not carry the user control program. Confirm controller firmware support and preserve the CPU communication configuration before changing the interface hardware.
|
Communications & Connectivity

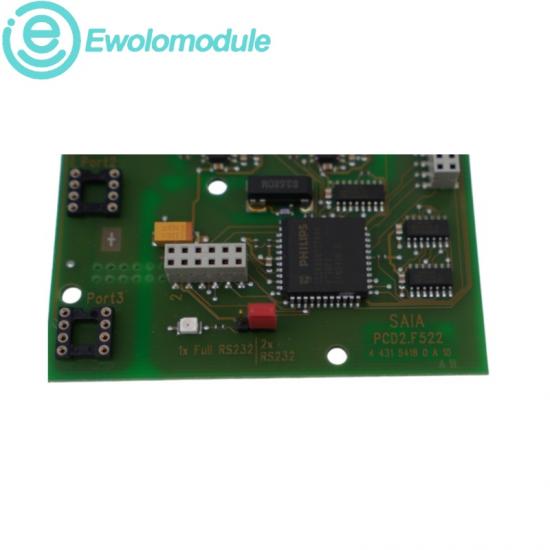

PCD2.F522 can be selected for two RS-232 ports or one full-handshake RS-232 connection. Match the socket, port number and terminal assignment to the controller manual.
|
Technical data
| Selectable mode |
2x RS-232 / 1x full RS-232 |
Compatible sockets |
B / B1 / B2 |
| Port assignment |
#2 / #4 |
Modem support |
Yes |
| 03 |
BRAND CHARACTERISTICS & APPLICATION FIELDS |
SYSTEM CONTEXT |
|
Brand characteristics
| Modular communication |
Plug-in interfaces extend PCD controllers without replacing the CPU. |
| Mode flexibility |
Selectable serial arrangements cover peripheral and modem links. |
| Documented pinout |
Terminal assignments are defined in the PCD1/PCD2 hardware manual. |
| Compact service part |
Small form factor supports straightforward controller maintenance. |
|
Application fields
| Machine control |
Serial peripherals connected to Saia PCD automation systems. |
| Modem links |
Full-handshake RS-232 communication with supported external modems. |
| Building systems |
Legacy supervisory links in installed PCD controller networks. |
| Service upgrades |
Interface replacement while retaining the existing CPU and program. |
|
