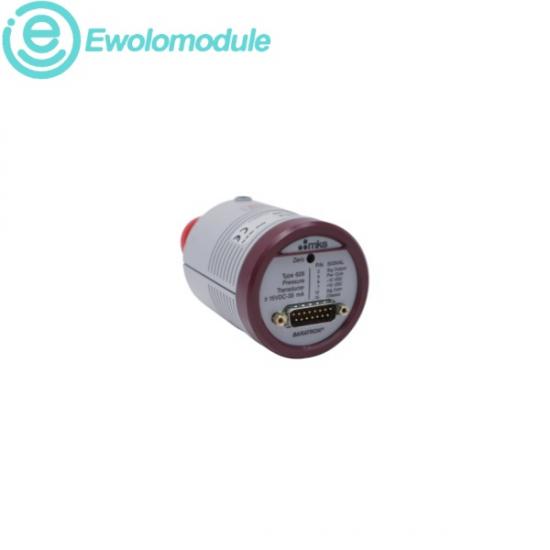

The MKS 626A01TDE is a high-performance, unheated absolute pressure transducer engineered for demanding vacuum measurement tasks in industrial, semiconductor, and research processes. Constructed with a corrosion-resistant, all-welded Inconel® sensor element, this instrument directly gauges total absolute pressure without suffering from zero drift or chemical degradation from harsh process gases. It operates on an analog capacitance circuit to deliver a high-level, precise 0-10 VDC output signal that scales linearly with pressure, making it ideal for integration into medical systems, thin-film deposition equipment, and general vacuum chambers.

Full Scale Pressure Range: 1 Torr

Input Power Requirement: ±15 VDC (±5%) regulated input voltage

Operating Current: 35 mA nominal input current draw

Output Signal: 0 to 10 VDC analog output

Measurement Accuracy: 0.25% of Reading standard accuracy threshold

Overpressure Safety Limit: 45 psia

Ambient Operating Temperature: 0°C to +50°C (32°F to 122°F)

Sensor Internal Volume: 6.3 cm³
