Product& Details

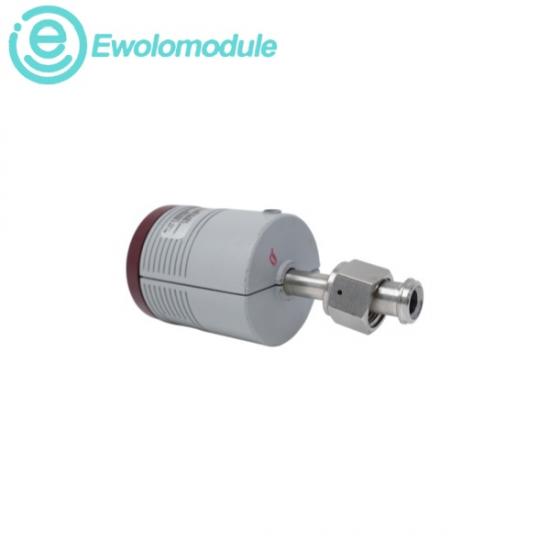

The MKS 626A13TBE is a high-precision, unheated absolute pressure transducer engineered to perform reliable and repeatable vacuum measurements in demanding industrial, semiconductor, and thin-film deposition systems. Fabricated with a robust, all-welded Inconel® nickel alloy sensor element exposed to the process environment, it tracks chamber total pressure perfectly independent of gas type or chemical composition. The instrument translates the microscopic movements of its internal tensioned diaphragm into a precise, linear 0–10 VDC analog output signal, protecting the process data stream against electromagnetic interference and high pressure spikes.

Full Scale Pressure Range: 1000 Torr / 133.32 kPa

Input Power Requirement: ±15 VDC (±5%) regulated dual-voltage supply

Operating Current Limit: 35 mA nominal input current draw

Output Signal Voltage: 0 to 10 VDC high-level analog output

Measurement Accuracy: 0.25% of Reading

Resolution Threshold: 0.001% of Full Scale pressure range

Overpressure Safety Burst Limit: 45 psia (310 kPa) structural pressure threshold

Ambient Operating Temperature: 0°C to +50°C (32°F to 122°F)

Application Industry

❖Power industry, the elevator industry, parking lot, automobile, automobile supporting.

❖Feed industry, aluminum smelting machinery, refrigeration industry.

❖Iron and steel industry, combustion control system, non-ferrous metal smelting.

❖Glass industry, engineering machinery, textile machinery, water treatment.
