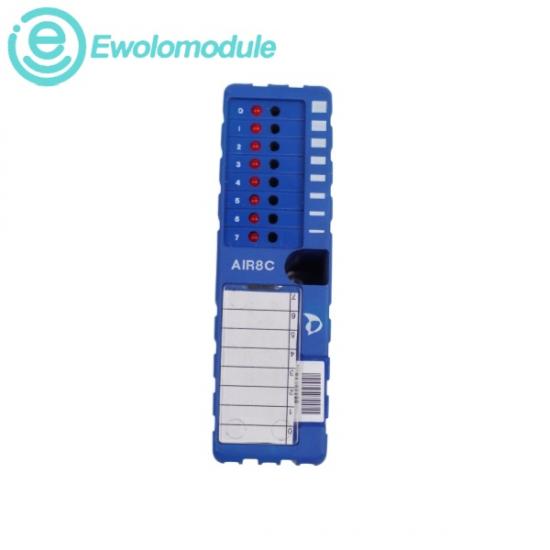

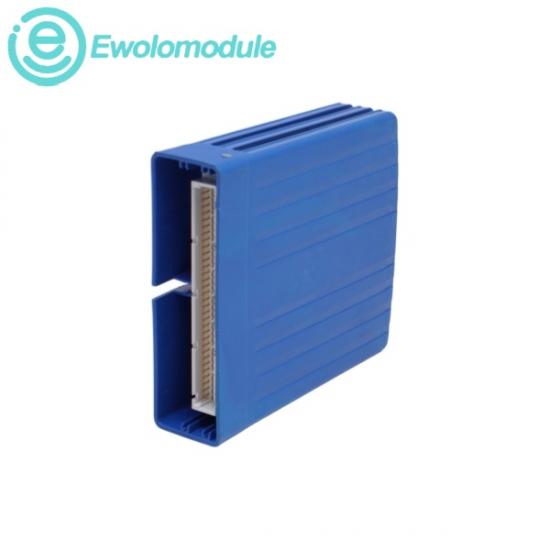

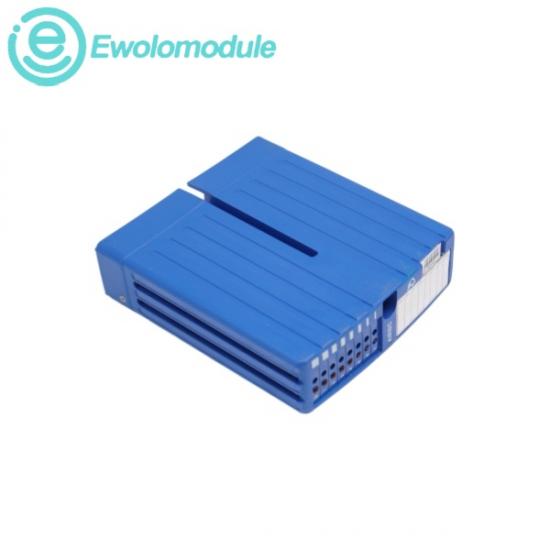

The NELES AUTOMATION A413295 AIR8C is a versatile Programmable Logic Controller (PLC) module designed for efficient and reliable automation tasks in industrial environments. It functions as a robust signal gateway, capturing standard low-current linear field loops from process instrumentation and converting them into filtered, high-density voltage signals. Equipped with built-in component jacks and individual multi-channel isolation barriers, this card provides reliable telemetry processing by filtering common-mode electrical noise and eliminating system ground loops across intensive automation networks.

² Standard Input Signals: 4–20 mA, 0–20 mA direct current loops

² Split Range Compatibility: Supports 4–12 mA and 12–20 mA channel tracking

² Maximum Input Resistance: Rated up to 190 Ω

² Operating Temperature Limits: High endurance index spanning from -25°C to +85°C (-15°F to +185°F)

² Relative Operational Humidity: 5% to 95% non-condensing climate levels

(1) DCS Process Monitoring: Serves as a vital analog telemetry interface board tracking real-time fluid flow, pressure, and tank levels within MetsoDNA automation loops.

(2) Intelligent Valve Control Interfacing: Connects directly with heavy-duty pneumatic actuator loops, feedback shafts, and rotary valve configurations to map physical position alignments.

(3) Industrial Electrical Isolation: Deployed inside process control cabinets across paper mills and chemical plants to safeguard primary CPU racks from external field surges.
