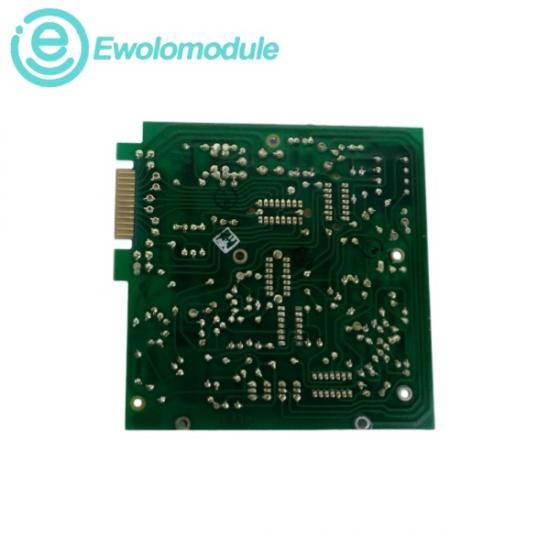

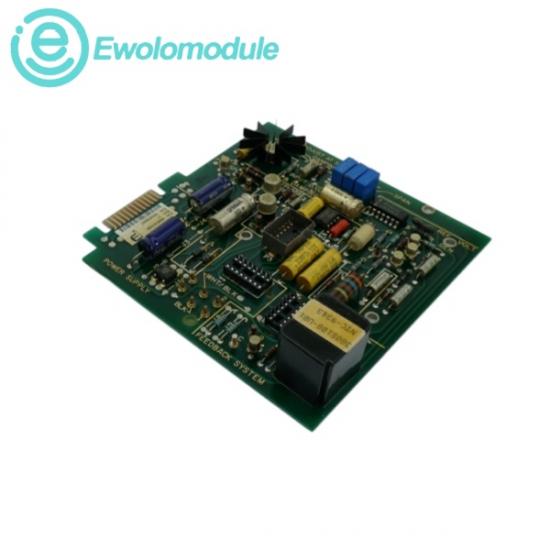

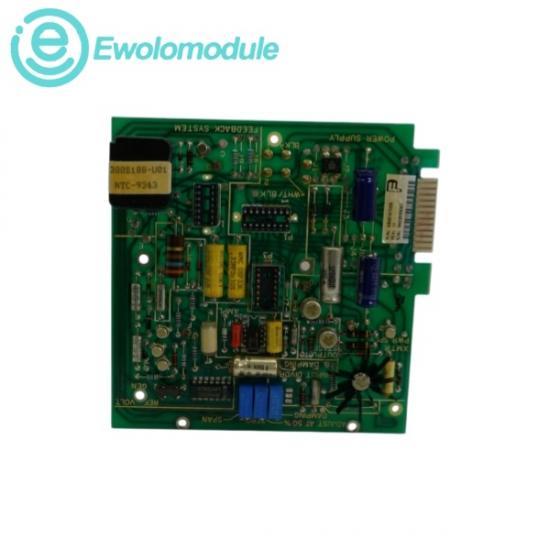

The Fischer Porter 686B167U05 is an industrial-grade PC controller amplifier board designed for high-performance control systems, offering precise amplification and signal processing capabilities. Functioning as an add-on or dedicated controller amplifier, it bridges low-level input signals originating from heavy field instrumentation sensors (such as electromagnetic or vortex shedding flowmeters) and transforms them into stable, interference-free linear frequency or current values required by central computing nodes.

² Logic Input Power: Primarily driven via a stable +24V DC loop or secondary ±15V DC instrument-grade power rail

² Operating Temperature Limits: Standard indoor process cabinet environments from 0°C to +55°C (+32°F to +131°F) under convection airflow

² Storage Environment Range: Fully protected from -40°C to +75°C (-40°F to +167°F)

² Relative Operating Humidity: 5% to 95% non-condensing atmosphere index

(1) Flowmeter Signal Conditioning: Amplifies weak, fluctuating primary electromotive forces or vortex frequencies into robust linear telemetry signals within Fischer & Porter flow measurement frameworks.

(2) Industrial Process Loop Optimization: Integrates natively within DCS or PLC sub-rack modules to maintain exact physical parameters during liquid dosing and chemical filling cycles.

(3) Galvanic Noise Isolation: Serves as a vital protective and noise-filtering buffer stage inside instrumentation cabinets to eliminate cross-talk and ground loop interference.
