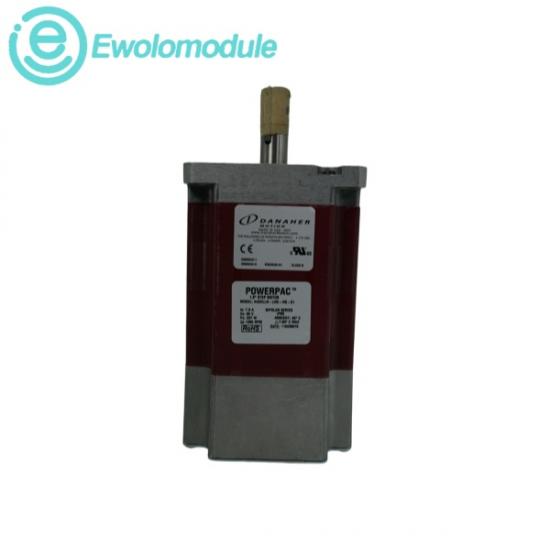

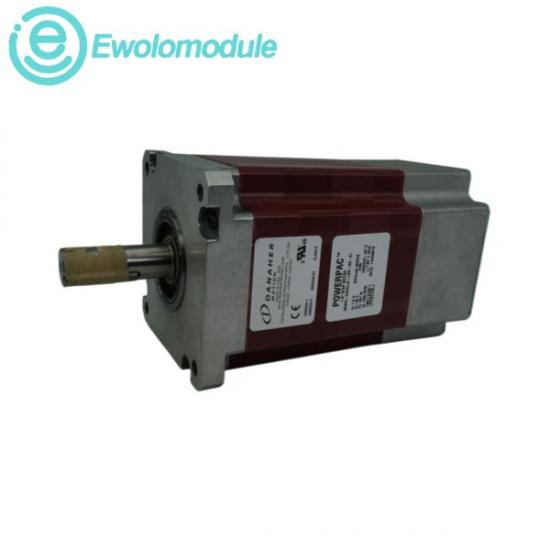

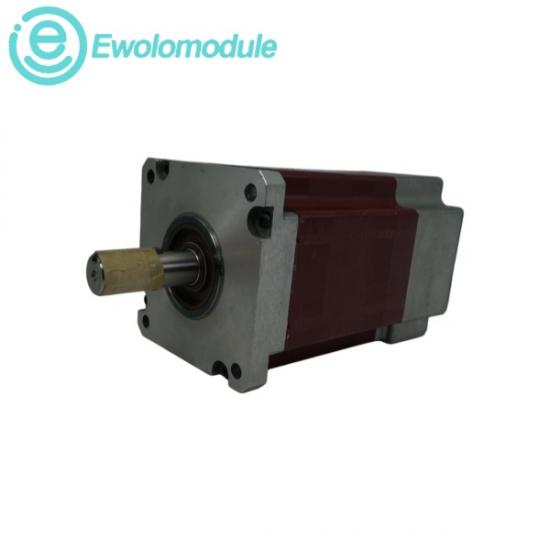

The Pacific Scientific K42HLHN-LNK-NS-01 is a high-performance, two-phase industrial hybrid stepper motor built inside a rugged, housingless square NEMA 42 frame format. This device yields up to 25% higher torque density and running acceleration margins than conventional alternative designs. Operating on a standard 1.8-degree step angle without requiring active physical feedback elements, it leverages robust front-locked steel bearing inserts and a parallel winding layout to ensure dynamic, highly repeatable step-indexing precision while keeping thermal operational losses to an absolute minimum.

² Bipolar Phase Rated Current: 7.9 A (DC) continuous rating

² Nominal Operating Voltage: Optimized for 65V DC chopper drive baselines

² Maximum Shaft Speed: Rated up to 1350 RPM under standard power loads

² Operating Ambient Temperature: Stable factory environmental thresholds from -20°C to +40°C (-4°F to +104°F)

(1) High-Accuracy Industrial Indexing: Deployed inside automated conveyor systems, bulk material handling, and multi-axis assembly tables requiring high repeatable holding torque without positioning drift.

(2) Packaging and Material Feeders: Drives high-load pick-and-place manipulator heads, labelling lines, and labeling machine indexing axes experiencing frequent start-stop duty cycles.

(3) Alternative Servo System Replacements: Acts as a cost-effective positioning drive alternative to complex brushless servo motors within heavy-duty industrial machinery.
