- Description -

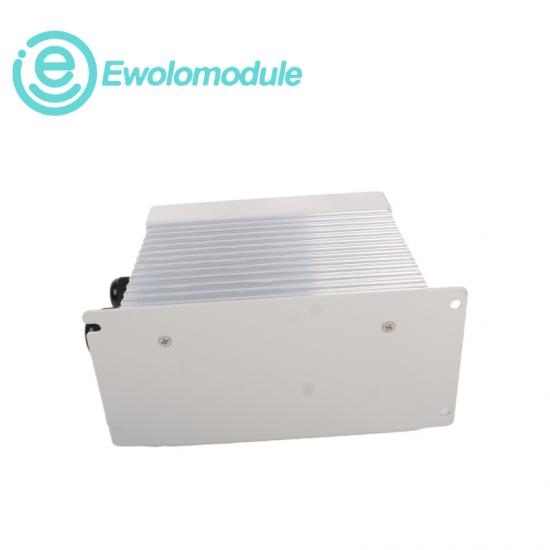

The NTN K-ECJ45 is a high-function variable frequency controller (VFC) manufactured by NTN Corporation of Japan. It is primarily used to control the vibration frequency and amplitude of parts feeders (such as vibrating plates and linear feeders).

- Specifications -

Control Capacity: 4.5 A continuous; 5.0 A short-term (within 30 minutes)

Input Voltage: AC 100–115V / 200–230V (auto-switching)

Frequency Setting Range: 30.0–500.0 Hz (at 20 kHz carrier frequency)

Output Voltage Range: Automatically switches between 0–100V and 0–200V depending on input voltage

Function Modes: Constant Voltage, Constant Amplitude, and Resonance Tracking

Sensor Accessory: Use with the K-P1398 vibration sensor (accelerometer type) to support constant amplitude control and resonance tracking functions

Protection/Alarm Motor overload, frequency anomaly, vibration anomaly, and other protection and alarm functions

Appearance/Enclosure rating: IP20

- Parker Hannifin's COMPAX-SL series -

Parker Hannifin's COMPAX-SL series is a high-performance, digital servo drive designed for precision motion control applications.

This series covers a power range from 1 kVA to 35 kVA and is suitable for a variety of industrial automation applications, including machinery protection, robotic control, automation equipment, conveyor systems, packaging equipment, textile and woodworking machinery, and more.

The COMPAX-SL series supports resolvers or SinCos® encoders as feedback devices and offers a wide range of communication interfaces, including RS232, HEDA real-time bus, and fieldbus options such as RS485, CANopen, Profibus, Interbus-S, and CAN-Bus CS31.

This series of servo drives features digital I/O, analog override inputs, step-direction control, motor brake control, external resistance resistor support, command memory for power-off protection, and programmable ramp configuration to meet diverse motion control needs. The COMPAX-SL series achieves 16-bit resolution and ±15 arc minutes absolute accuracy in positioning performance, while supporting regeneration mode and voltage/temperature monitoring functions to ensure high reliability and safety.
