- Description -

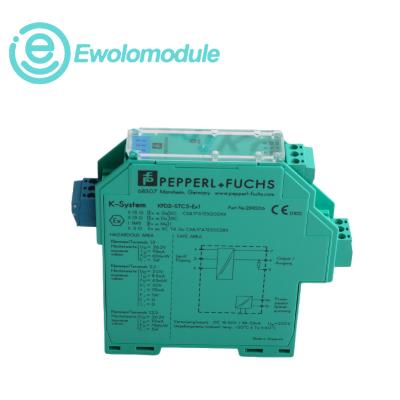

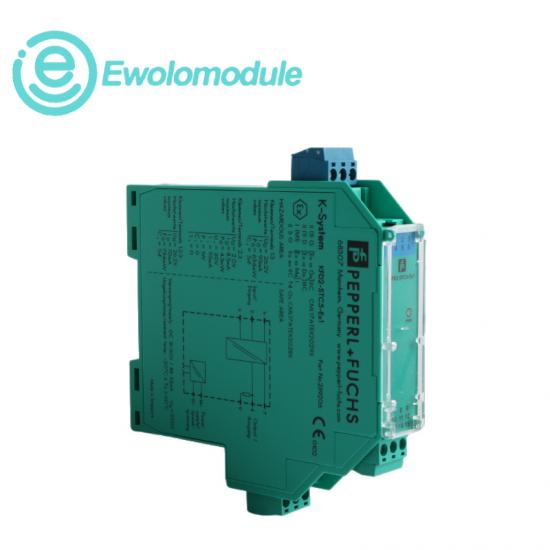

The KFD2-STC5-1 is a 1-channel signal conditioner / SMART transmitter power supply from Pepperl+Fuchs.

It is designed to supply and condition the signal from 2-wire or 3-wire SMART transmitters (HART, BRAIN, Foxboro protocols) and to provide isolation between the field side and control side.

- Specifications -

Channels: 1 channel

Supply voltage (rated): 18 … 30 V DC

Power Rail or terminal supply 24 V DC (Power Rail) available.

Input side: supports 2-wire and 3-wire SMART transmitters + 2-wire SMART current sources.

Output side: 4…20 mA current sink or current source (or 0/4….20 mA according to variant)

Load on output: up to ~800 Ω (for the control side) in typical use.

Galvanic isolation: Input / Output basic insulation rated ~300 V eff per IEC 61010-1.

Ambient temperature: –20 °C to +70 °C.

- Pepperl+Fuchs -

Pepperl+Fuchs, headquartered in Mannheim, Germany, is one of the world's leading manufacturers in the automation field. Since its founding in 1945, Pepperl+Fuchs has been committed to providing high-quality sensor technology and explosion-proof electrical products to the industrial and process automation industries. With its extensive technical expertise and innovative spirit, the company has become a globally recognized expert in industrial sensing and intrinsically safe solutions.

Key Business Areas

• Factory Automation

We specialize in products such as photoelectric sensors, ultrasonic sensors, proximity switches, industrial identification systems (RFID), and positioning and encoding solutions, which are widely used in industries such as machinery manufacturing, packaging, automotive, and logistics.

• Process Automation

We offer a comprehensive product line including explosion-proof isolation barriers, signal conditioning modules, remote I/O systems, intrinsically safe interface devices, and explosion-proof enclosure systems, providing reliable intrinsically safe protection and signal transmission solutions for the chemical, oil and gas, pharmaceutical, and energy industries.
