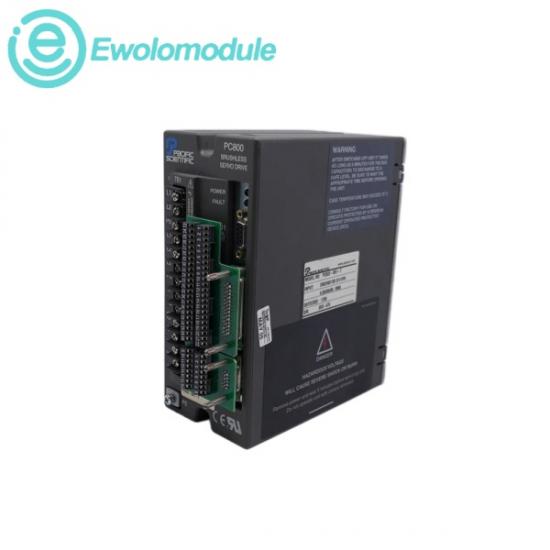

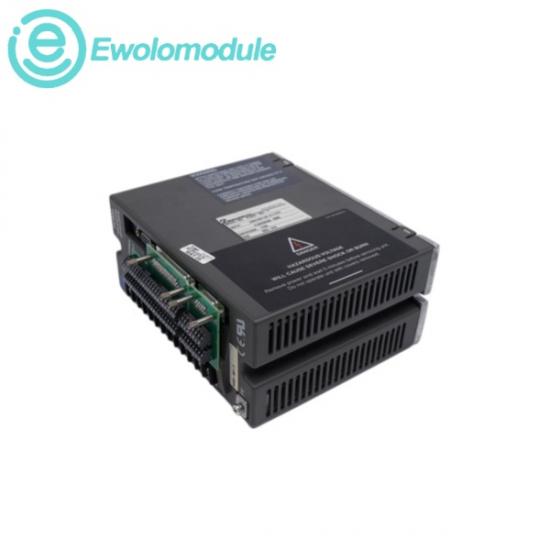

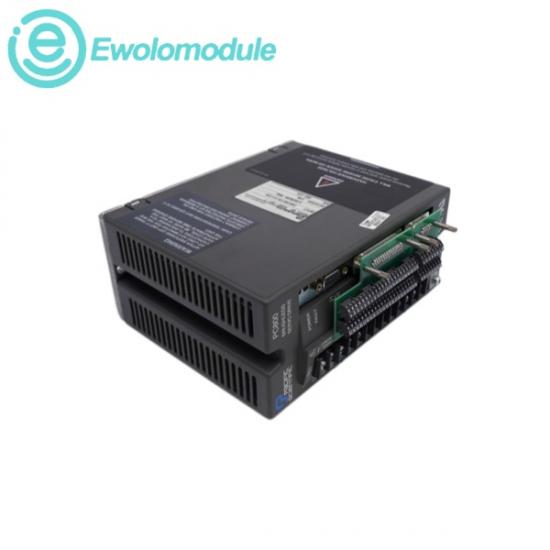

The PACIFIC SCIENTIFIC PC832-001-T is a compact, high-performance digital brushless servo drive engineered to deliver precise closed-loop speed and position management for synchronous servo motors. It relies on an advanced Digital Resolver-to-Digital Conversion algorithm alongside a 400 Hz velocity loop bandwidth to minimize response lag during highly dynamic movements. The "-32" configuration indicates a specific internal power stage coupled with versatile multi-command interface electronics, the "-T" denotes the inclusion of a factory-equipped terminal board adapter kit.

u Input Line Power: 120 V AC or 240 V AC supply options

u Continuous Current Output: 2.7 A RMS

u Peak Current Output: 5.3 A RMS

u Continuous Output Power: 1.1 kW

u Feedback Resolution: Up to 24-bit per revolution

u Operating Ambient Temperature: from 0 °C to +40 °C

❖ Packaging Machinery and Indexers: Powering continuous web feeding, automated box folding, and cartoning lines that rely on fast Step/Direction or analog profile coordination.

❖ Electronic Assembly and Pick-and-Place: Driving small gantry linear motors or multi-axis pick-and-place robots requiring high position tracking accuracy and anti-resonance dampening.

❖ Material Handling and Positioning: Orchestrating localized sorting gates or specialized conveyor pulleys using the built-in, PLC-like digital I/O sequencing logic.
