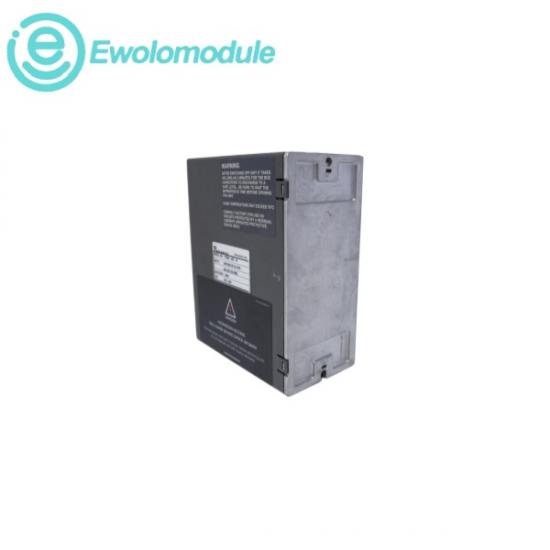

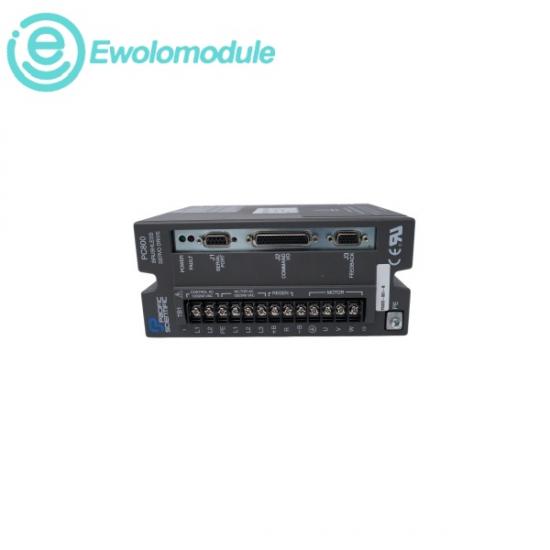

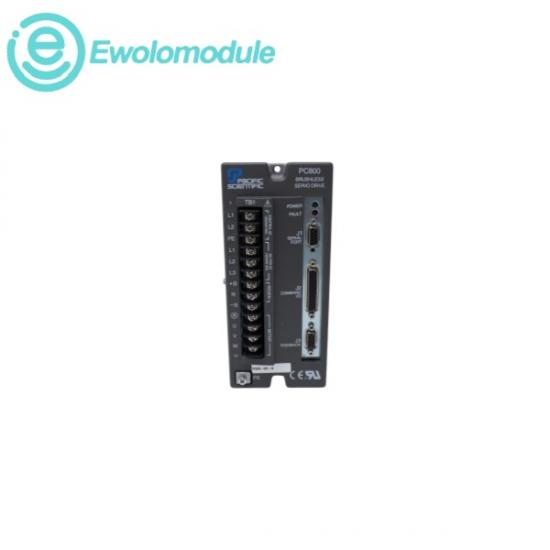

The PACIFIC SCIENTIFIC PC833-001-N is a high-performance, all-digital brushless servo drive designed to provide precise closed-loop speed, torque, and position control for AC synchronous servo motors. It utilizes an advanced Digital Resolver-to-Digital Conversion algorithm coupled with a high 400 Hz velocity loop bandwidth. The model features high-frequency Digital PWM sine wave current control and an integrated IGBT power stage, ensuring quiet and energy-efficient operation in space-constrained enclosures. The "-N" suffix specifically designates a base unit featuring standard high-density connector ports for direct integration without the protruding terminal board accessory kit.

u Input Voltage Range: 90 V AC to 264 V AC

u Continuous Output Current: 3.6 A RMS

u Peak Output Current: 10.6 A RMS

u Continuous Output Power: 1.5 kW

u Command Interfaces: Differential ±10V DC analog

u Feedback Integration: 24-bit position mapping

u Operating Ambient Temperature: 0 °C to +40 °C

❖ Automated Packaging and Indexing: Powering automated cartoning, filling machinery, and synchronized conveyor belt networks requiring high-speed Step/Direction or indexing coordination.

❖ High-Speed Gantry and Robotics: Driving multi-axis pick-and-place arms or coordinate tables where anti-resonance filters are critical to suppress mechanical system vibration.

❖ Textile and Continuous Web Feeders: Managing tensioning lines and material roll feeding by leveraging the drive's wide analog command linearity and rapid current loops.
