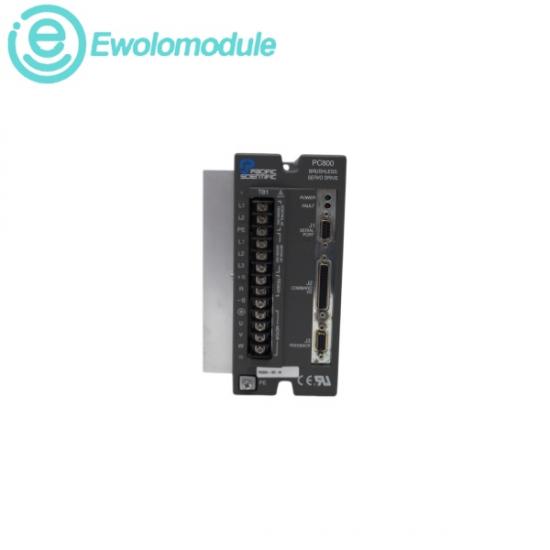

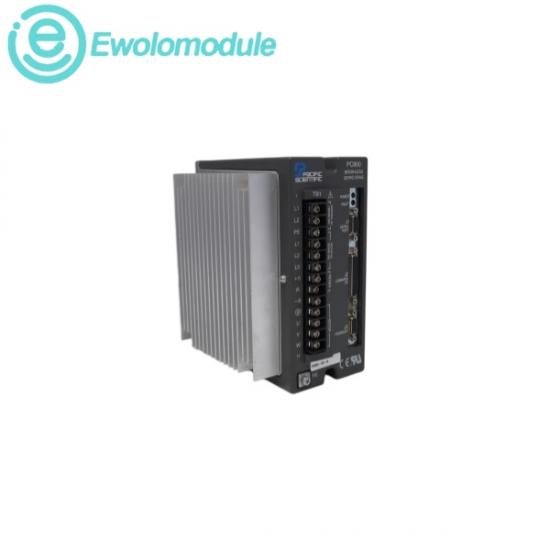

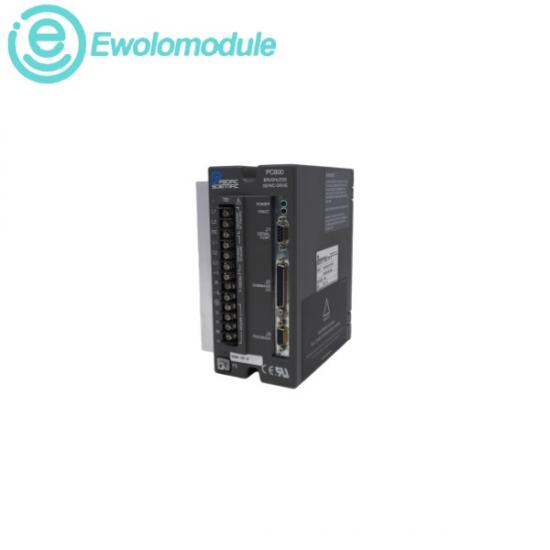

The PACIFIC SCIENTIFIC PC834-107-N is a high-power, all-digital brushless servo drive designed to provide deterministic closed-loop speed, torque, and position management for AC synchronous servo motors. Driven by an advanced Digital Resolver-to-Digital Conversion algorithm, it provides high-frequency PWM sinusoidal current control. The specific "-107" designation identifies a customized or high-output firmware/hardware variant within the 830 series line, while the "-N" suffix denotes the standard base enclosure profile featuring high-density plug-in connectors.

u Input Voltage Range: 90 V AC to 264 V AC

u Continuous Output Current: 7.1 A RMS

u Peak Output Current: 21.2 A RMS

u Continuous Output Power: 3.0 kW

u Feedback Resolution: 24-bit resolution per turn

u Operating Ambient Temperature: 0 °C to +40 °C

❖ Heavy Material Handling and Gantries: Driving high-inertia linear positioning axes and robotic transfer cars requiring massive peak current injection for heavy starting loads.

❖ Rotary Indexing and Filling Systems: Coordinating rapid start-stop sequences on heavy packaging dials or multi-lane automated liquid filling carousels.

❖ Automated Flying Cutoffs and Webs: Synchronizing rotary shear blades or continuous feed webs in paper, textile, or sheet metal printing lines.
