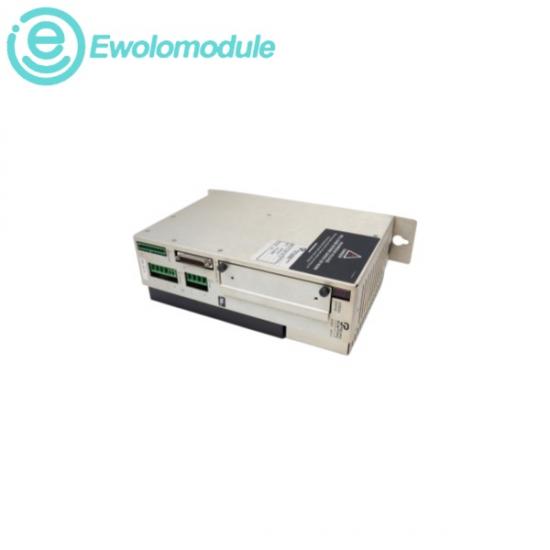

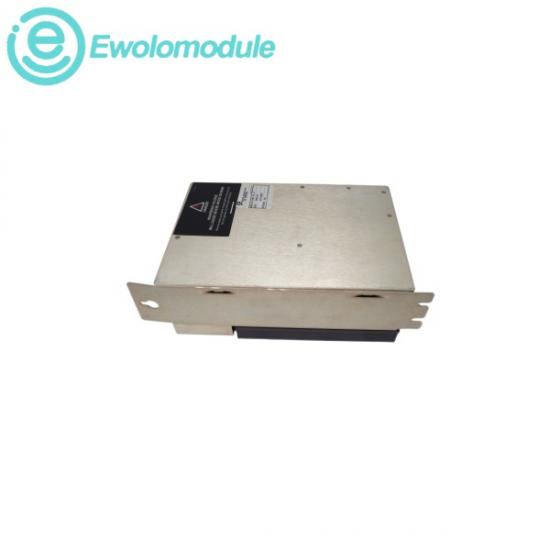

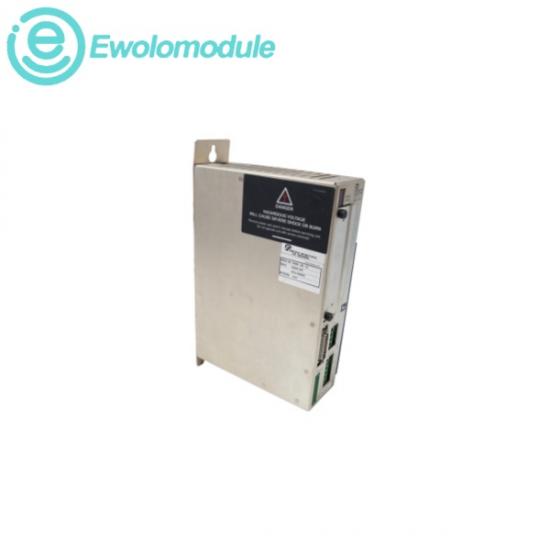

The PACIFIC SCIENTIFIC SC904-001-01 is a high-performance, single-axis digital brushless servo drive engineered to provide precision speed, torque, and position control when paired with resolver-equipped synchronous permanent magnet motors. Operating without a factory option card installed, this base unit uses advanced digital current loops and an inaudible high-frequency IGBT PWM power stage.

u Continuous Output Current: 15.0 A

u Peak Output Current: 30.0 A

u Input Line Voltage: 90 V AC to 264 V AC

u Operating Ambient Temperature: 0 °C to +50 °C

u Motor Feedback Interface: resolver feedback loop

❖ Heavy Conveyor Positioning and Sorting: Managing fast start-stop velocity profiles on assembly conveyor gates where high peak acceleration current is mandatory.

❖ Automated Labeling and Packaging Feeders: Driving automated electronic cam mechanisms to replace high-wear mechanical linkage bars in heavy-duty wrapping lines.

❖ Harsh Environment Machine Automation: Serving as the motor management core in processing environments heavily exposed to thermal cycling and physical vibration, thanks to its rugged resolver tracking.
