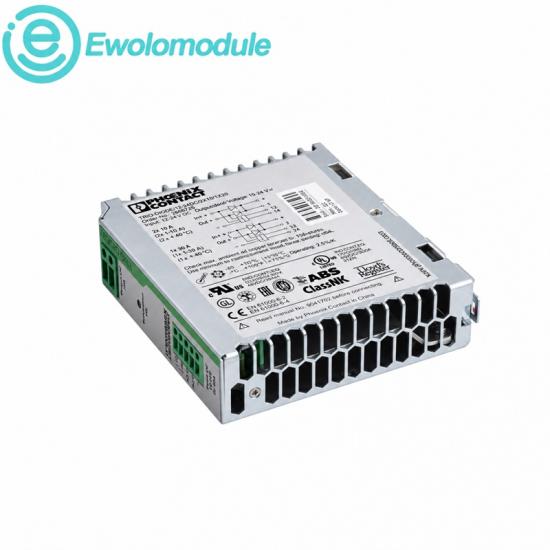

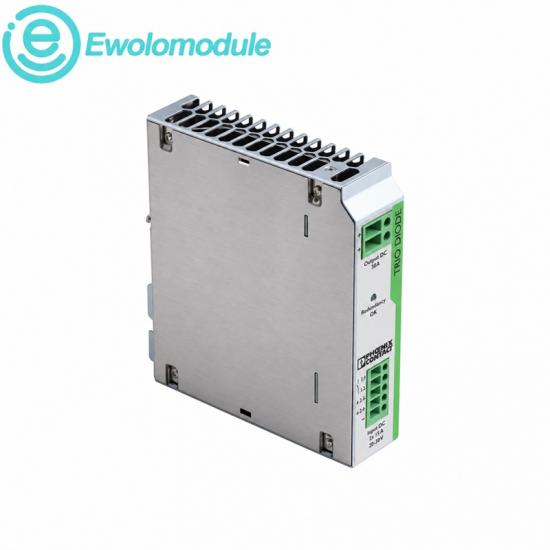

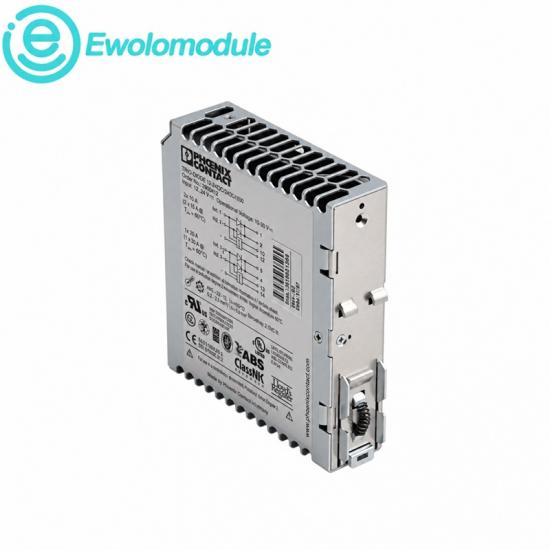

Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 2866514 Redundancy Module

A monitored redundancy module for two 12/24 V DC supply paths at 2×10 A or one path at 20 A.

PRODUCT PROFILE

SERIES

TRIO DIODE

CONTROL ROLE

12/24 V DC redundant power decoupling

CONDITION
New Original

WARRANTY
One year

AVAILABILITY
In stock

Phoenix Contact Products

2866527

2866491

NPB-PWR

02SPECIFICATIONS

Email : sales9@apterpower.com

Official technical data

Product type	Monitored redundancy module	Nominal voltage	12/24 V DC
Input range	10–30 V DC	Nominal current	2×10 A or 1×20 A
Maximum current	2×15 A or 1×30 A	Efficiency	Greater than 97%
Voltage drop	Approximately 0.5 V	Status output	Floating redundancy OK contact

Diagnostic Protection

The redundancy OK contact and front LED identify loss of a supply path. Reverse-polarity protection and transient suppression help protect the circuit; disconnect both sources before maintenance and verify correct polarity before re-energizing.

Configuration & Programming

Connect two separately protected 12 or 24 V DC sources to the input channels and route the common output to the load bus. Check conductor sizing, total current and status-contact logic, then test operation with each source removed in turn.

03BRAND & APPLICATION

Email : sales9@apterpower.com

Brand characteristics

Phoenix Contact power components combine compact DIN-rail construction, clear status indication and coordinated accessories for control-cabinet distribution.

Cabinet efficiency	Slim housings preserve DIN-rail space in power-distribution assemblies.
Status visibility	LED and relay signaling make redundancy health easy to supervise.
Coordinated portfolio	Power supplies and redundancy modules form matched system components.

Application fields

Designed for redundant 12 or 24 V DC control power where uninterrupted supply is important.

Control panels	Decoupling of two industrial DC power supplies.
Process systems	Redundant power for PLC, I/O and instrumentation.
Infrastructure	Reliable low-voltage distribution for communication equipment.
