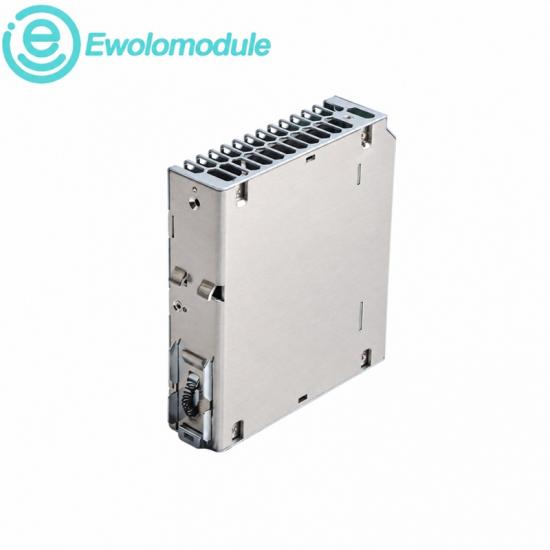

Phoenix Contact TRIO-DIODE/48DC/2X10/1X20 2866527 Redundancy Module

A monitored redundancy module for decoupling two 48 V DC supply paths at 2×10 A or one path at 20 A.

PRODUCT PROFILE

SERIES

TRIO DIODE

CONTROL ROLE

48 V DC redundant power decoupling

CONDITION
New Original

WARRANTY
One year

AVAILABILITY
In stock

Phoenix Contact Products

2866514

2866491

NPB-PWR

02SPECIFICATIONS

Email : sales9@apterpower.com

Official technical data

Product type	Monitored redundancy module	Nominal voltage	48 V DC
Input range	30–56 V DC	Nominal current	2×10 A or 1×20 A
Maximum current	2×15 A or 1×30 A	Efficiency	Greater than 97%
Voltage drop	Approximately 0.65 V	Status output	Floating redundancy OK contact

Diagnostic Protection

The redundancy OK contact and front LED indicate whether both supply paths are available. Reverse-polarity protection and a varistor help protect the module; isolate both feeds before service and correct wiring or source faults before restoring redundancy.

Configuration & Programming

Feed the two input channels from independently protected DC sources, observe polarity and connect the common output to the load distribution. Verify conductor capacity, current sharing and the redundancy OK signal under normal and single-source operation.

03BRAND & APPLICATION

Email : sales9@apterpower.com

Brand characteristics

Phoenix Contact power components combine compact DIN-rail construction, clear status indication and coordinated accessories for control-cabinet distribution.

Cabinet efficiency	Slim housings preserve DIN-rail space in power-distribution assemblies.
Status visibility	LED and relay signaling make redundancy health easy to supervise.
Coordinated portfolio	Power supplies and redundancy modules form matched system components.

Application fields

Intended for high-availability 48 V DC control power where one supply path must remain available after a source fault.

Redundant panels	Decoupling of parallel industrial DC power supplies.
Process systems	Protected control power for continuous-operation equipment.
Infrastructure	Reliable 48 V distribution for network and automation loads.
